ASCD Steering Switch

WARNING: This page is about a different variant/trim than selected.

ASCD steering switch has various values of electrical resistance for each button. HPCM reads voltage variation of switch, and determines which button is operated.

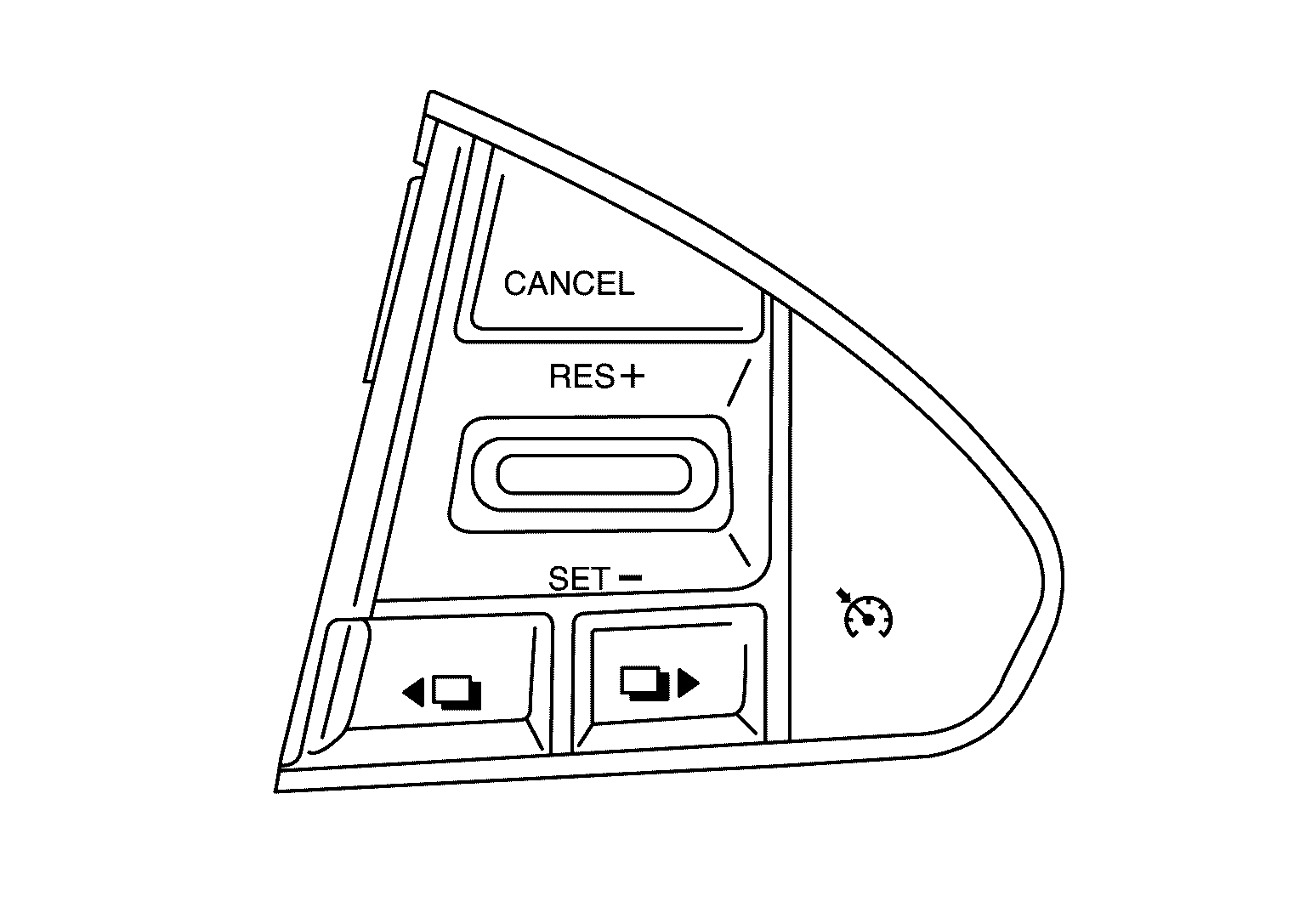

G09166289Courtesy of NISSAN NORTH AMERICA, INC.
