Component Parts Location

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

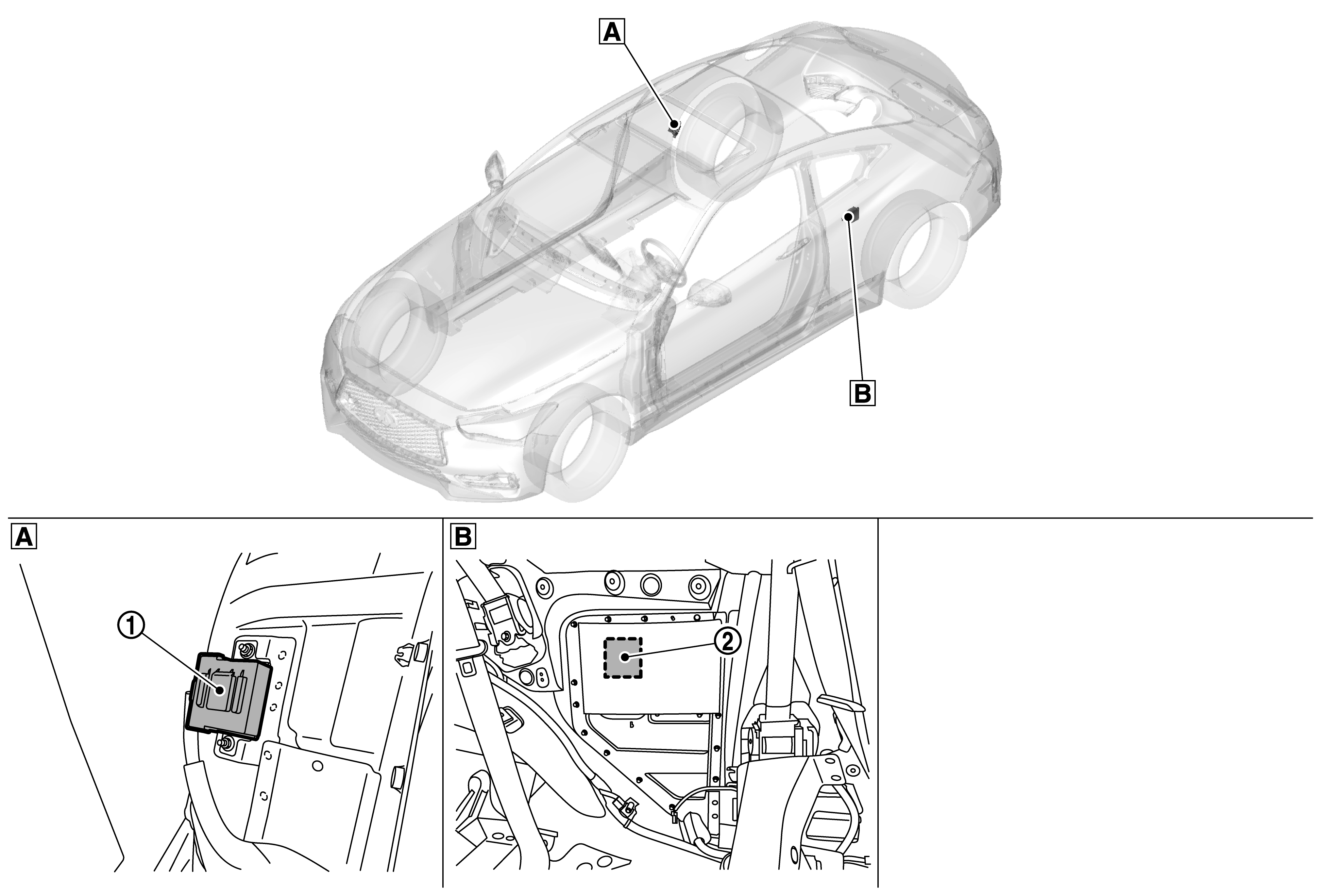

GNSJSOIA2540Z-540Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Rear pillar inner reinforcement RH removed condition

SYMBOL

Rear pillar inner reinforcement LH removed condition

No.

Component

Description

SYMBOL

ADAS control unit 2
  • Controls each system, based on CAN communication (via ADAS control unit), ITS communication, and chassis communication signals received from each control unit
  • Transmits signals necessary for control between CAN communication (via ADAS control unit), ITS communication, and Chassis communication

SYMBOL

ADAS control unit
  • Controls each system, based on CAN communication, ITS communication, and chassis communication signals received from each control unit
  • Transmits signals necessary for control between CAN communication, ITS communication, and Chassis communication
