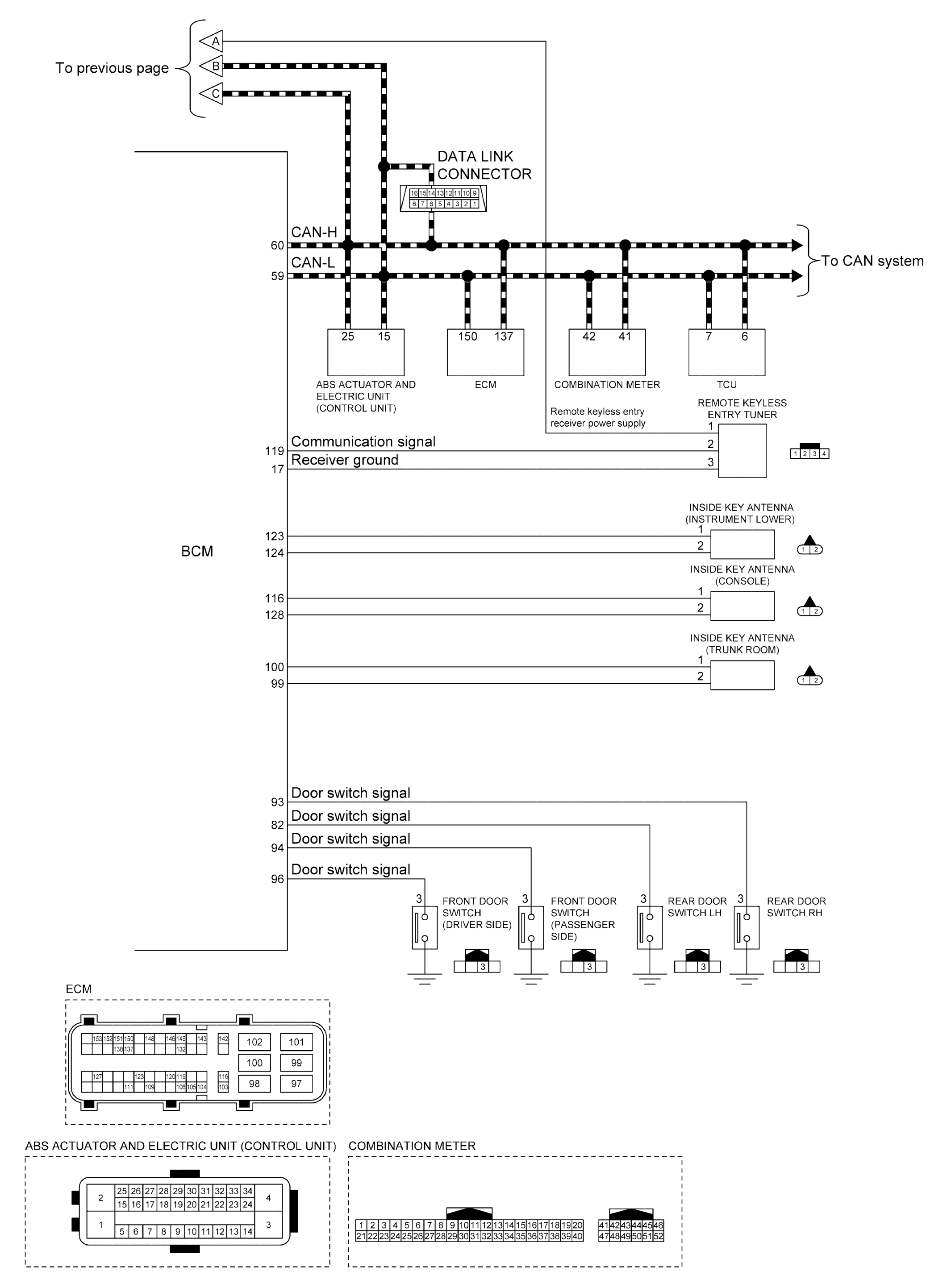

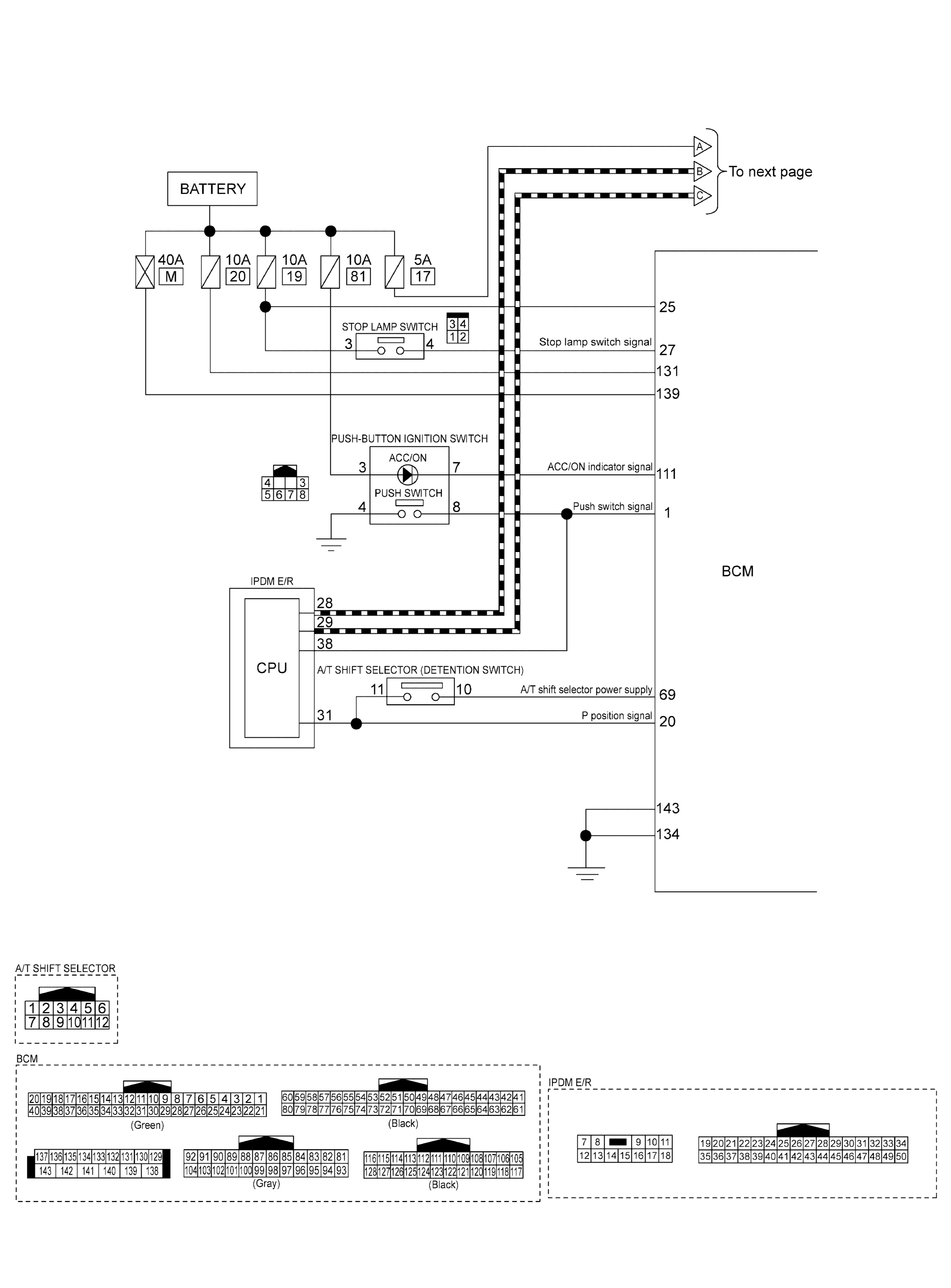

Home >> Infiniti >> 2016 >> Q50 Base, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Anti-Theft Systems >> Security Control System (Except Hybrid) >> System Description >> System >> Intelligent Key System/Engine Start Function >> Circuit Diagram >> For 2.0L Turbo Gasoline Engine Models
