Snow Mode/Tow Mode/Vdc Off Switch Assembly Connector End View (M147)

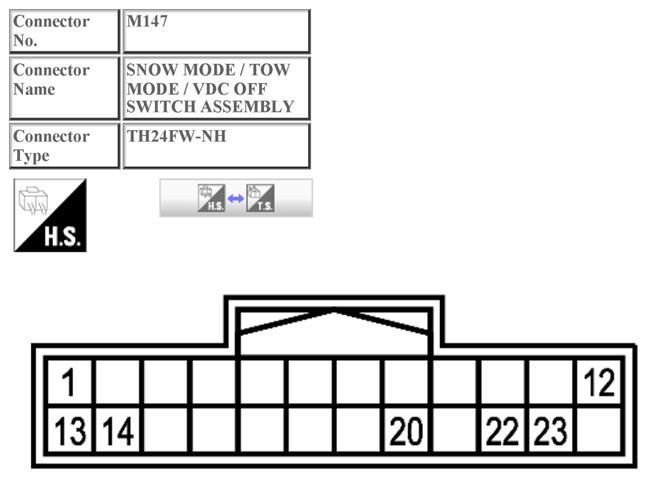

Fig 1: Snow Mode/Tow Mode/Vdc Off Switch Assembly Connector End View (M147)

G10439103

Courtesy of NISSAN NORTH AMERICA, INC.
