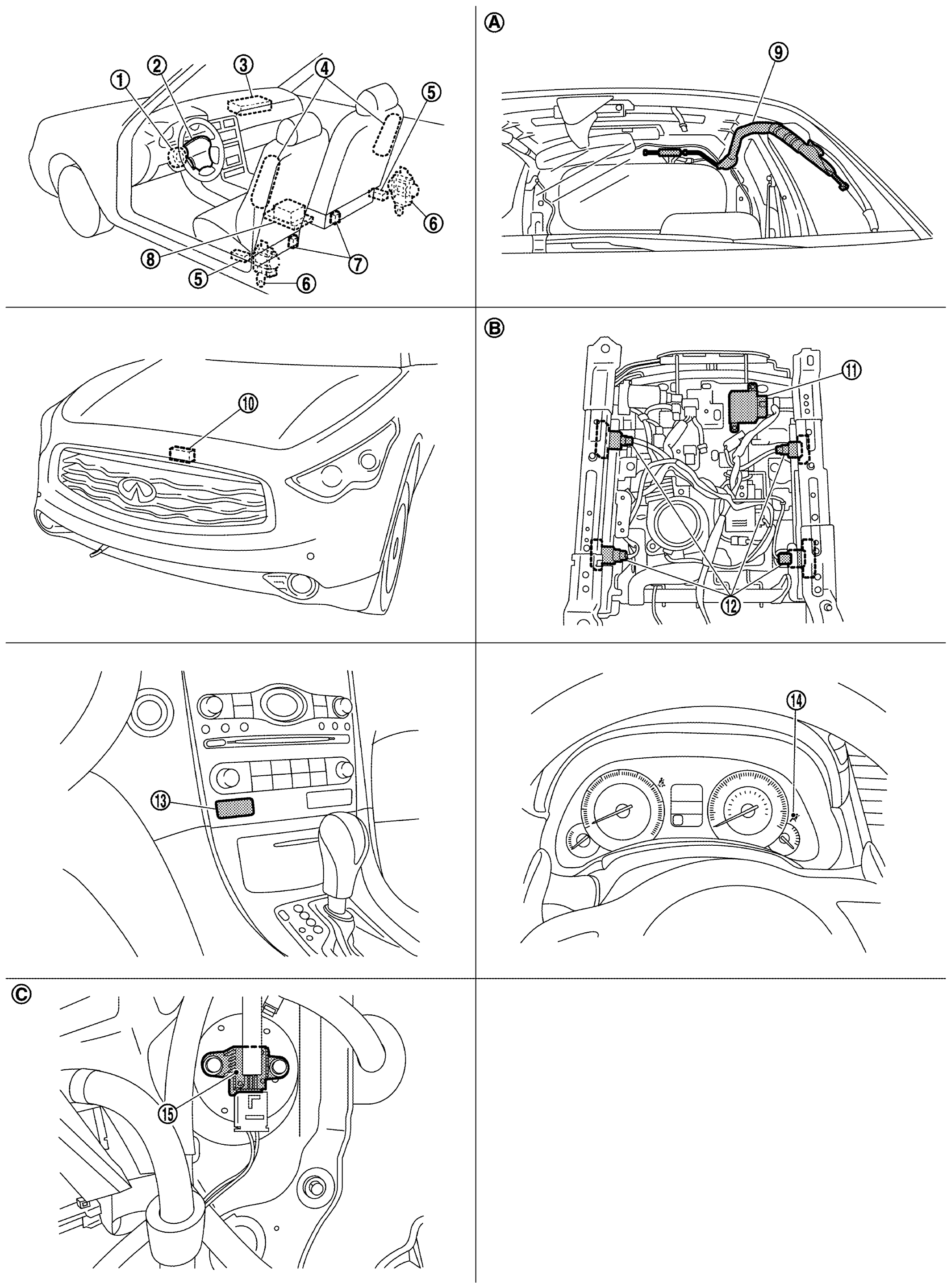

| 1. |
Combination Switch (Spiral Cable) |
2. |
Driver Air Bag Module |
3. |
Front Passenger Air Bag Module |
| 4. |
Front LH/RH Side Air Bag Module |
5. |
LH/RH Satellite Sensor |
6. |
Front LH/RH Seat Belt Pre-Tensioner |
| 7. |
Seat Belt Buckle Switch (Driver Side/Passenger Side) |
8. |
Air Bag Diagnosis Sensor Unit |
9. |
LH/RH Side Curtain Air Bag Module |
| 10. |
Crash Zone Sensor |
11. |
Occupant Detection System Control Unit |
12. |
Occupant Detection System Seat Sensor |
| 13. |
Front Passenger Air Bag OFF Indicator |
14. |
Combination Meter (Air Bag Warning Lamp) |
15. |
Front LH/RH Door Satellite Sensor |
| A. |
View From Vehicle Front |
B. |
Backside Of The Seat Cushion |
C. |
View With Door Finisher Removed |
