Wiring Diagram - PDS (Power Distribution System)

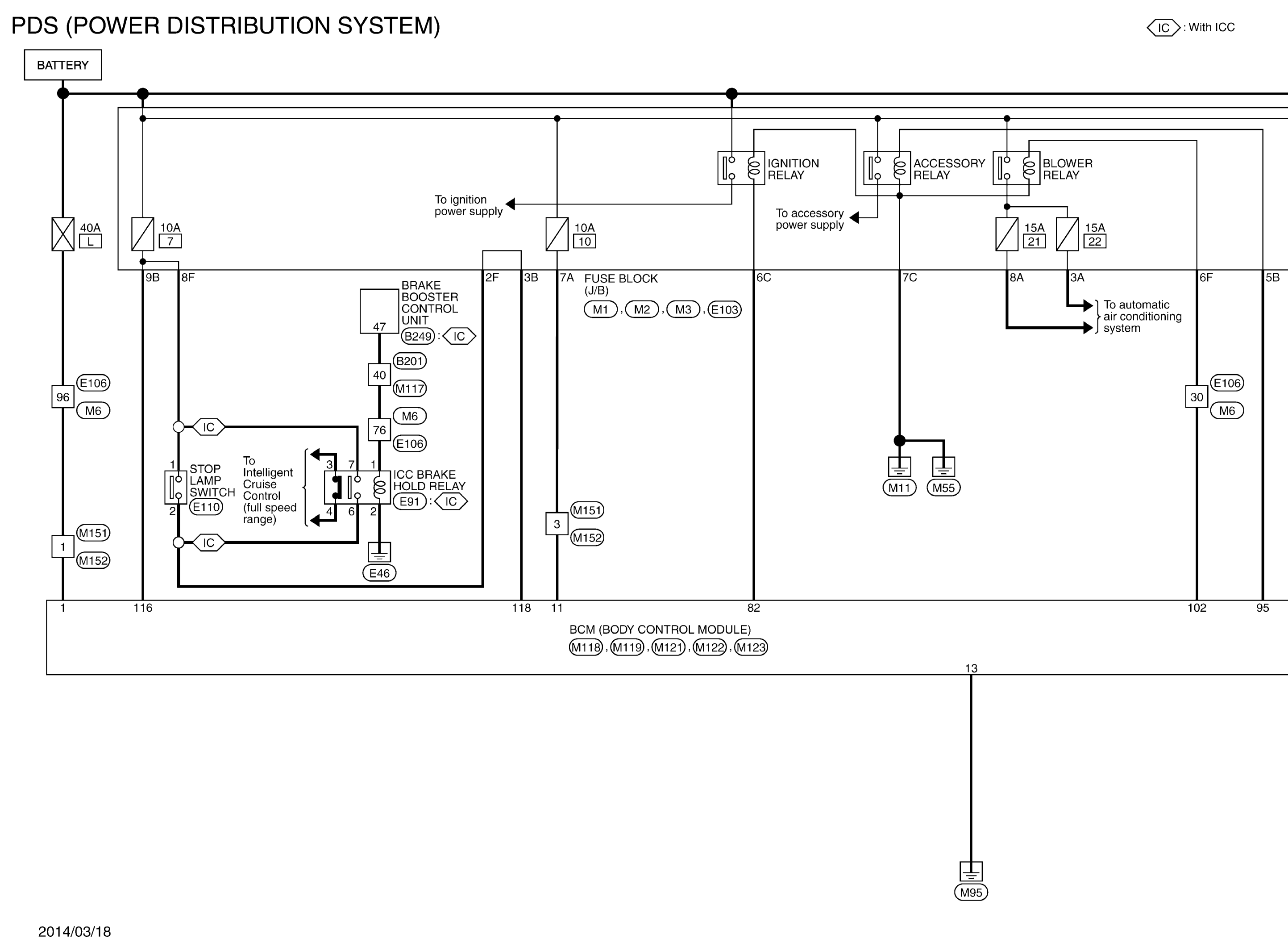

Fig 1: PDS (Power Distribution System) Wiring Diagram (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

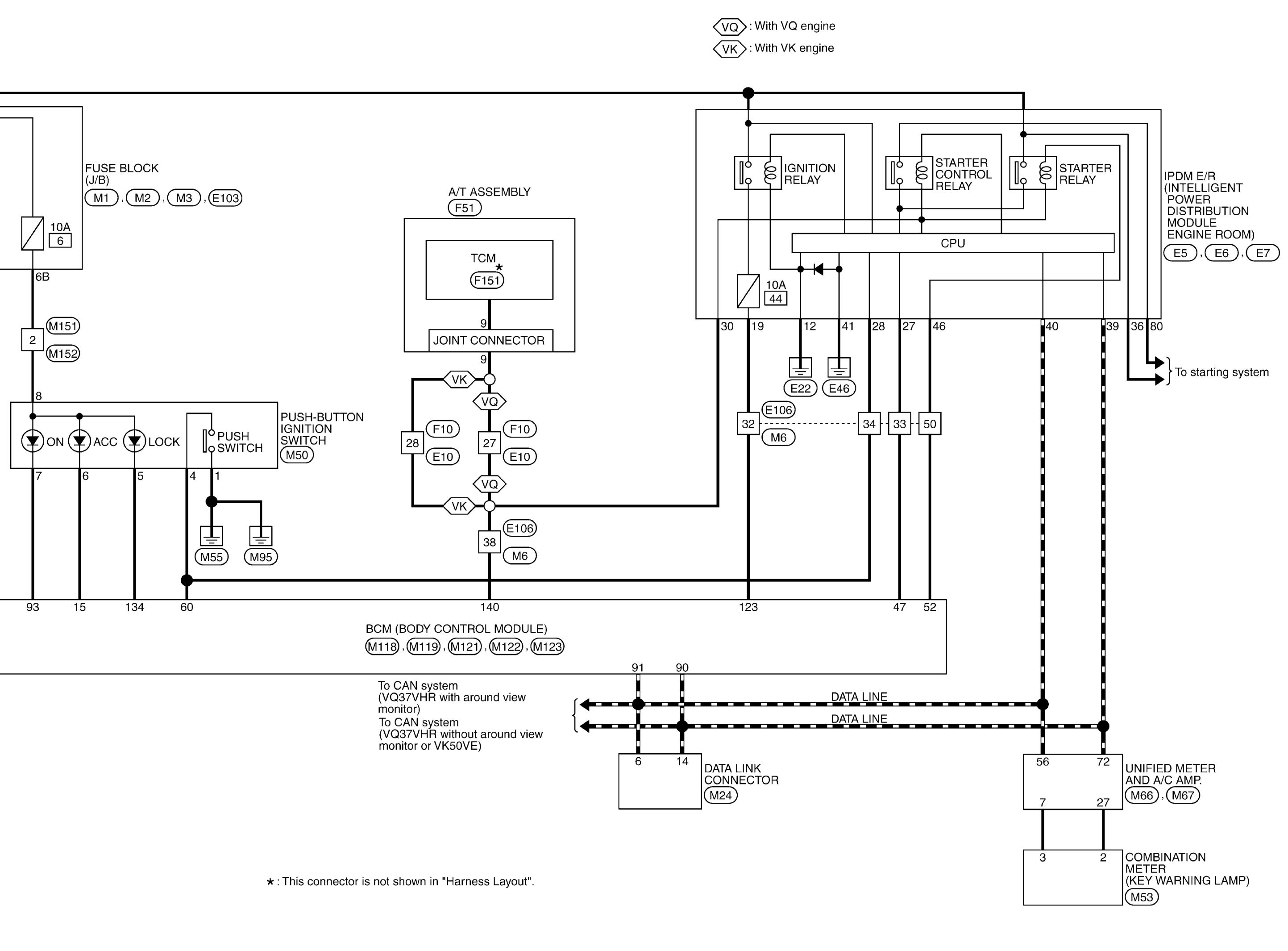

Fig 2: PDS (Power Distribution System) Wiring Diagram (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

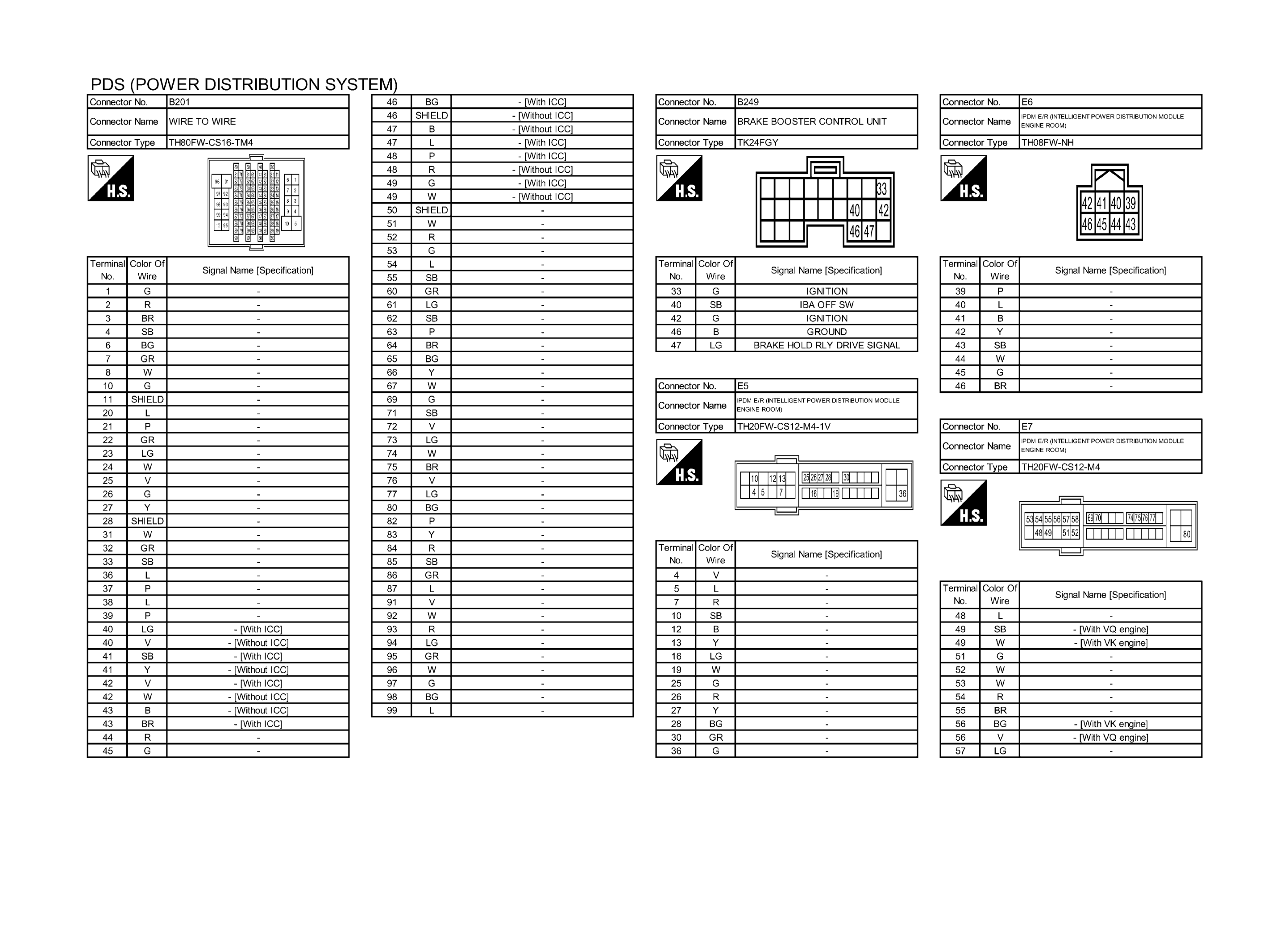

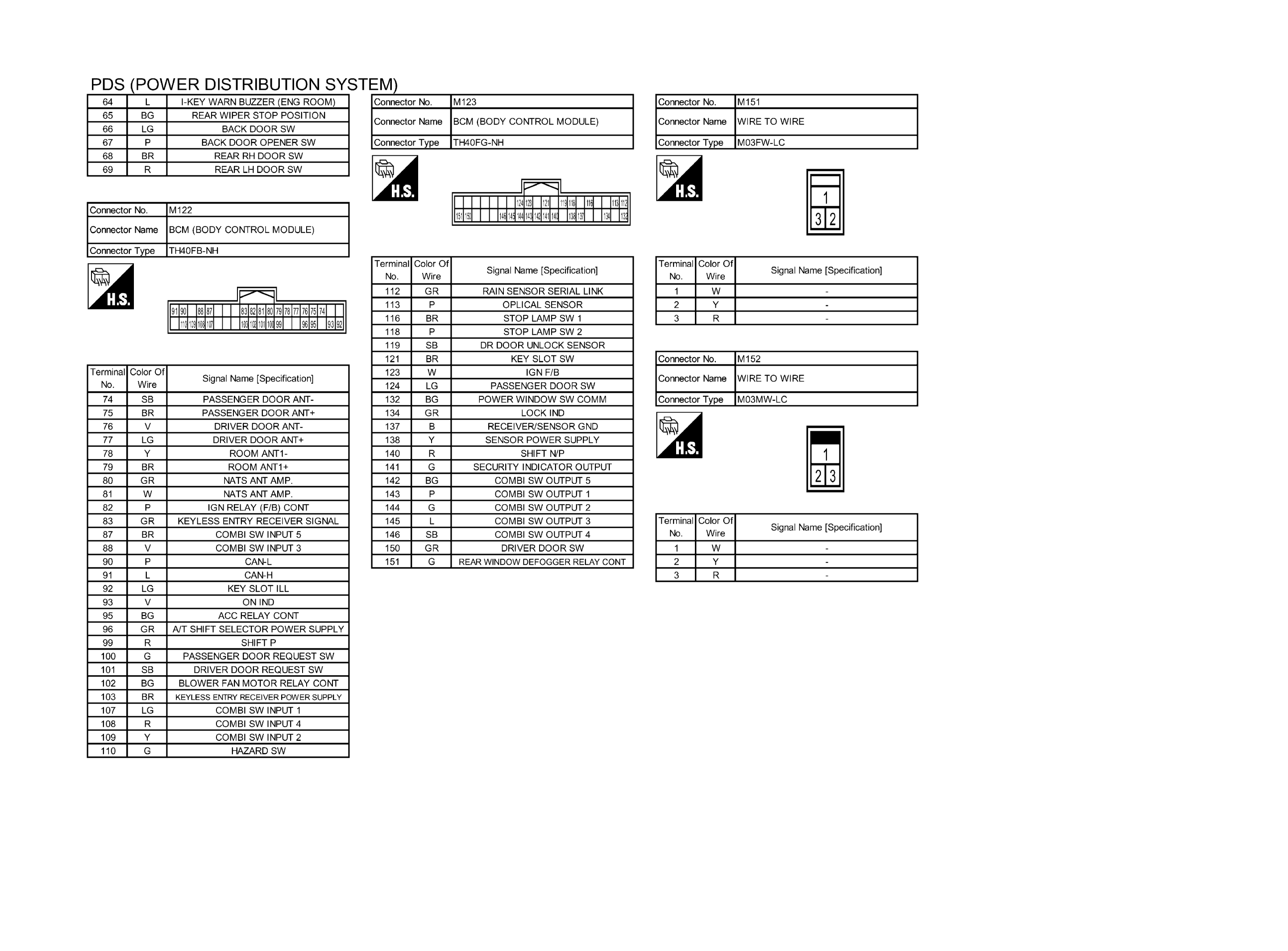

Fig 3: PDS (Power Distribution System) Connector End Views (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

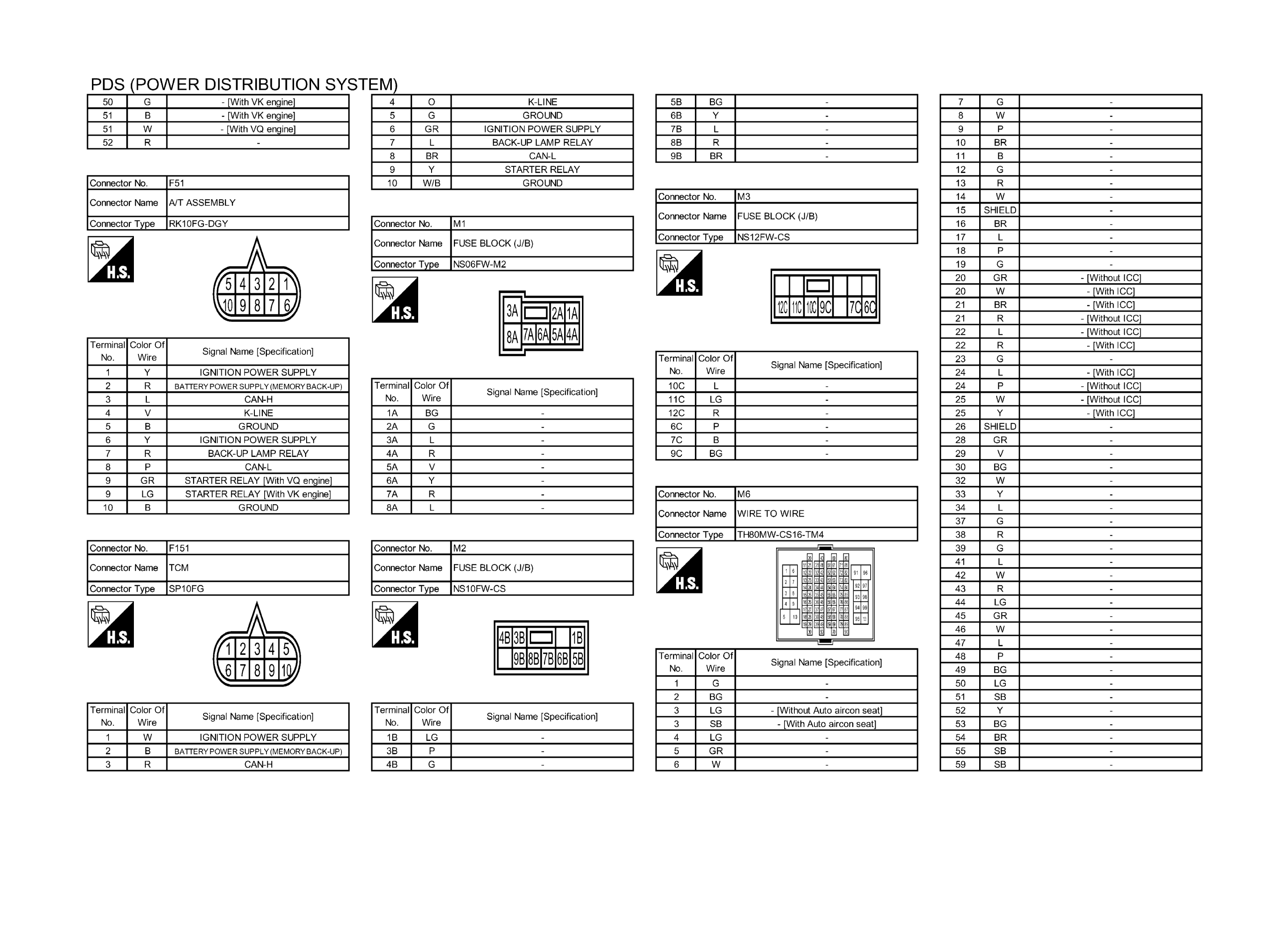

Fig 4: PDS (Power Distribution System) Connector End Views (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

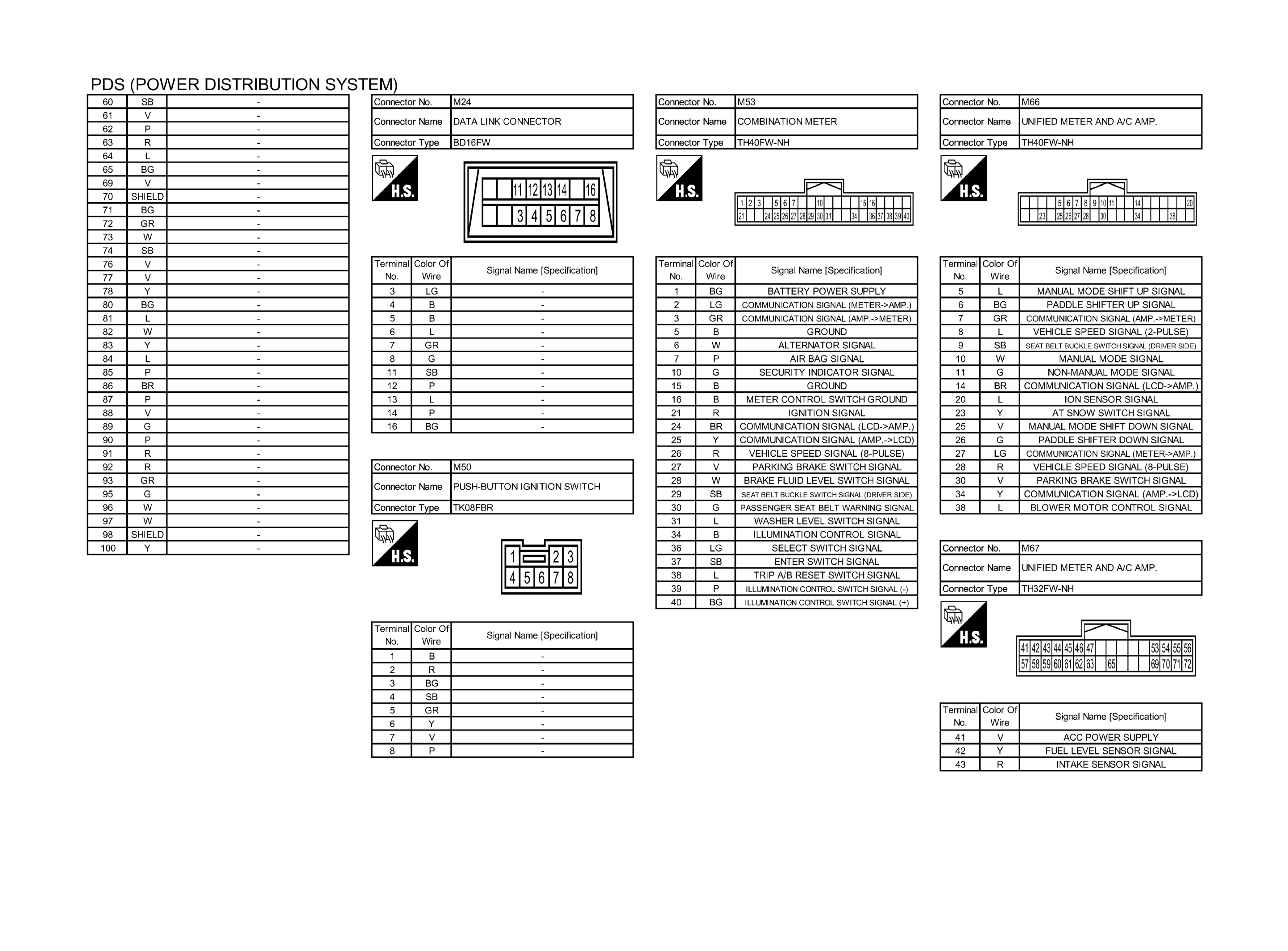

Fig 5: PDS (Power Distribution System) Connector End Views (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

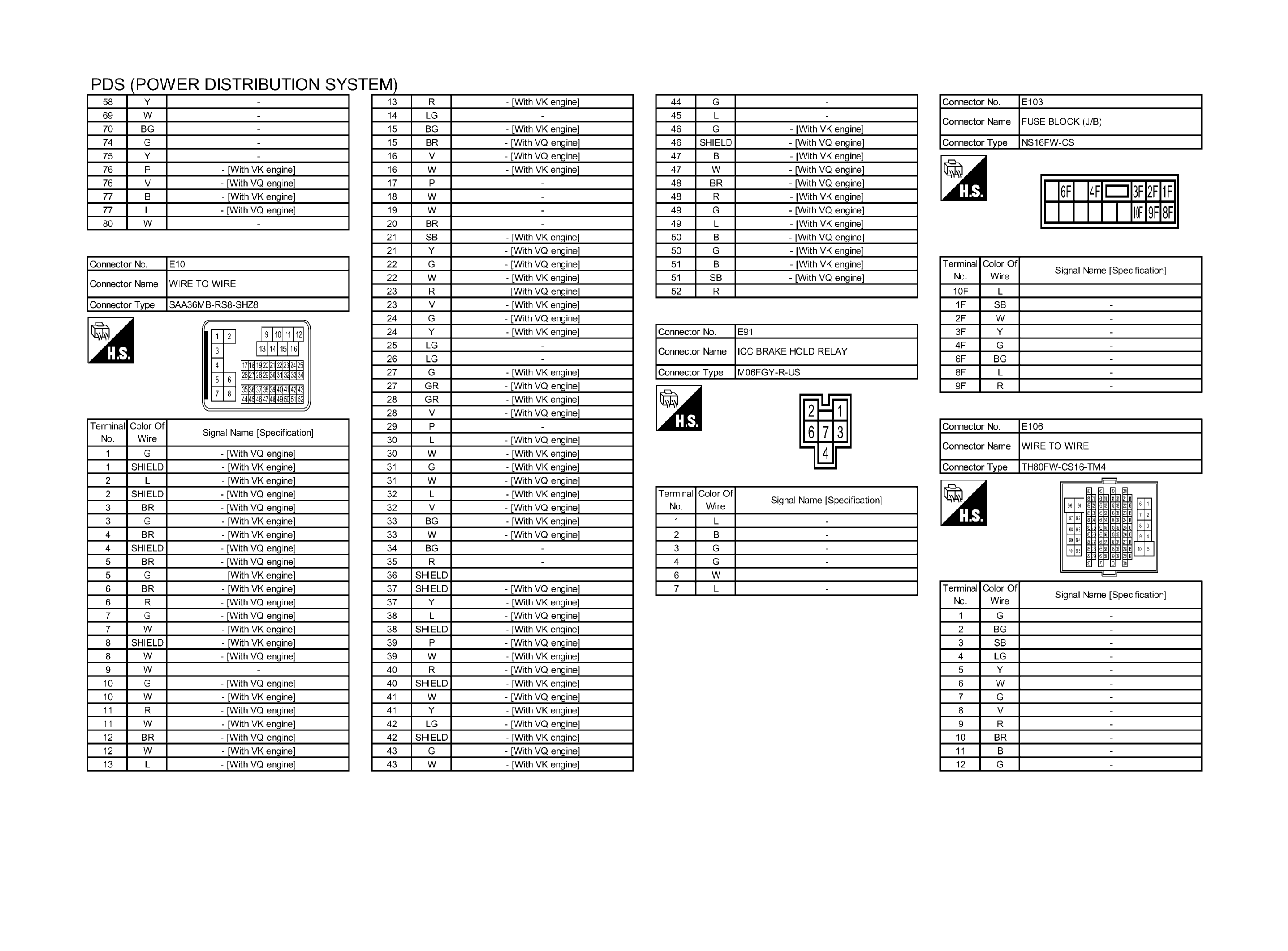

Fig 6: PDS (Power Distribution System) Connector End Views (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

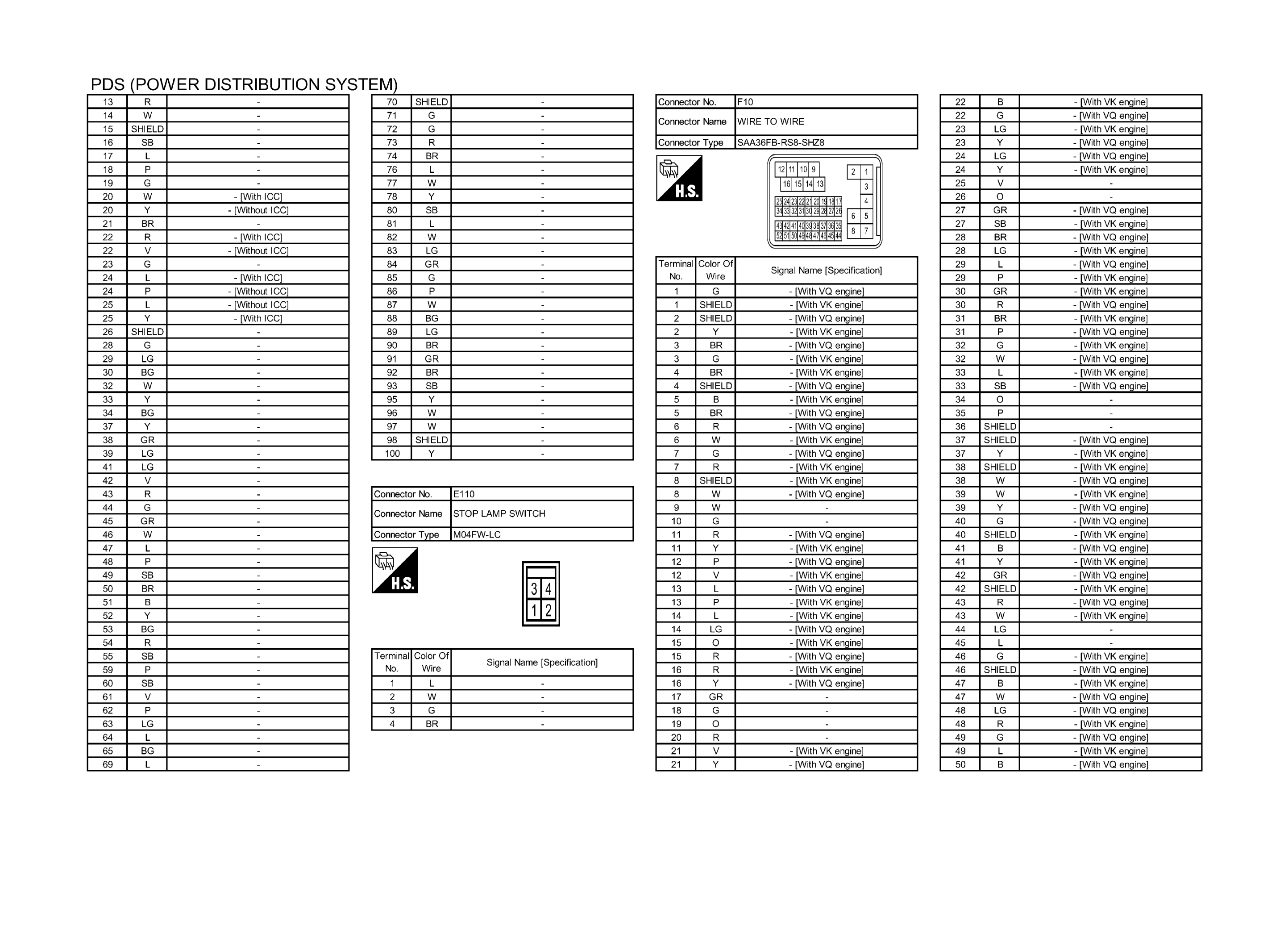

Fig 7: PDS (Power Distribution System) Connector End Views (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

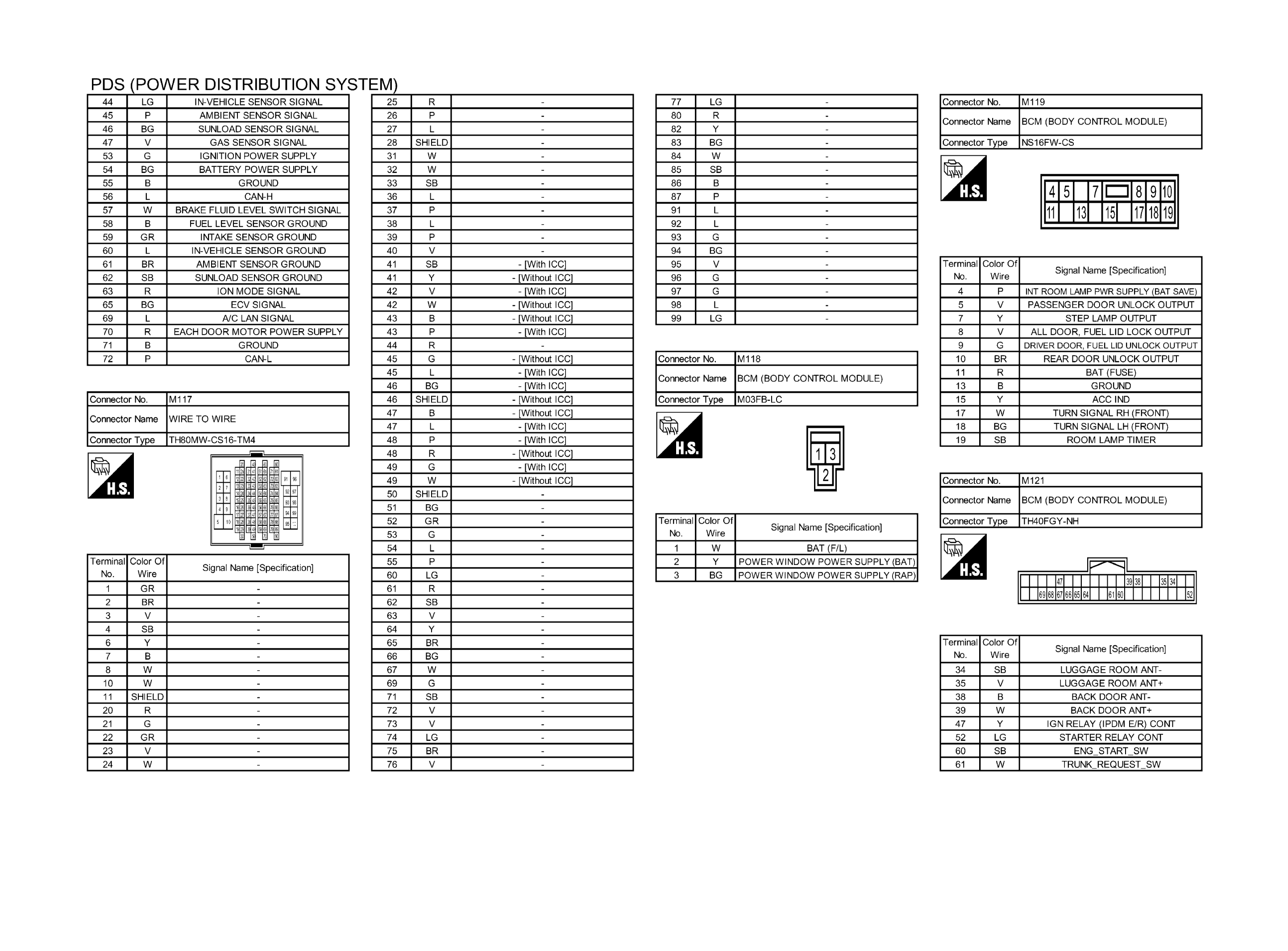

Fig 8: PDS (Power Distribution System) Connector End Views (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: PDS (Power Distribution System) Connector End Views (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
