Wiring Diagram - Power Window Control System -

Fig 1: Power Window Control System Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

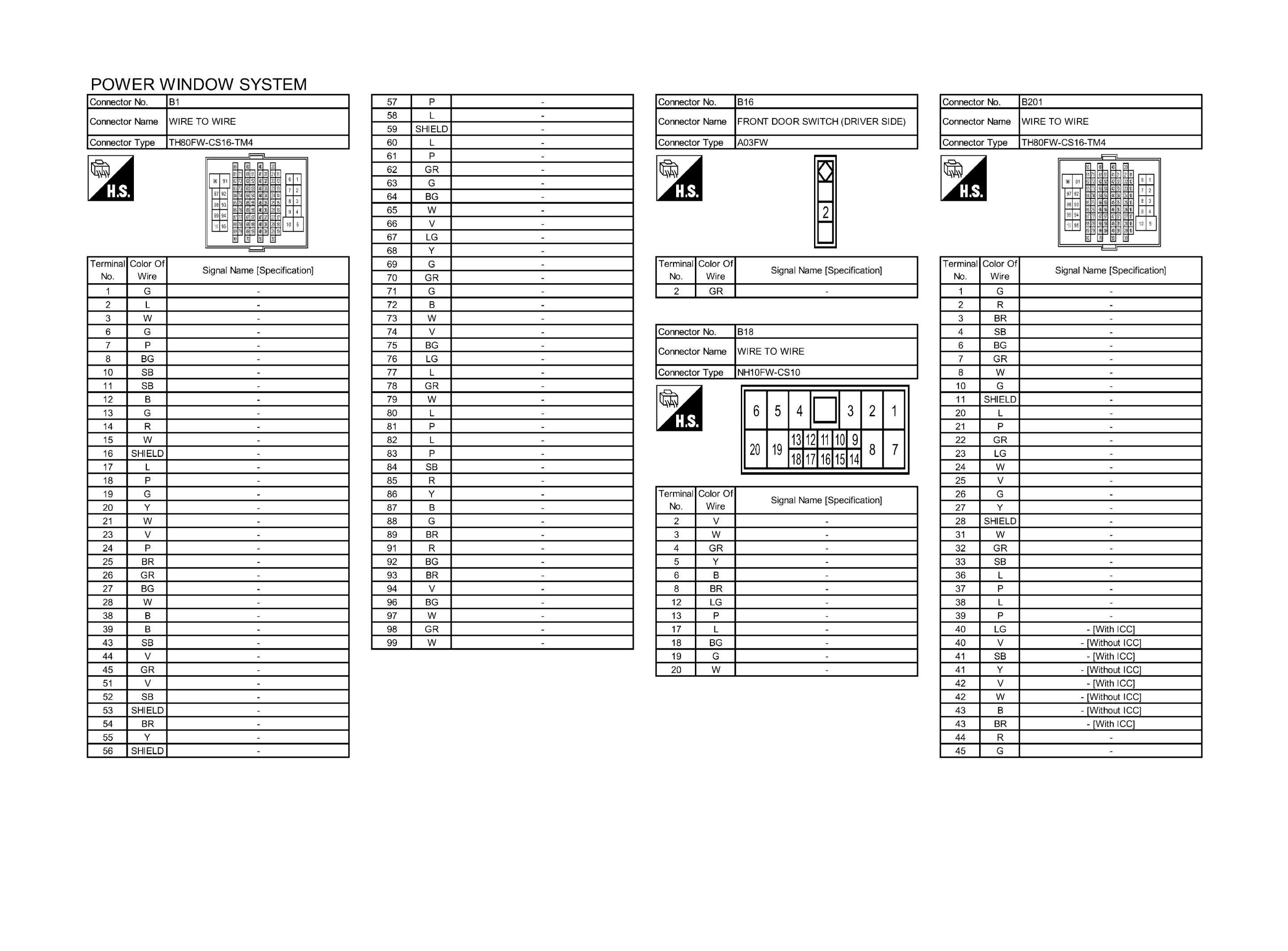

Fig 2: Power Window Control System Connector End Views (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

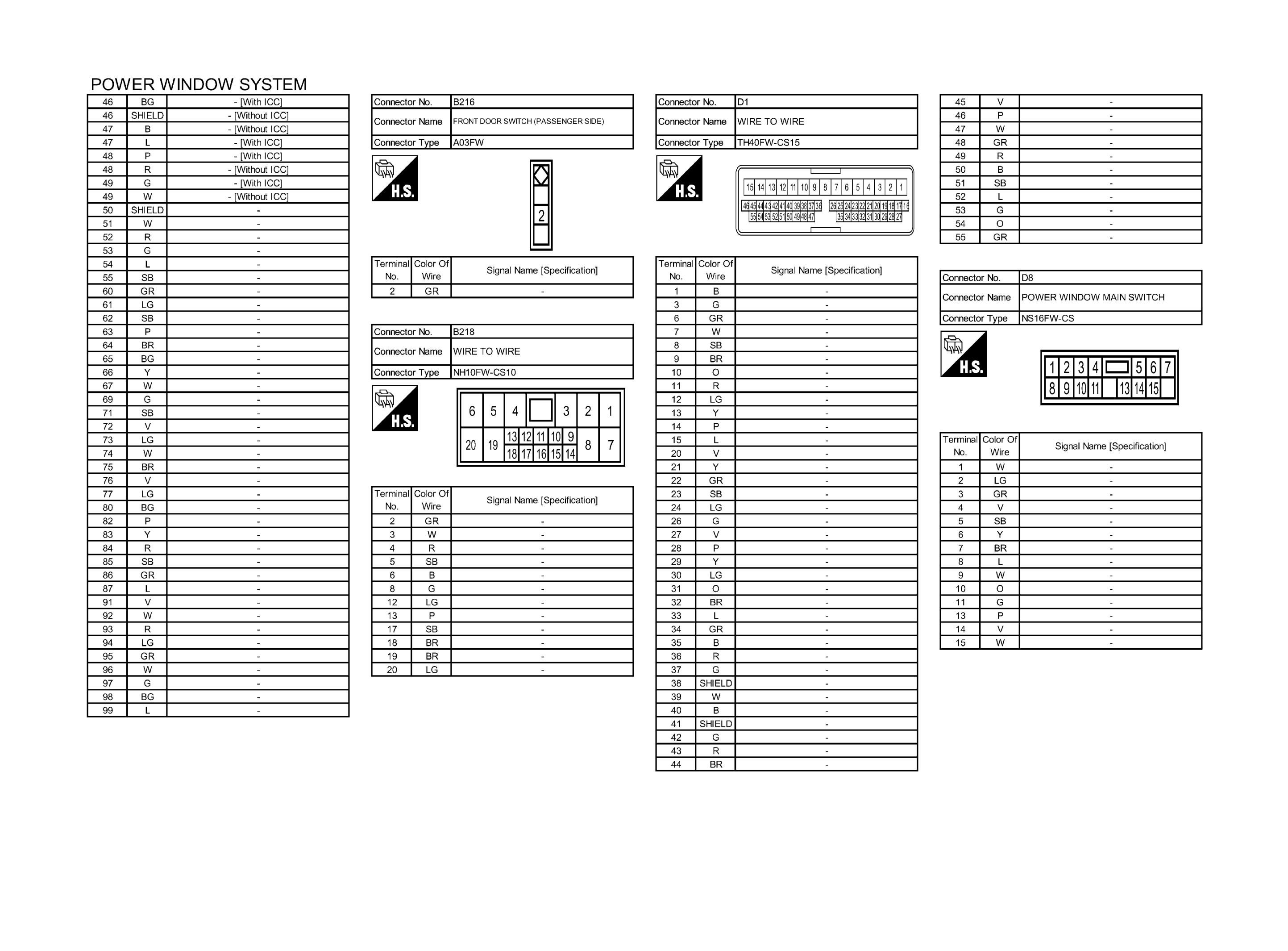

Fig 3: Power Window Control System Connector End Views (2 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

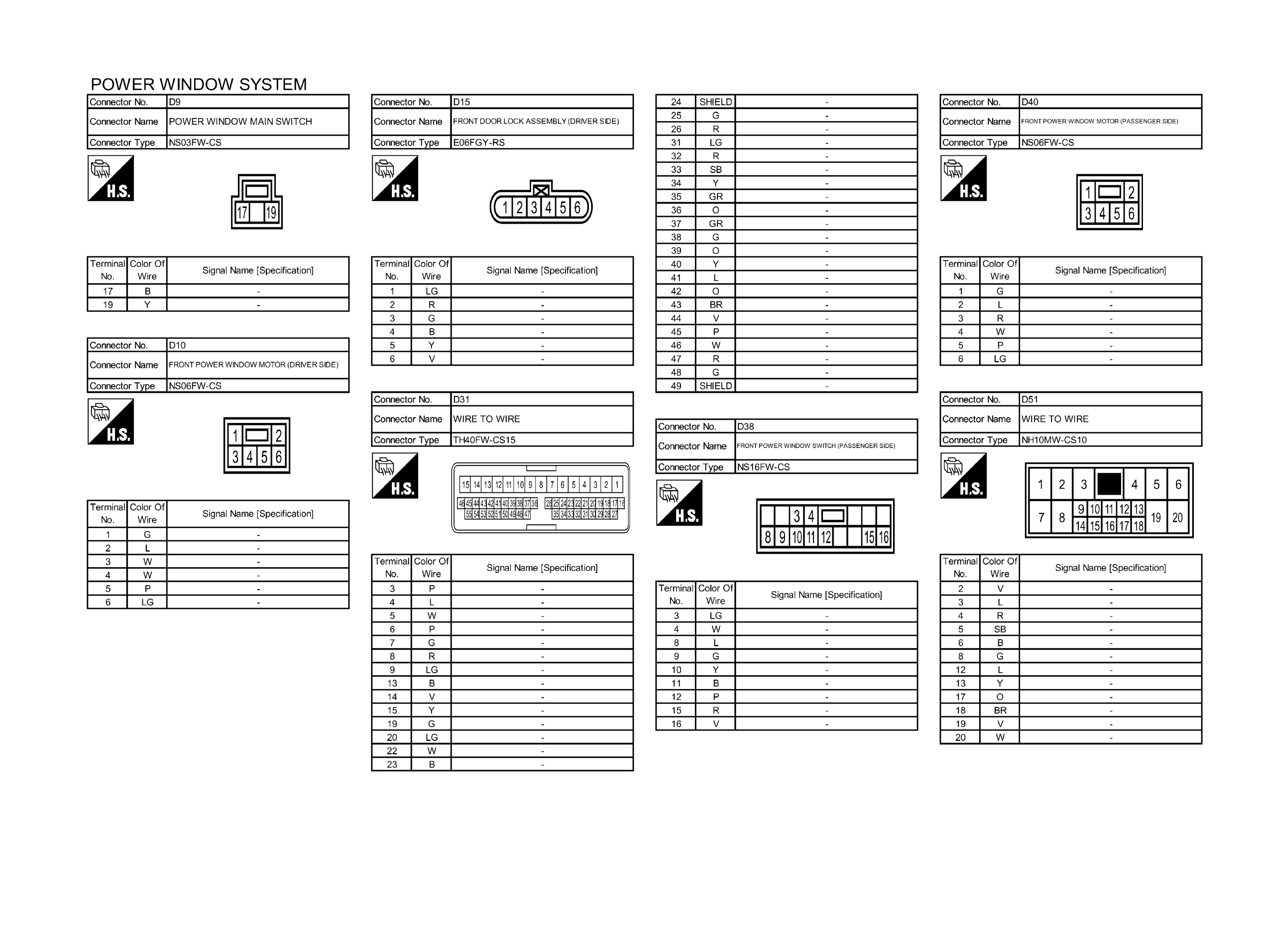

Fig 4: Power Window Control System Connector End Views (3 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

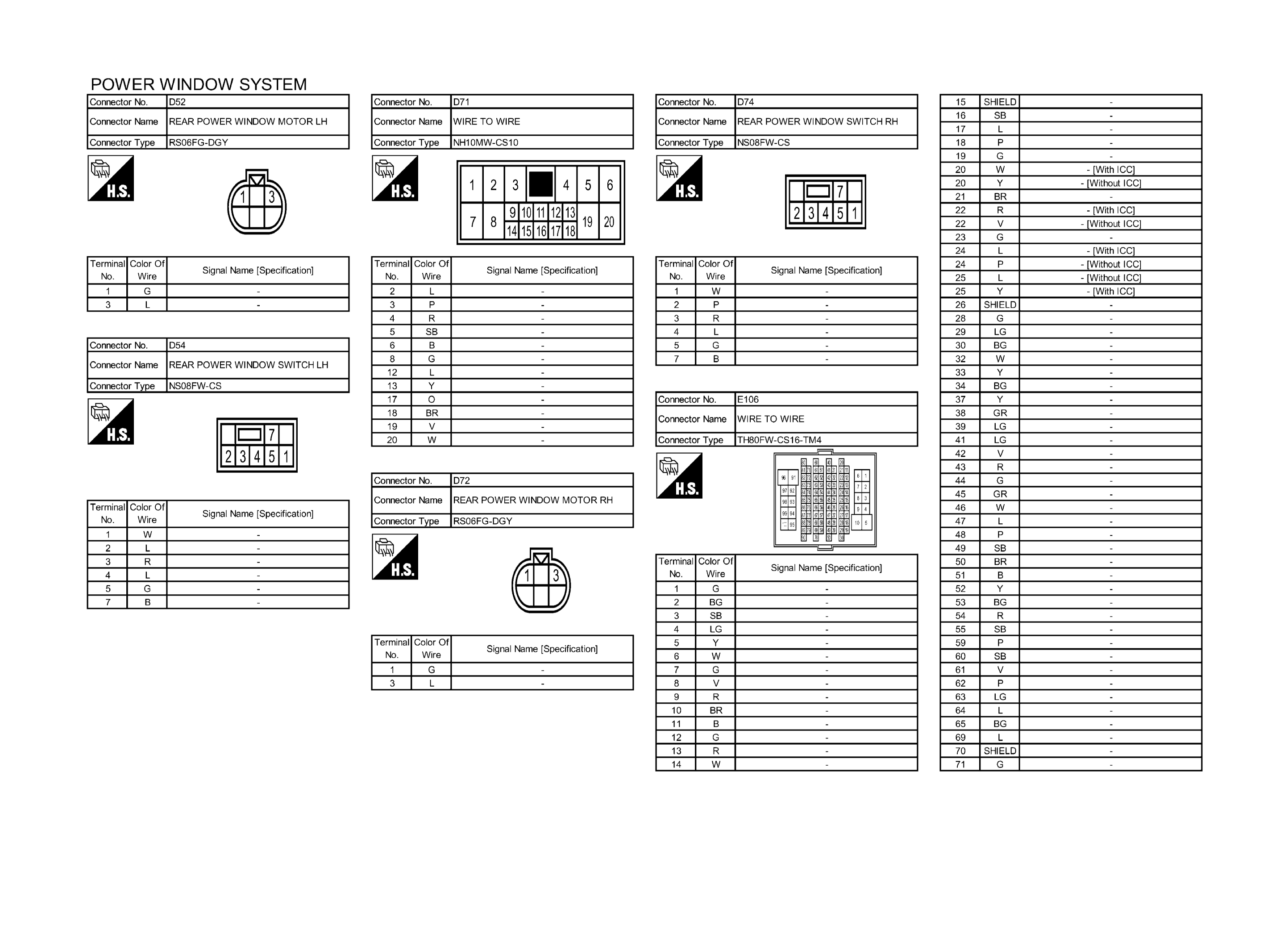

Fig 5: Power Window Control System Connector End Views (4 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

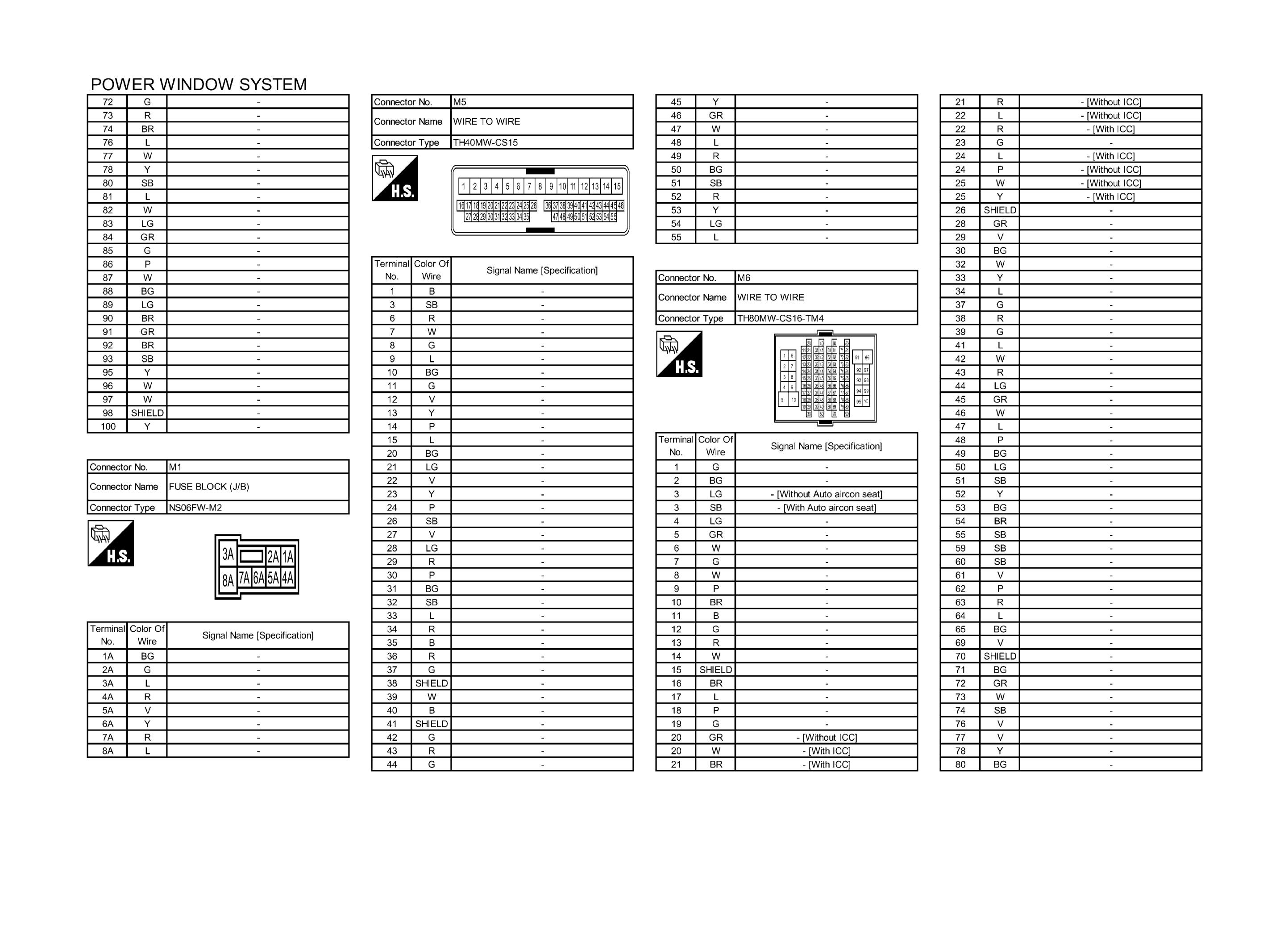

Fig 6: Power Window Control System Connector End Views (5 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

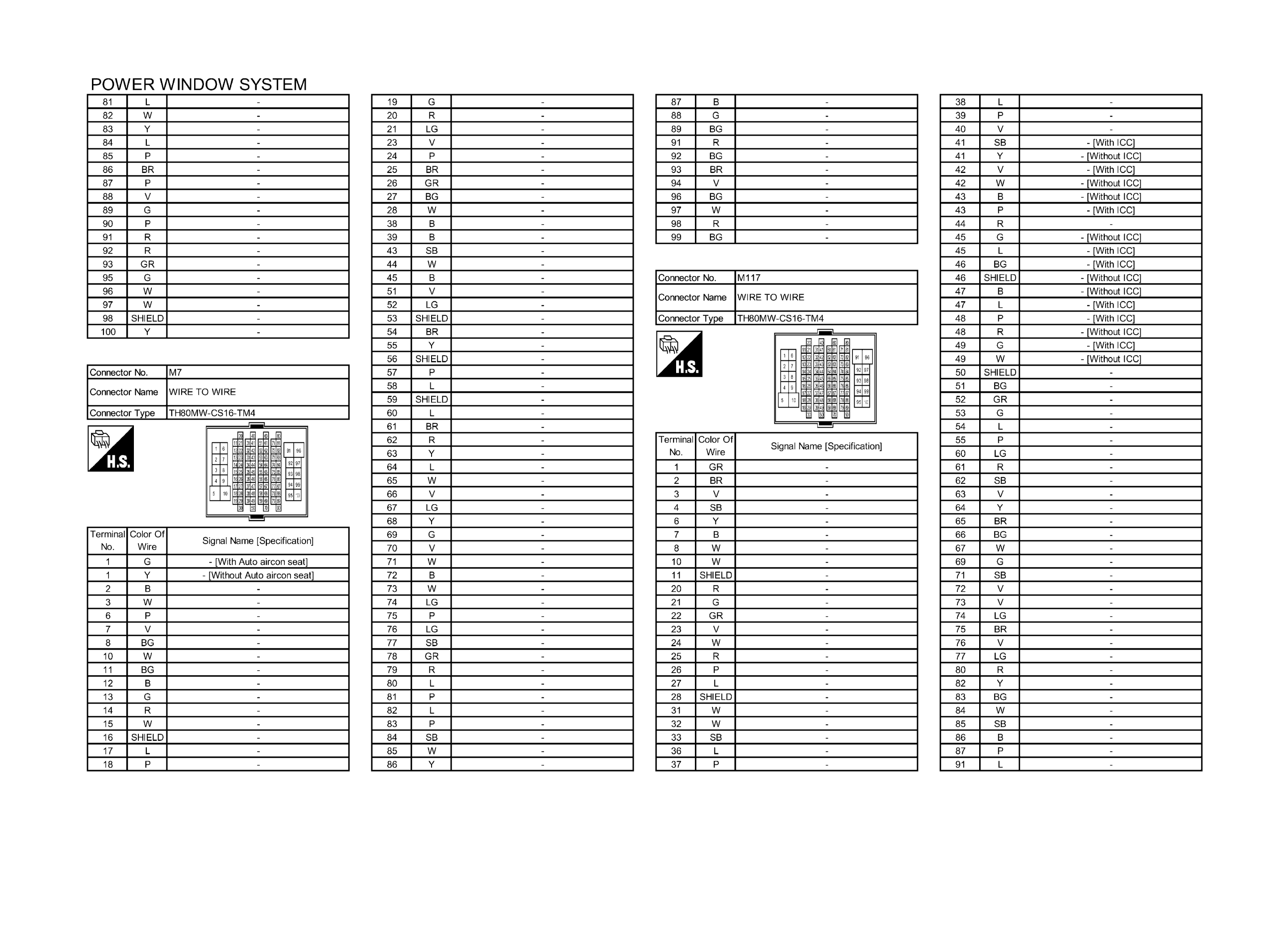

Fig 7: Power Window Control System Connector End Views (6 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

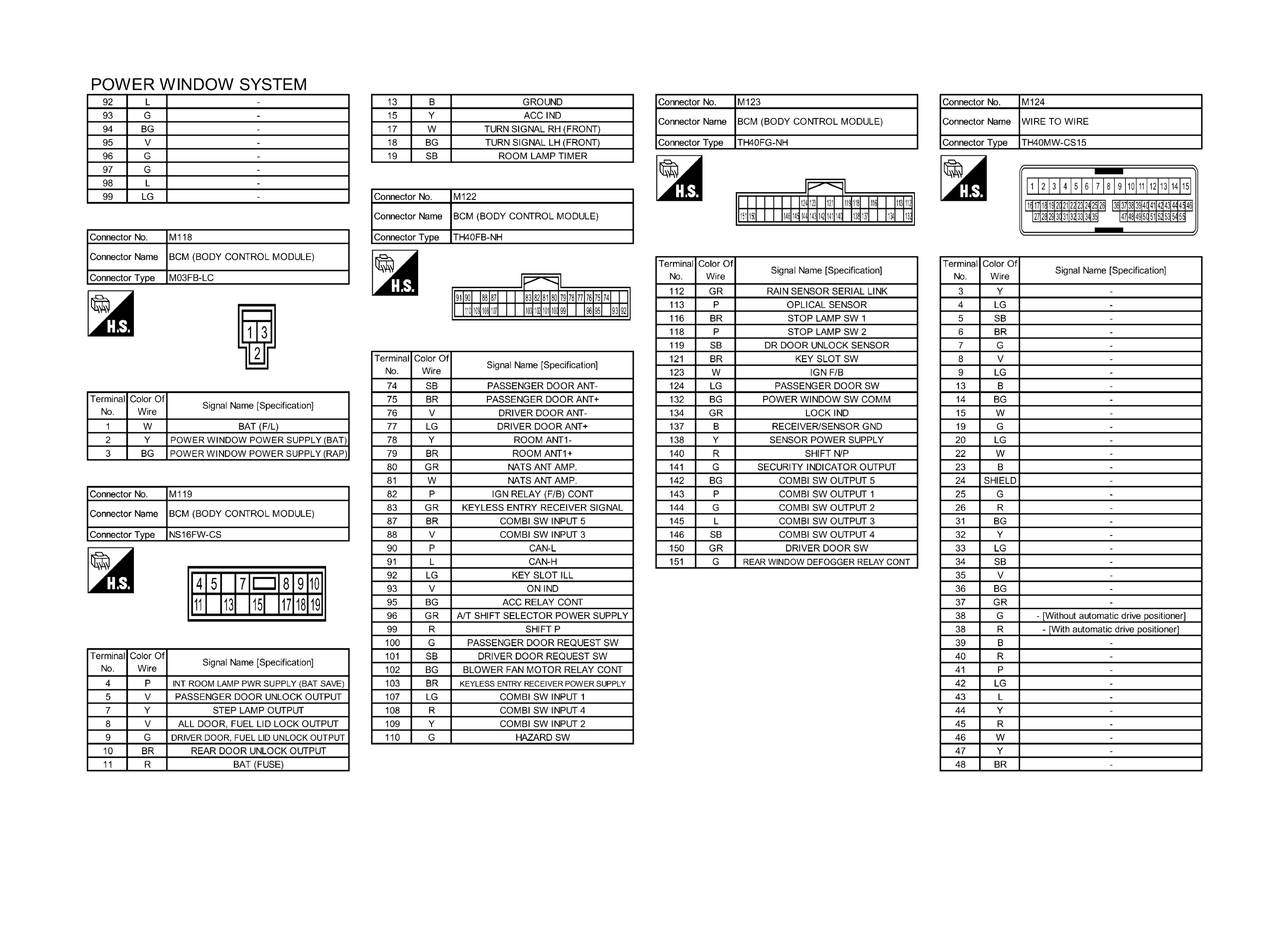

Fig 8: Power Window Control System Connector End Views (7 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

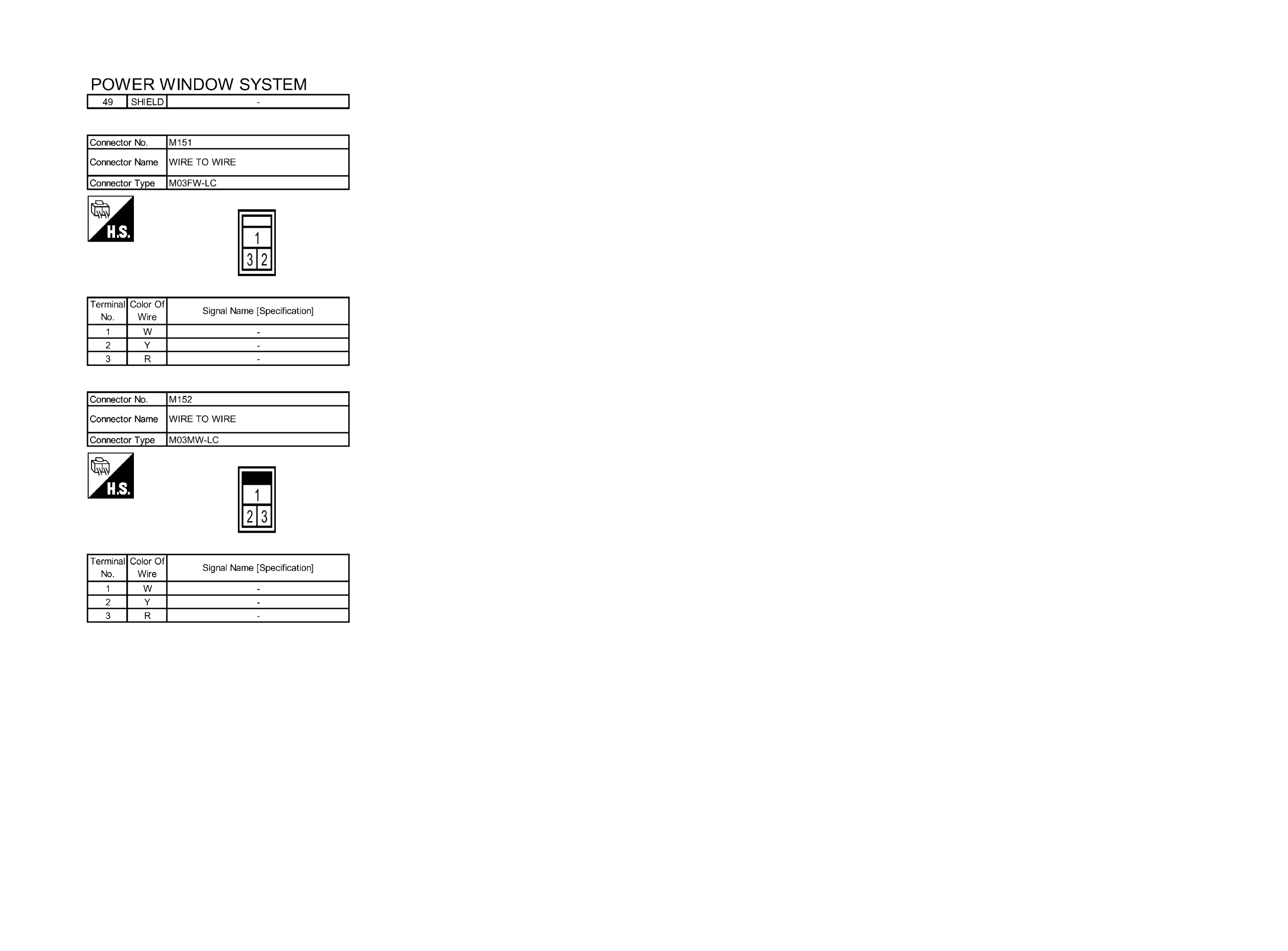

Fig 9: Power Window Control System Connector End Views (8 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.
