SRS Air Bag Control System Connector End Views

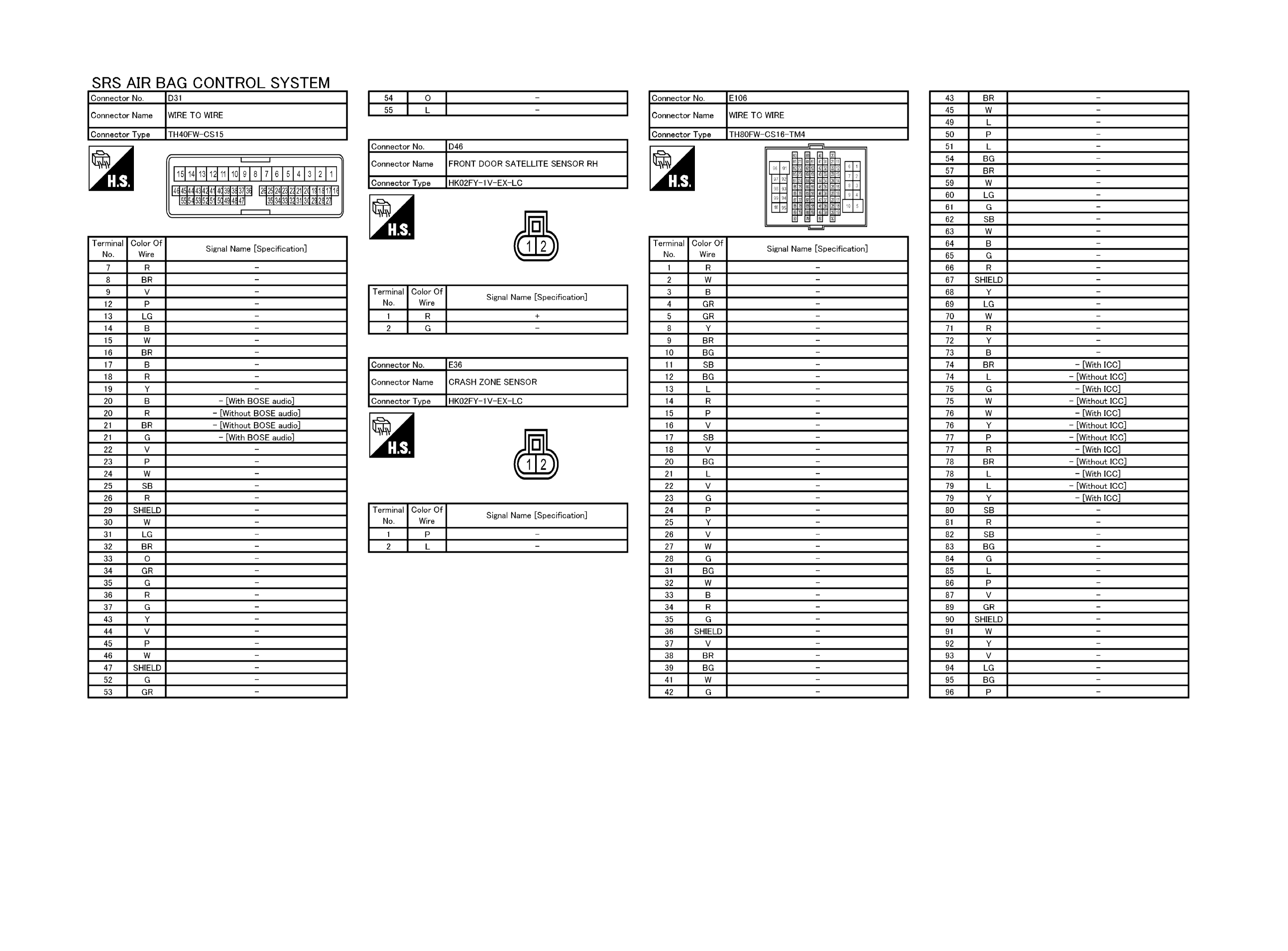

Fig 1: SRS Air Bag Control System Connector End Views (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

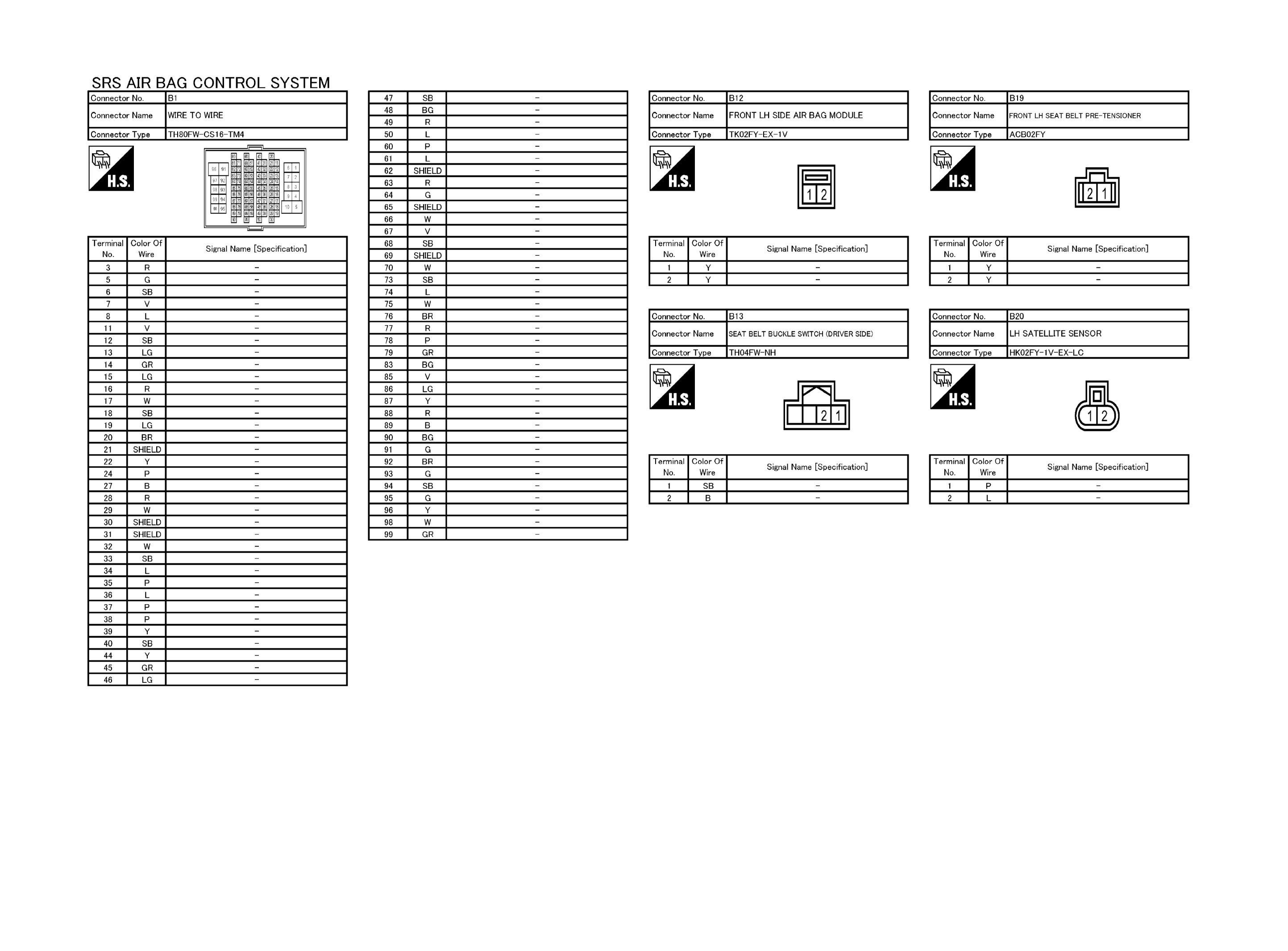

Fig 2: SRS Air Bag Control System Connector End Views (2 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

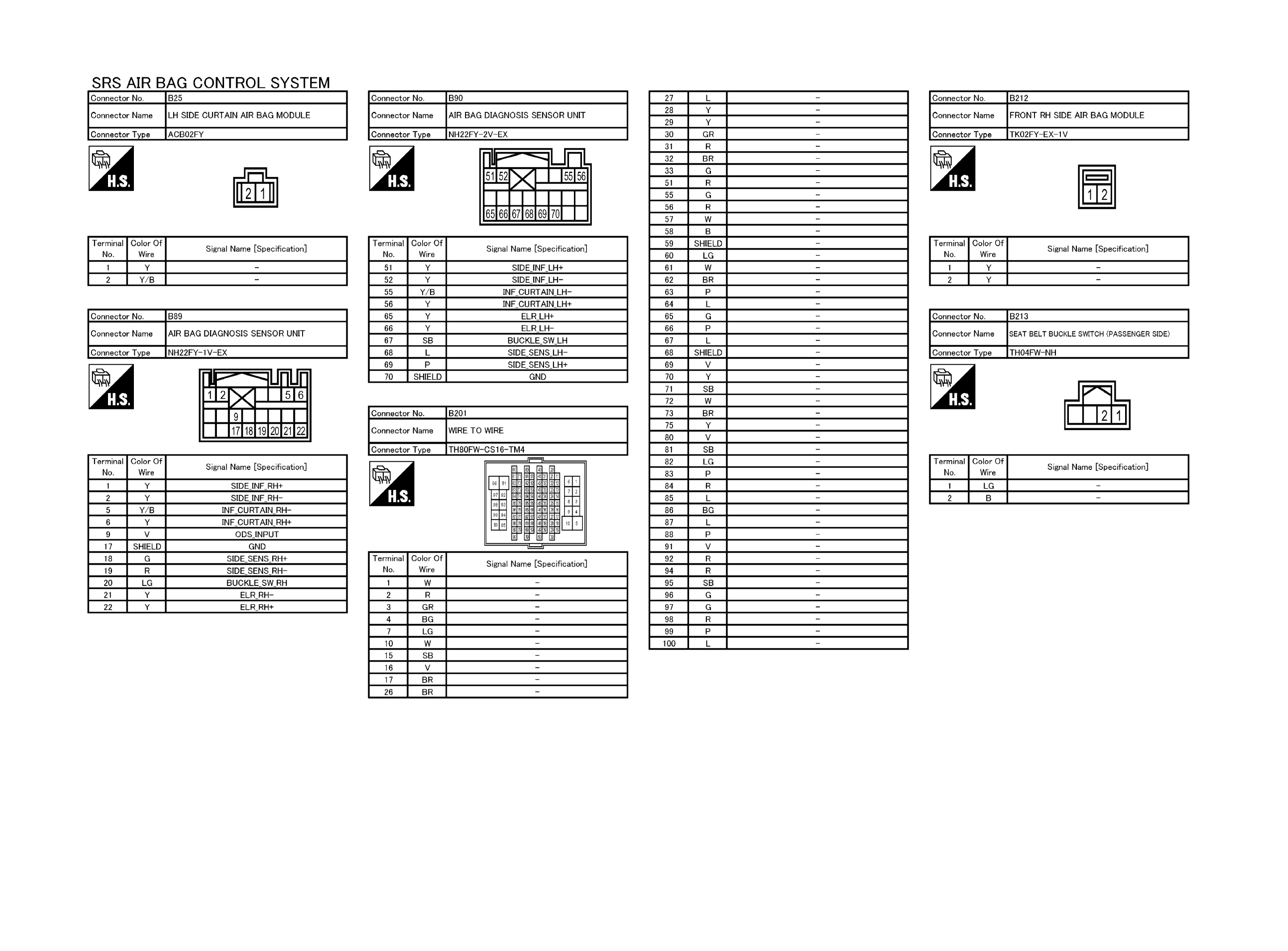

Fig 3: SRS Air Bag Control System Connector End Views (3 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

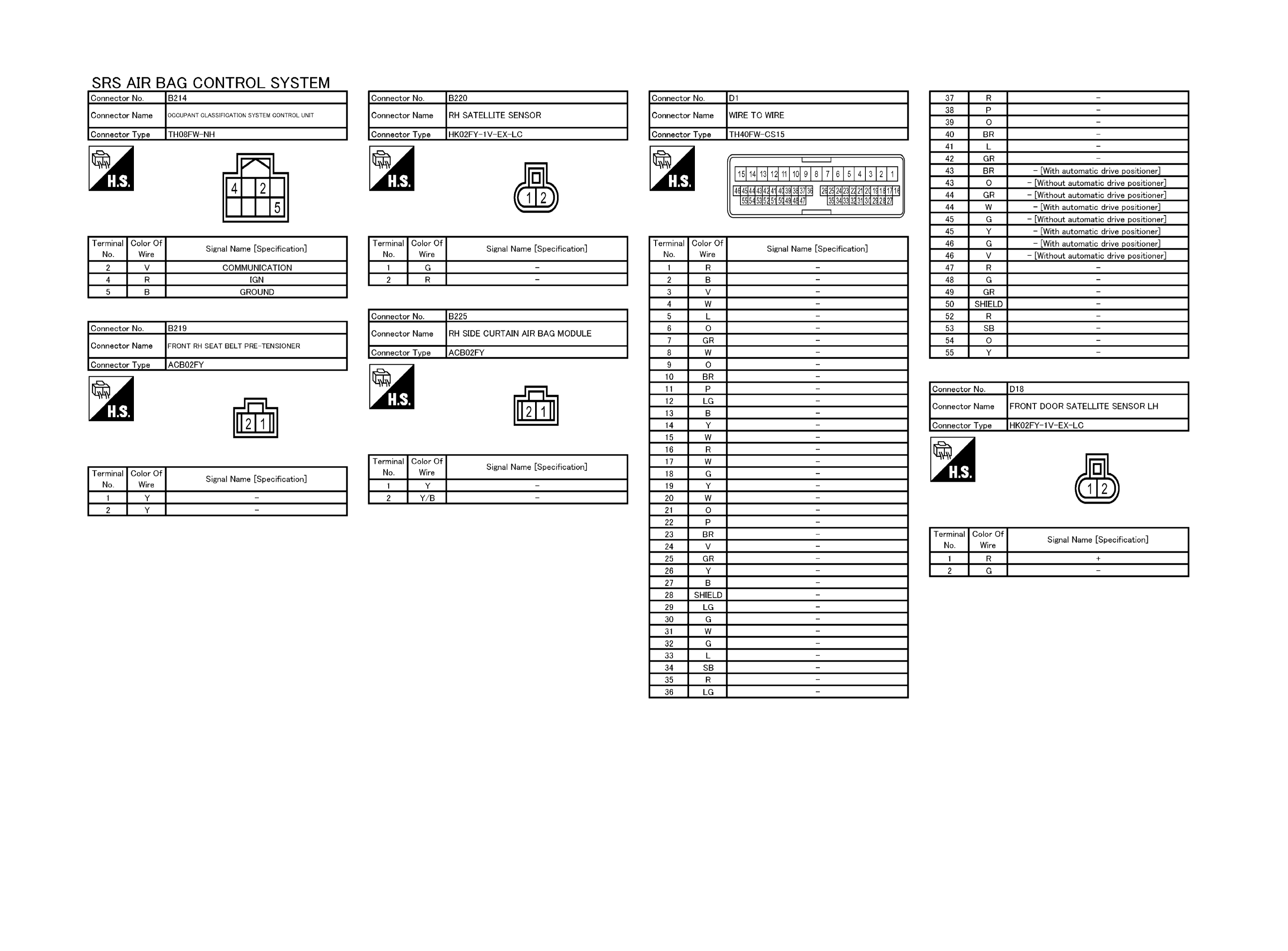

Fig 4: SRS Air Bag Control System Connector End Views (4 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: SRS Air Bag Control System Connector End Views (5 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

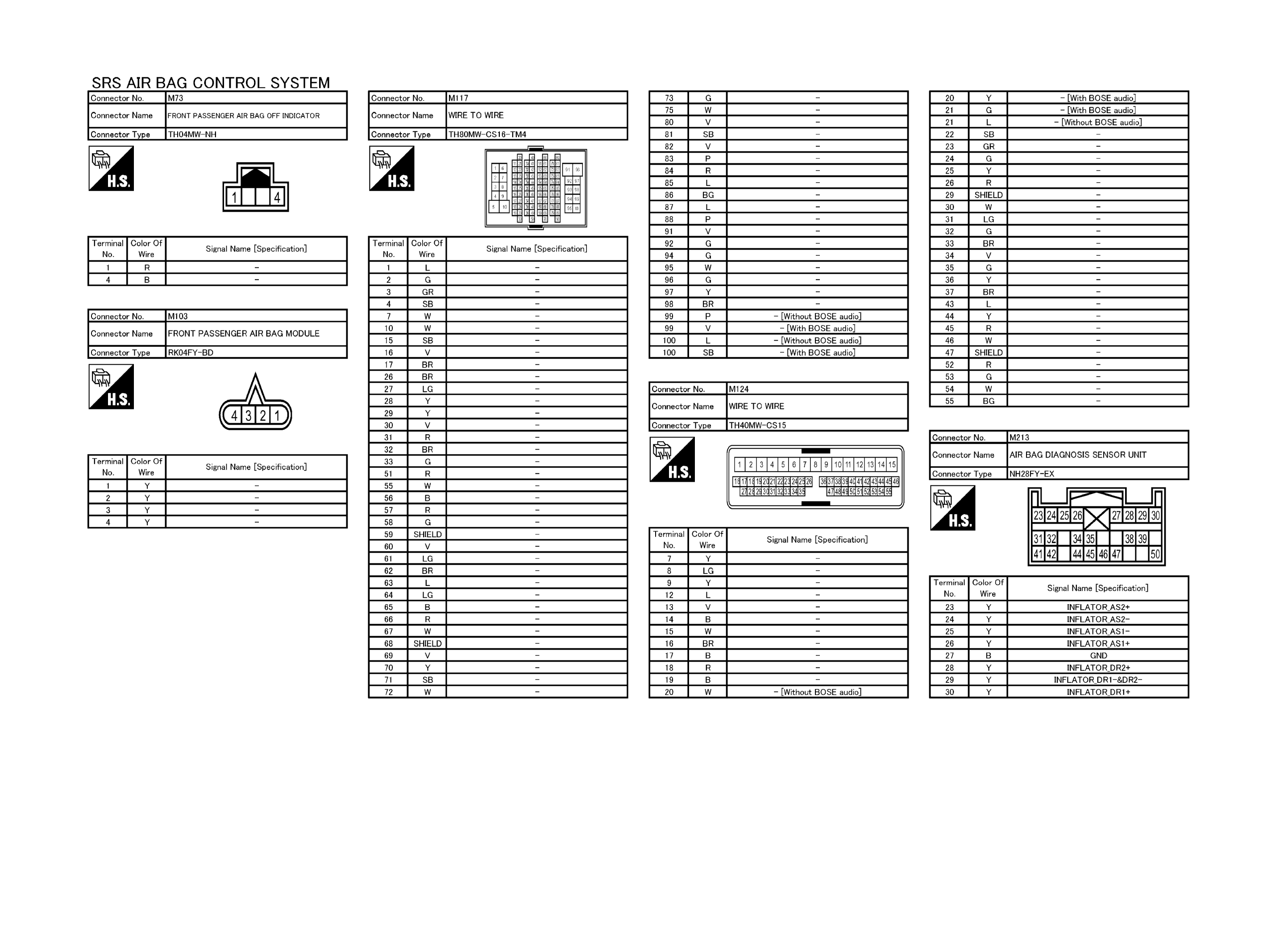

Fig 6: SRS Air Bag Control System Connector End Views (6 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

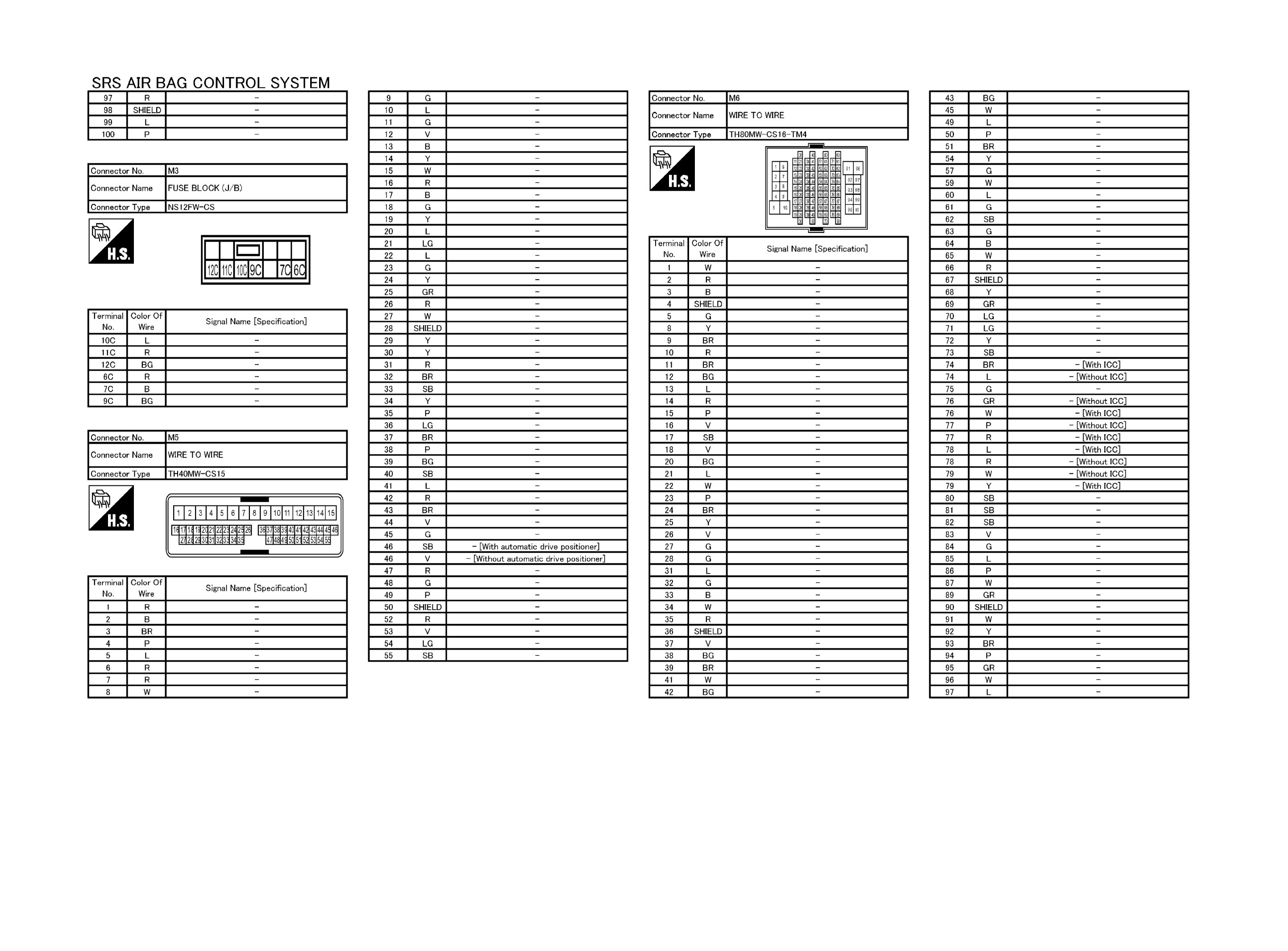

Fig 7: SRS Air Bag Control System Connector End Views (7 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

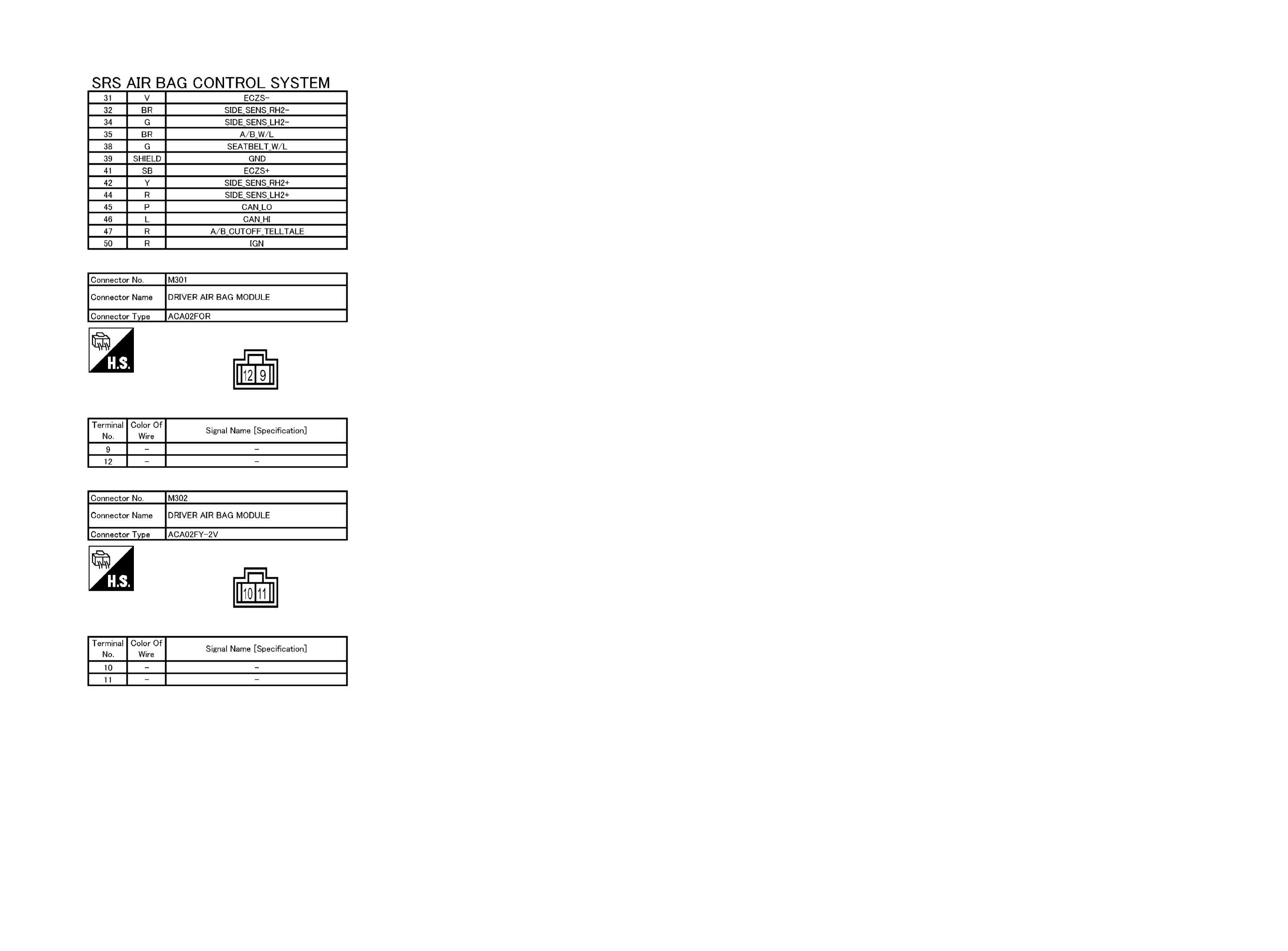

Fig 8: SRS Air Bag Control System Connector End Views (8 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.
