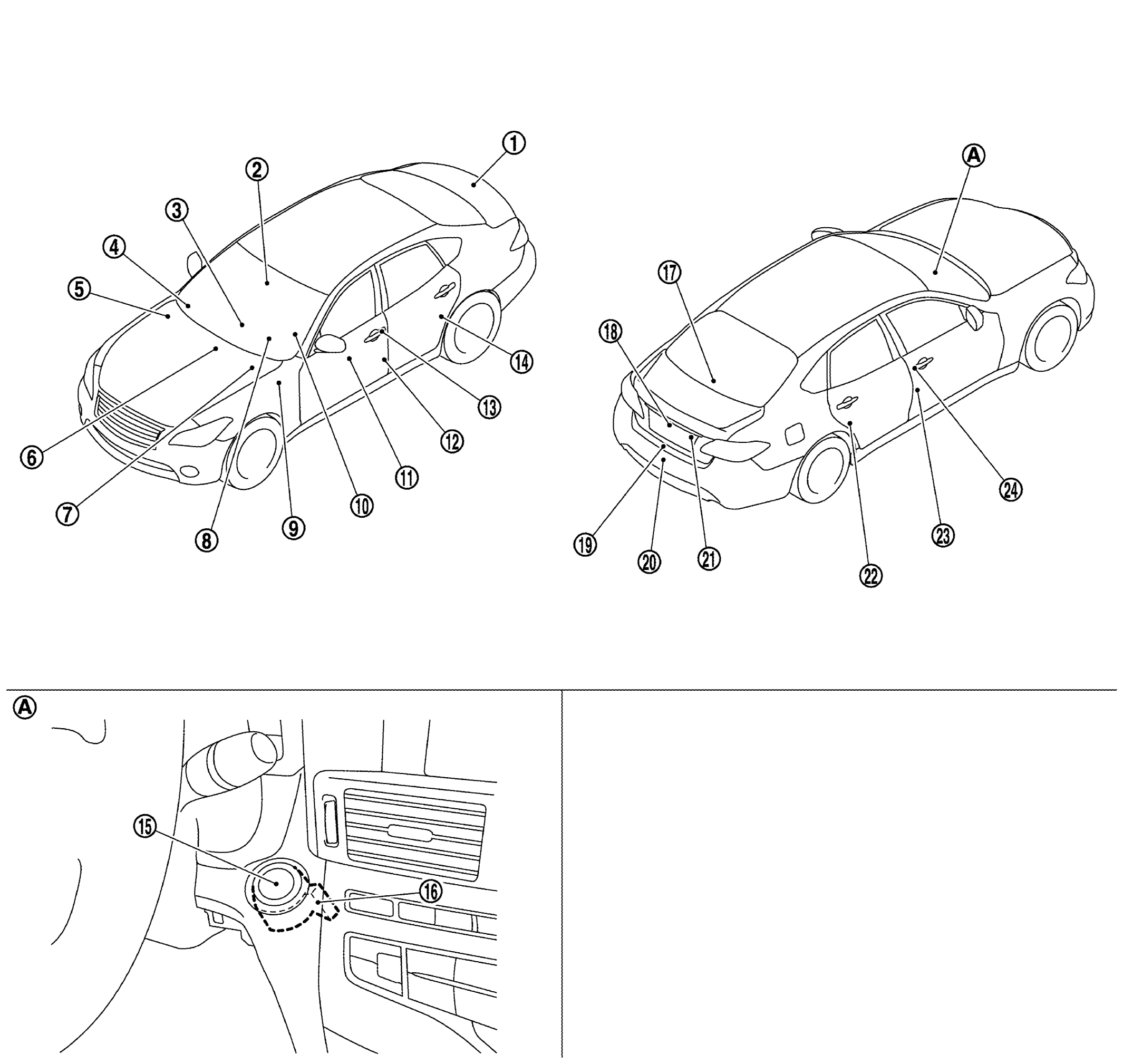

Components Location
WARNING: This page is about a different car, the 2015 Infiniti Q70. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Inside key antenna (trunk room) Refer to COMPONENTS LOCATION . |
2. | Inside key antenna (console) Refer to COMPONENTS LOCATION . |
3. | Inside key antenna (instrument center) Refer to COMPONENTS LOCATION . |
| 4. | Remote keyless entry receiver Refer to COMPONENTS LOCATION . |
5. | IPDM E/R Refer to COMPONENTS LOCATION . |
6. | Stop lamp switch Refer to COMPONENTS LOCATION . |
| 7. | ABS actuator and electric unit (control unit) Refer to COMPONENTS LOCATION . |
8. | Combination meter Refer to COMPONENTS LOCATION . |
9. | BCM Refer to COMPONENTS LOCATION . |
| 10. | TCM Refer to COMPONENTS LOCATION . |
11. | Power window main switch (door lock and unlock switch) | 12. | Front door switch (driver side) |
| 13. | Front outside handle assembly LH (outside key antenna and request switch) | 14. | Rear door switch LH | 15. | Push-button ignition switch |
| 16. | NATS antenna amp. | 17. | HPCM Refer to COMPONENTS LOCATION . |
18. | Trunk lid opener request switch |
| 19. | Trunk closure assembly | 20. | Outside key antenna (rear bumper) Refer to COMPONENTS LOCATION . |
21. | Trunk key cylinder switch |
| 22. | Rear door switch RH | 23. | Front door switch (passenger side) | 24. | Front outside handle assembly RH (outside key antenna and request switch) |
| A. | Behind push-button ignition switch |
