Q60 Base, 2D Convertible
>>
Repair and Diagnosis (Single Page)
>>
Body & Frame
>>
Door Locks
>>
Door & Lock (Convertible)
>>
System Description
>>
Intelligent Key System
>>
Remote Keyless Entry Function
>>
System Diagram
System Diagram

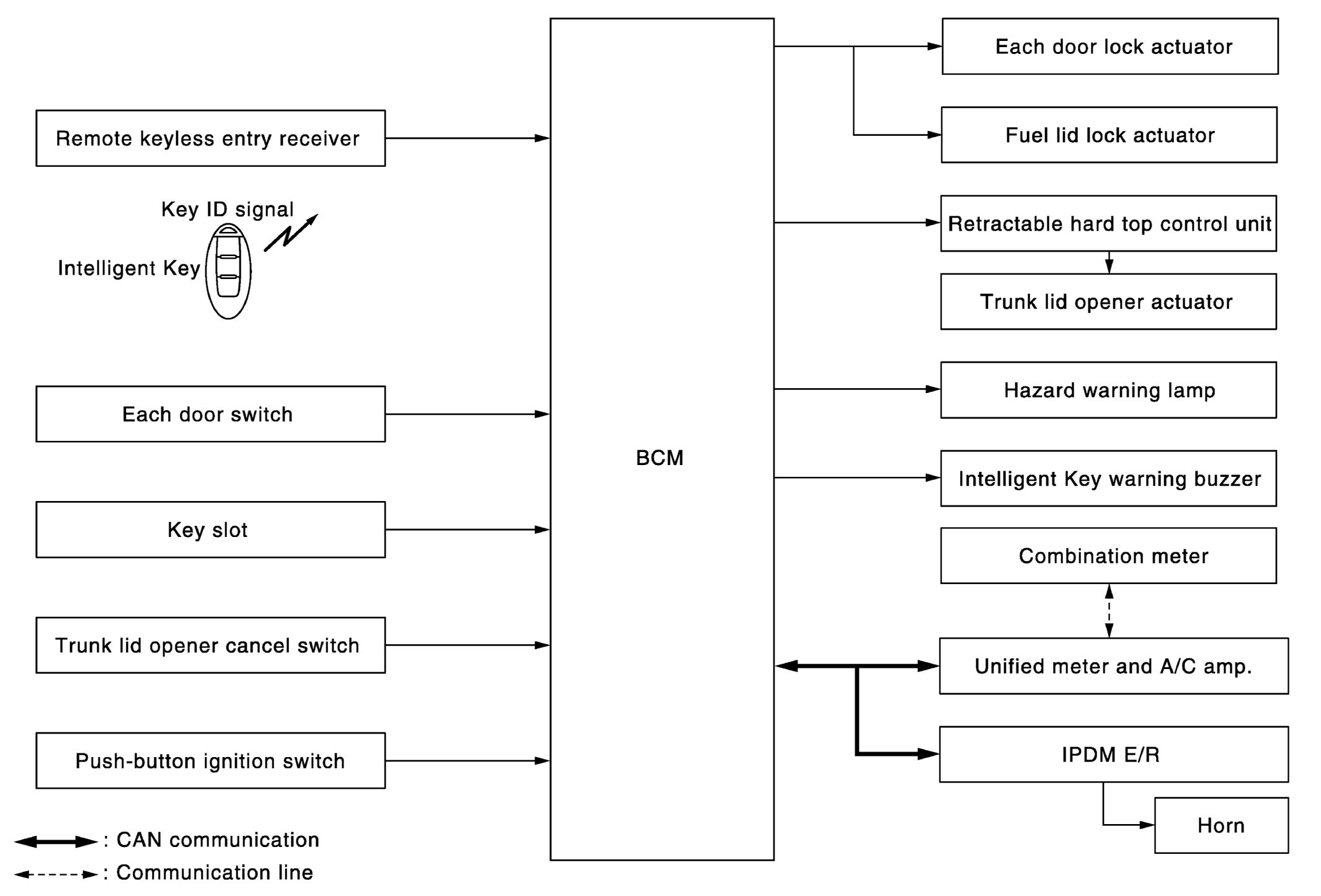

Fig 1: Remote Keyless Entry Function System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
