Q50 Hybrid Premium, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Window Control System (Hybrid)
>>
System Description
>>
System
>>
Circuit Diagram
Circuit Diagram

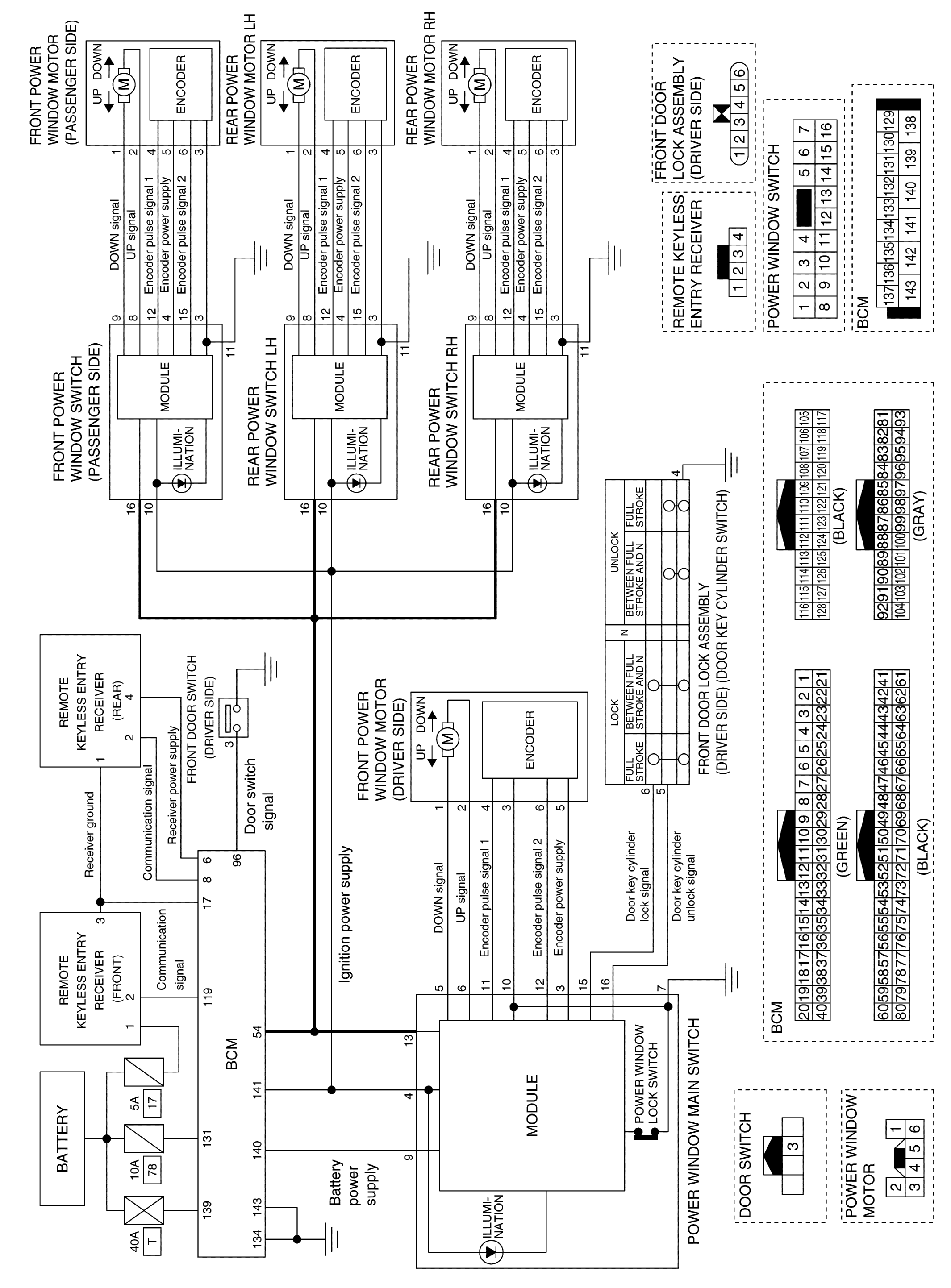

Fig 1: Power Window Control Circuit Wiring Diagram With Connector End Views
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
