Driver Assistance System Connectors

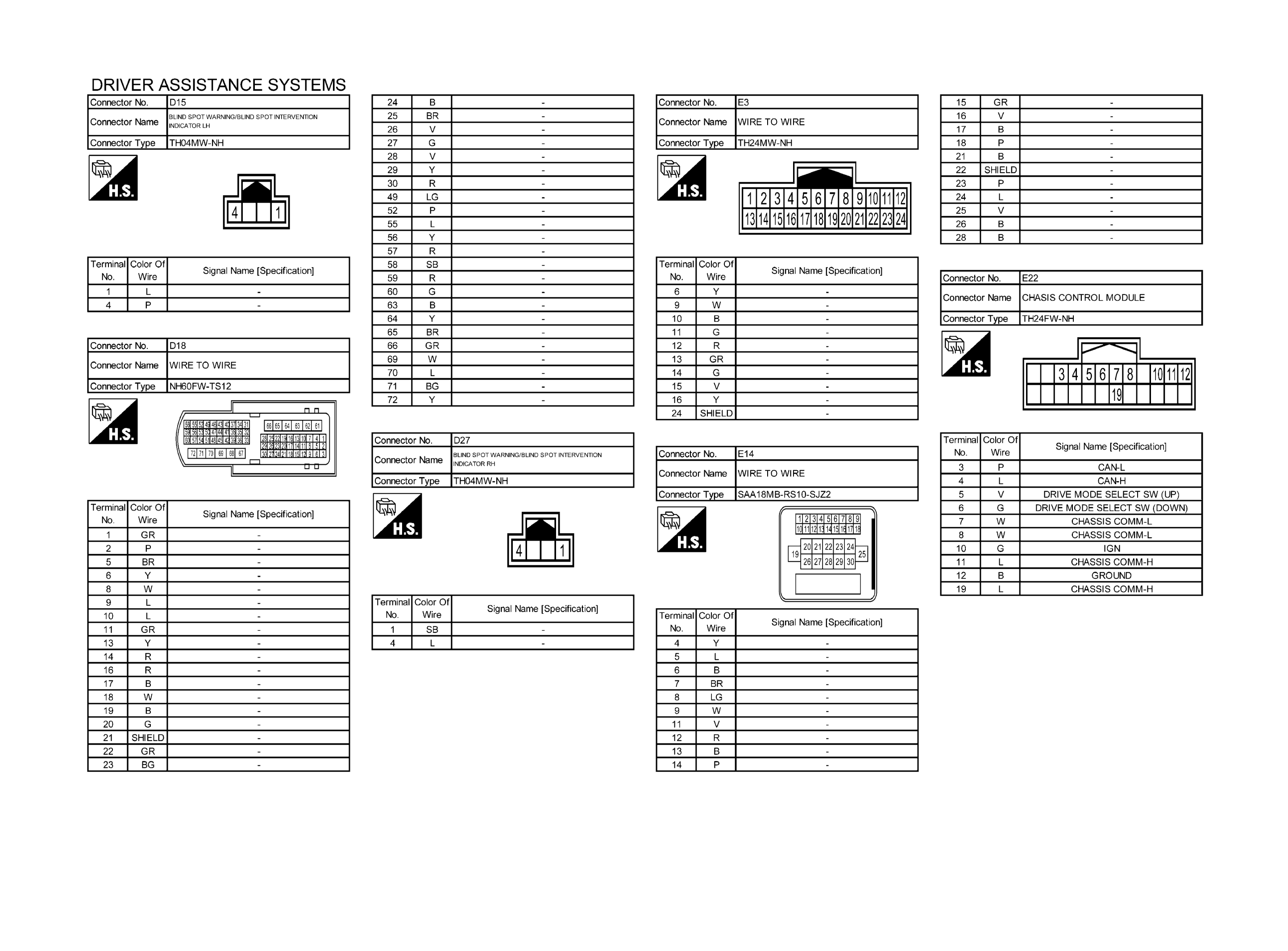

Fig 1: Driver Assistance System Connectors (1 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

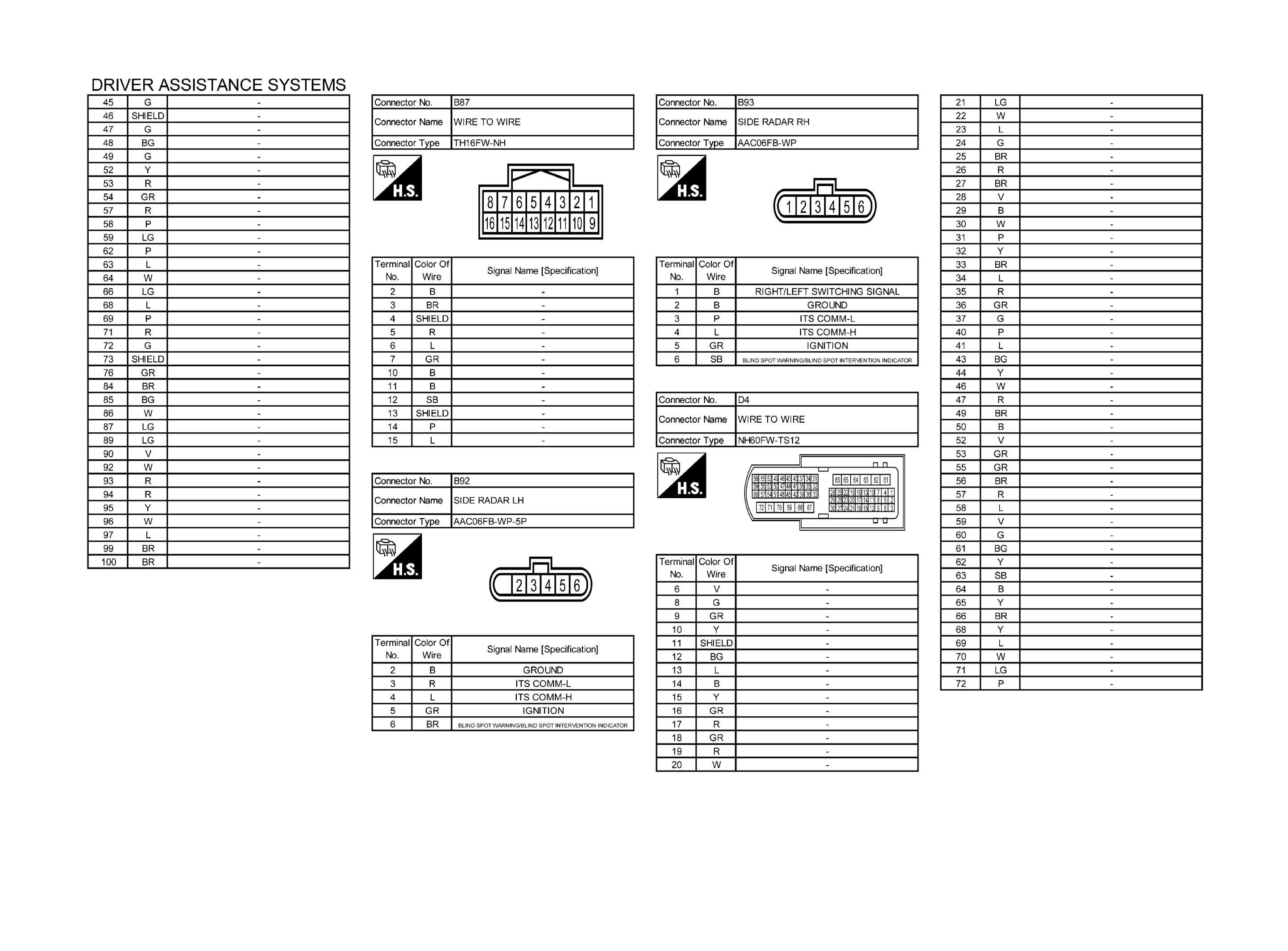

Fig 2: Driver Assistance System Connectors (2 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

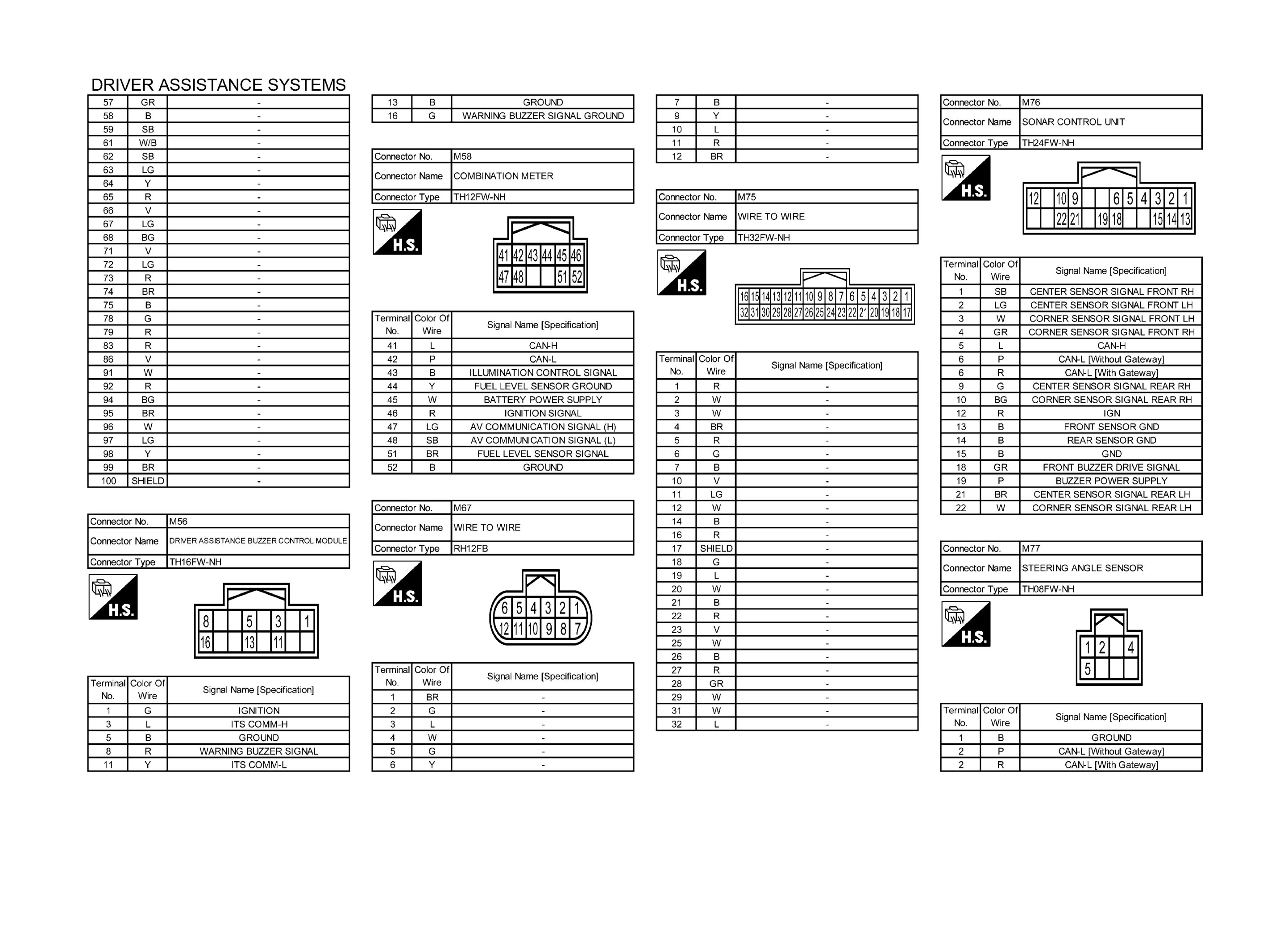

Fig 3: Driver Assistance System Connectors (3 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

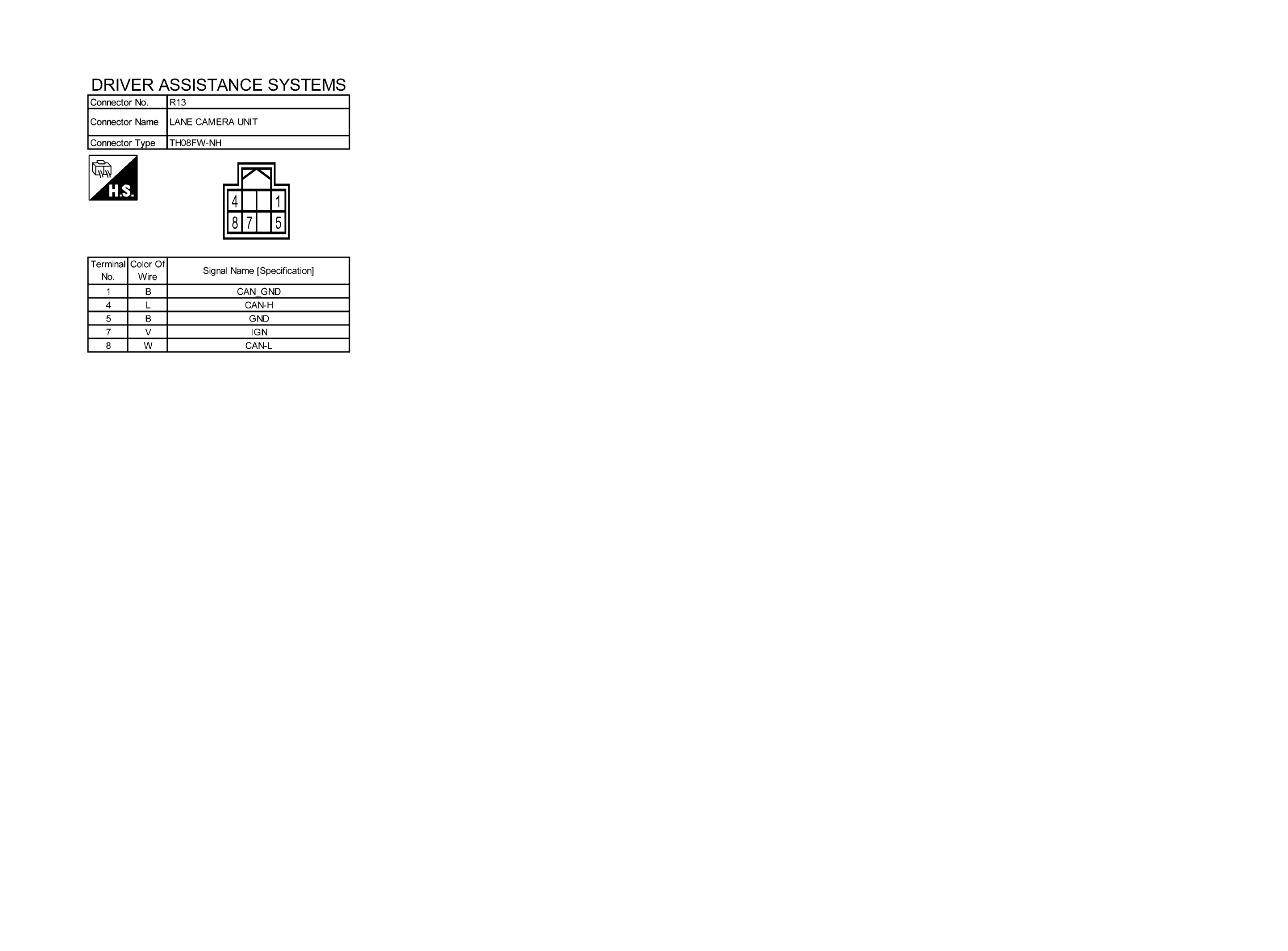

Fig 4: Driver Assistance System Connectors (4 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Driver Assistance System Connectors (5 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Driver Assistance System Connectors (6 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Driver Assistance System Connectors (7 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Driver Assistance System Connectors (8 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Driver Assistance System Connectors (9 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Driver Assistance System Connectors (10 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Driver Assistance System Connectors (11 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Driver Assistance System Connectors (12 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Driver Assistance System Connectors (13 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.
