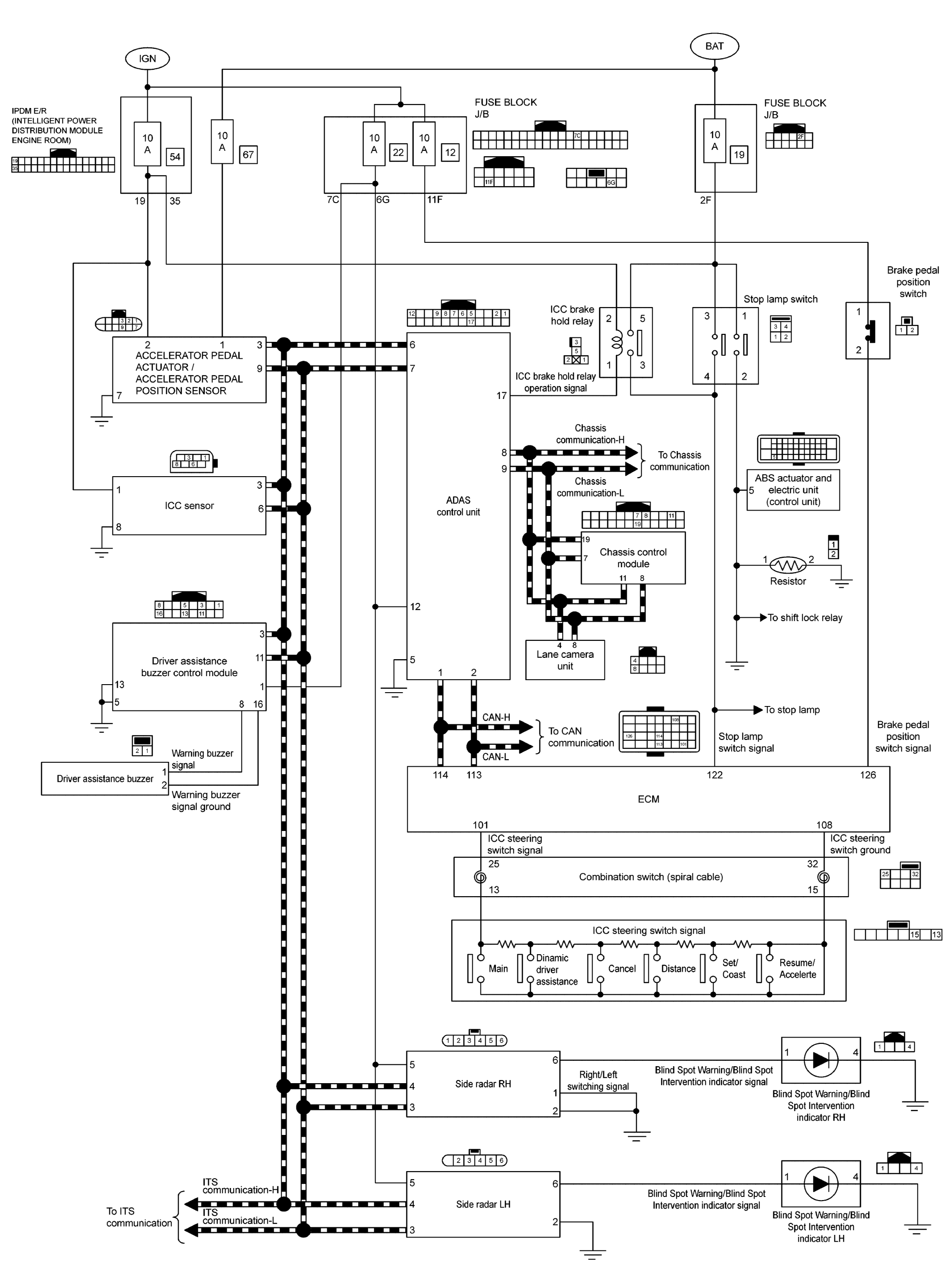

Home >> Infiniti >> 2015 >> Q50 Base, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Driver Assistance System (ADAS Control Unit) (Introduction) (Exc Hybrid) >> System Description >> System >> Circuit Diagram
