How To Change Reminder Function Operation Mode

With CONSULT

Reminder function operation mode can be changed using CONSULT.

Refer to CONSULT FUNCTION (BCM - INTELLIGENT KEY) .

Without CONSULT

When lock and unlock signal are sent from the Intelligent Key for more than 4 seconds at the same time, the hazard and buzzer reminder mode is changed and hazard warning lamp blinks and horn sounds as per the following items:

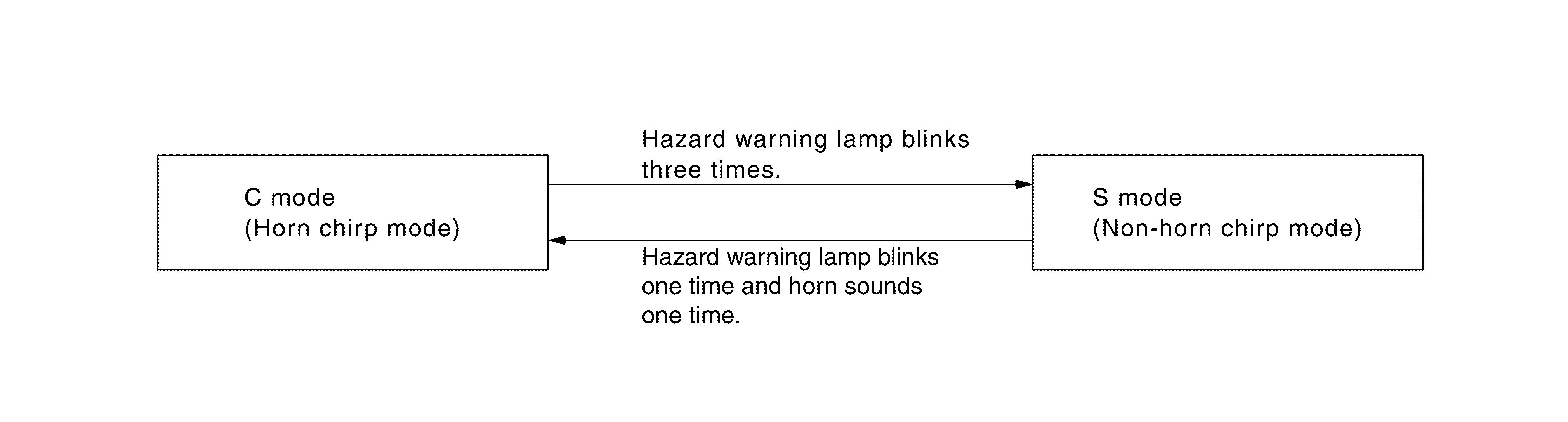

Fig 1: Reminder Function Operation Modes (Without CONSULT)
G09163391Courtesy of NISSAN NORTH AMERICA, INC.
