Exploded View With Torque Specifications

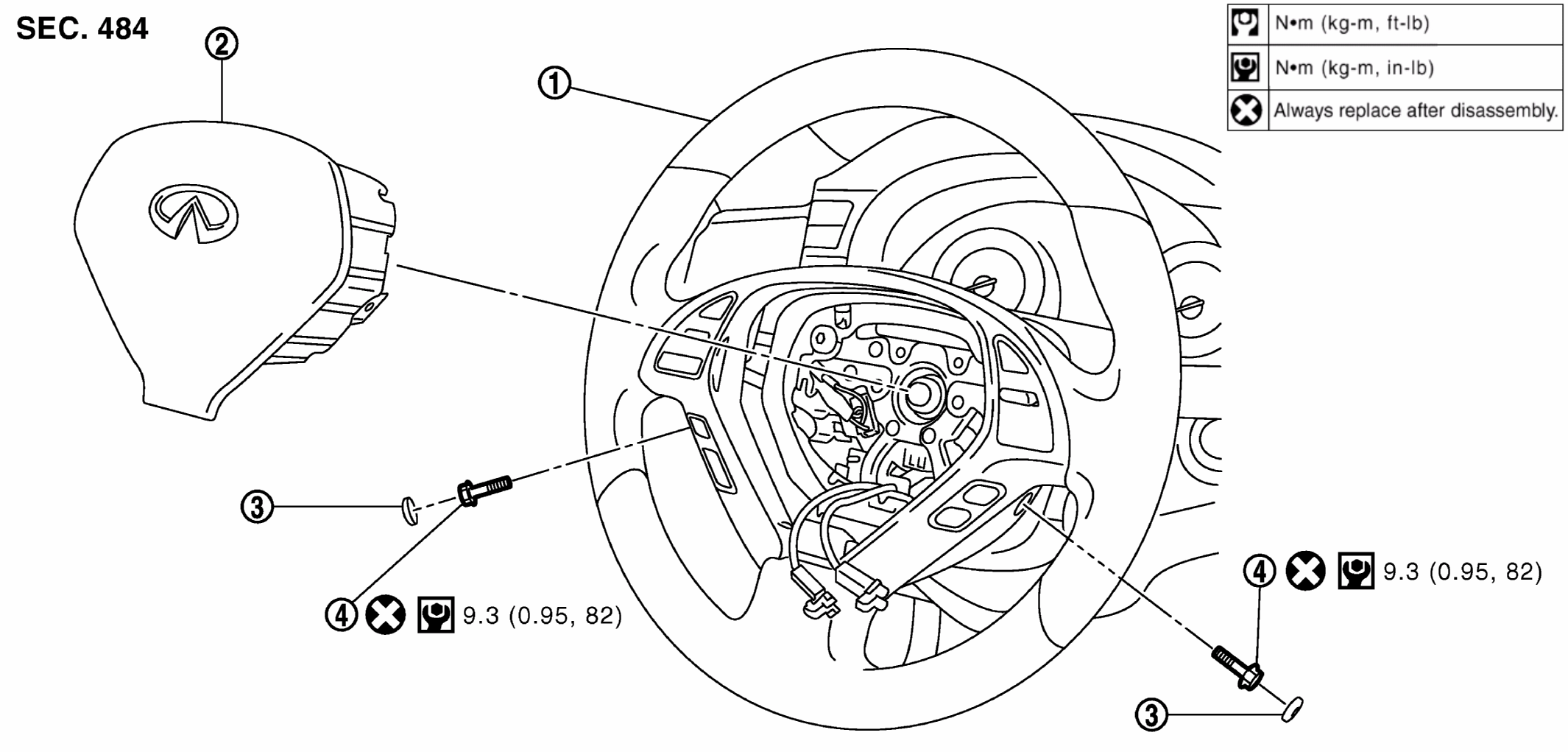

Fig 1: Exploded View Of Driver Air Bag Module With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering wheel	2.	Driver air bag module	3.	Side lid
4.	TORX bolt
	: Always replace after every disassembly.
	: N•m (kg-m, in-lb)
