Vehicle Security System Wiring Diagram

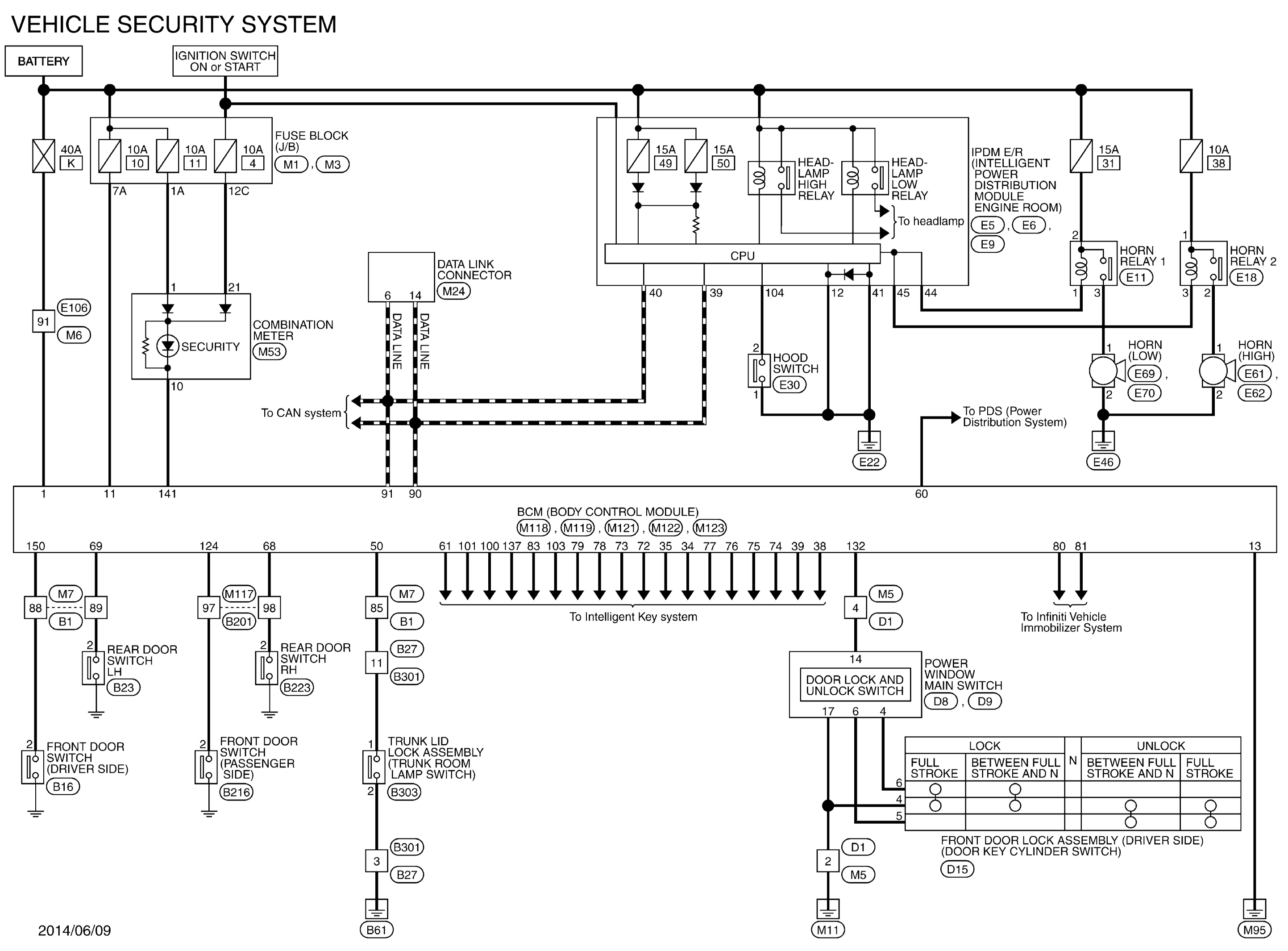

Fig 1: Vehicle Security System Wiring Diagram

GNSJRKWD7583GB-583

Courtesy of NISSAN NORTH AMERICA, INC.
