Exploded View

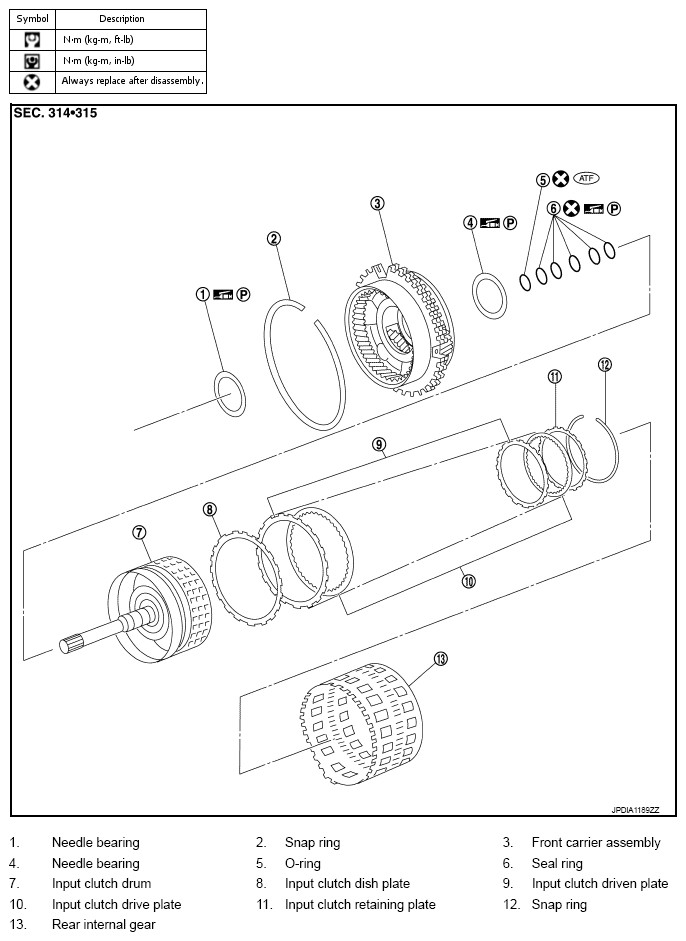

Fig 1: Exploded View Of Front Carrier, Input Clutch And Rear Internal Gear

G09178567

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
