System Symptom
>>
Symptom Table
>>
Symptom Table 1
Symptom Table 1

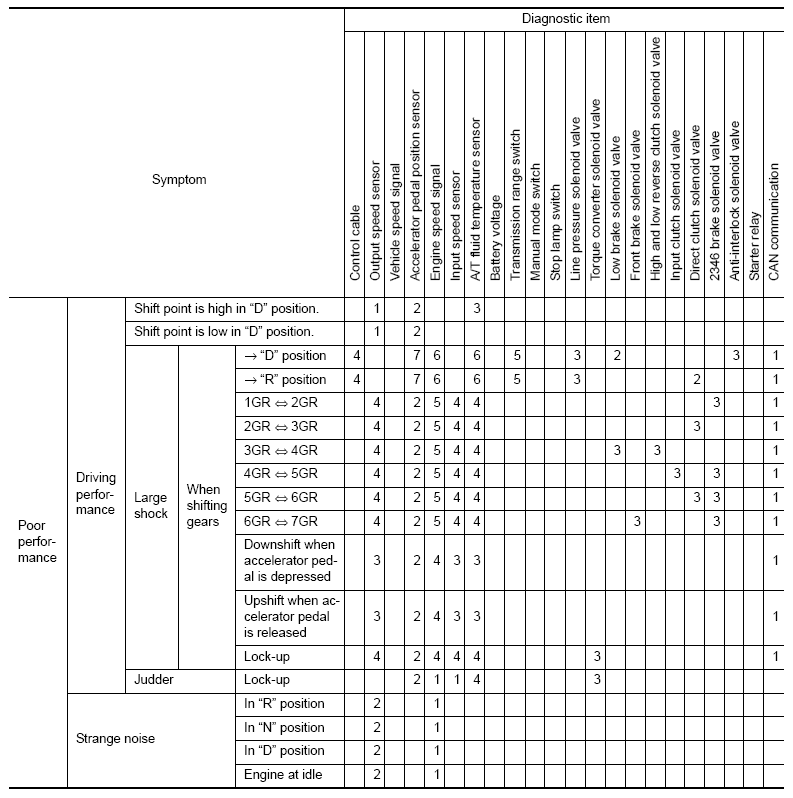

Fig 1: System Symptoms Chart 1 (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: System Symptoms Chart 1 (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

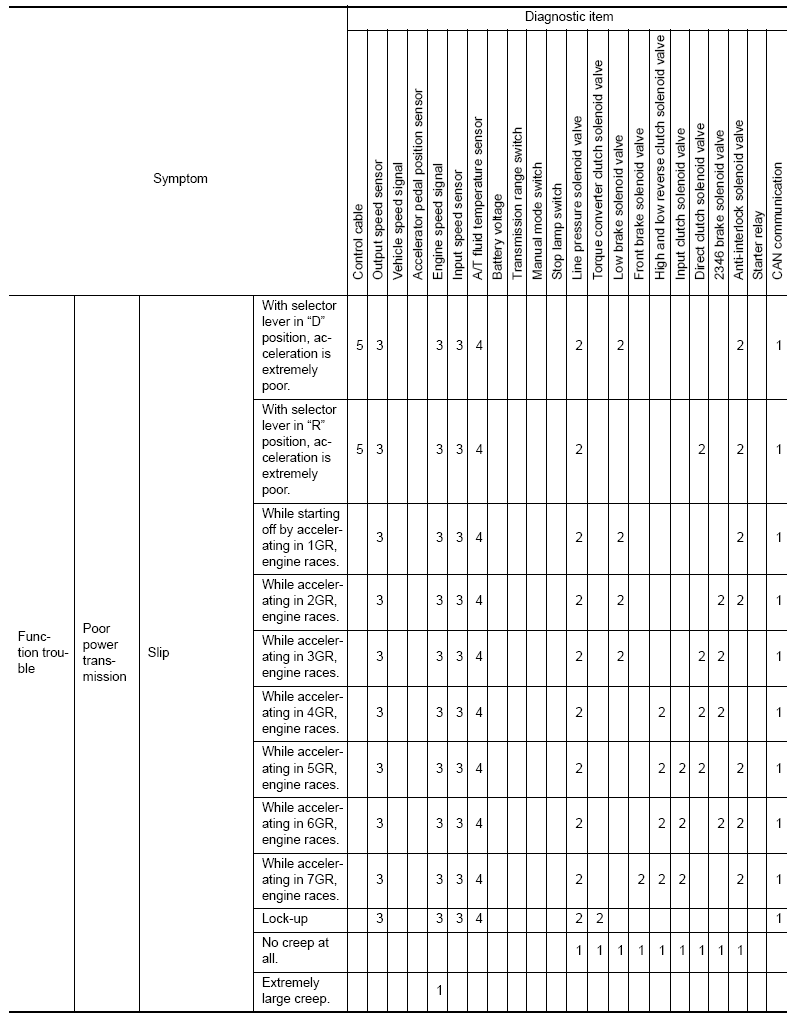

Fig 3: System Symptoms Chart 1 (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: System Symptoms Chart 1 (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

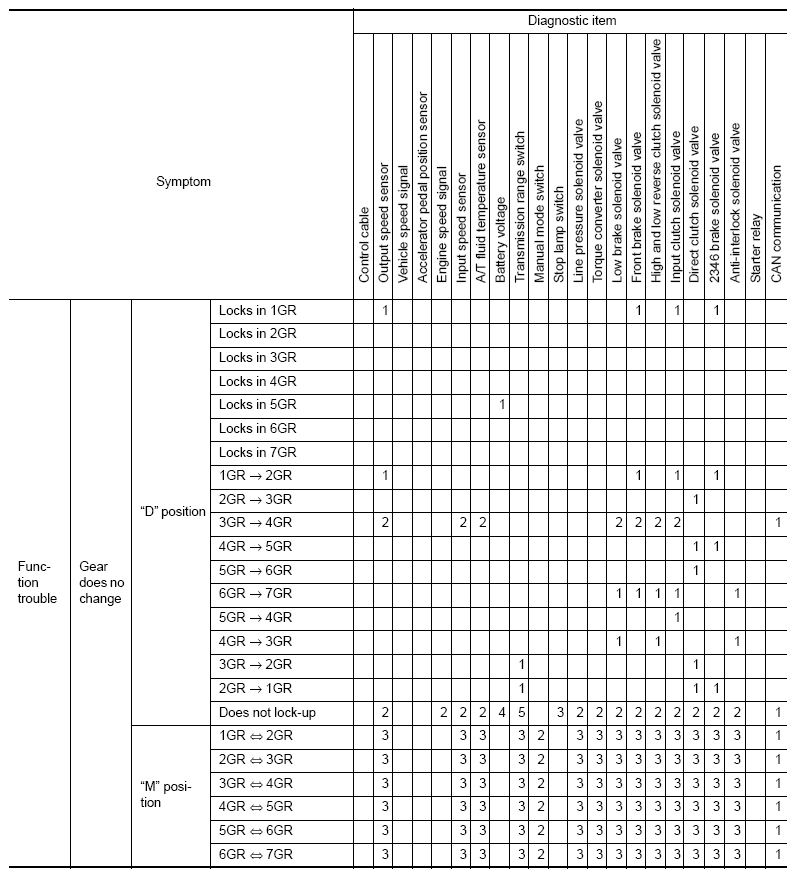

Fig 5: System Symptoms Chart 1 (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
