Push-Button Ignition Switch Connector End View (M101)

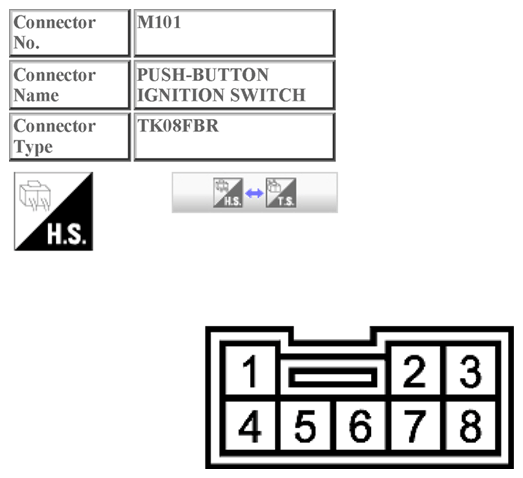

Fig 1: Push-Button Ignition Switch Connector End View (M101)

G10440886

Courtesy of NISSAN NORTH AMERICA, INC.
