Automatic Drive Positioner Control Unit Connector End View (M104)

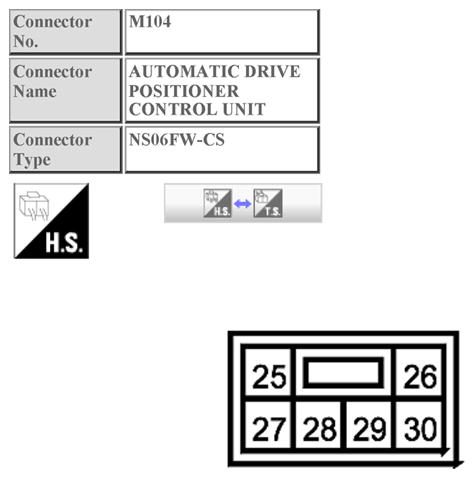

Fig 1: Automatic Drive Positioner Control Unit Connector End View (M104)

G10440517

Courtesy of NISSAN NORTH AMERICA, INC.
