Component Function Check

With CONSULT

1. Start engine and warm it up to the normal operating temperature.
2. Perform "VIAS S/V-1" in "ACTIVE TEST" mode with CONSULT.
3. Turn VIAS control solenoid valve 1 "ON" and "OFF", and check that power valve actuator 1 rod moves.

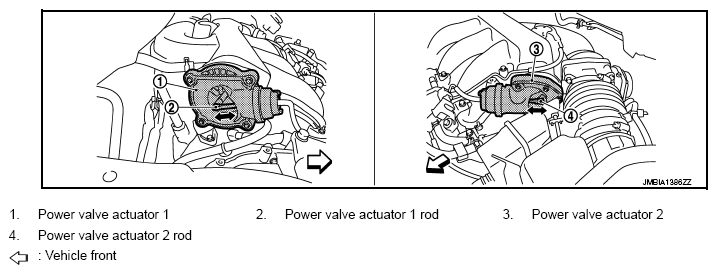

   Fig 1: Checking Variable Induction Air System

   Courtesy of NISSAN NORTH AMERICA, INC.

Without CONSULT

1. Start engine and warm it up to the normal operating temperature.
2. Rev engine quickly up to approximately 5, 000 RPM.
3. Check that power valve actuator 1 rod moves.

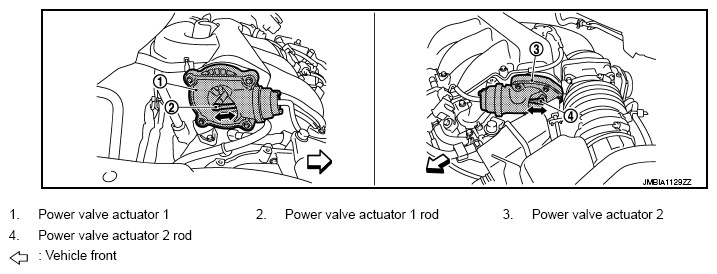

   Fig 2: Checking Power Valve Actuator 1 Rod Movement

   Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES: GO TO  2.

NO: Proceed to "DIAGNOSIS PROCEDURE ".

With CONSULT

1. Perform "VIAS S/V-2" in "ACTIVE TEST" mode with CONSULT.
2. Turn VIAS control solenoid valve 2 "ON" and "OFF", and check that power valve actuator 2 rod moves.

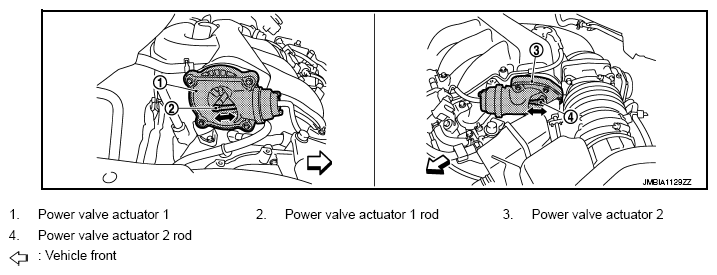

   Fig 3: Checking Power Valve Actuator 2 Rod Movement

   Courtesy of NISSAN NORTH AMERICA, INC.

Without CONSULT

1. When revving engine up to 5, 000 RPM quickly.
2. Rev engine quickly up to approximately 5, 000 RPM.
3. Check that power valve actuator 2 rod moves.
   Fig 4: Checking Power Valve Actuator 2 Rod Movement

   Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES: INSPECTION END

NO: Proceed to "DIAGNOSIS PROCEDURE ".
