Data Monitor

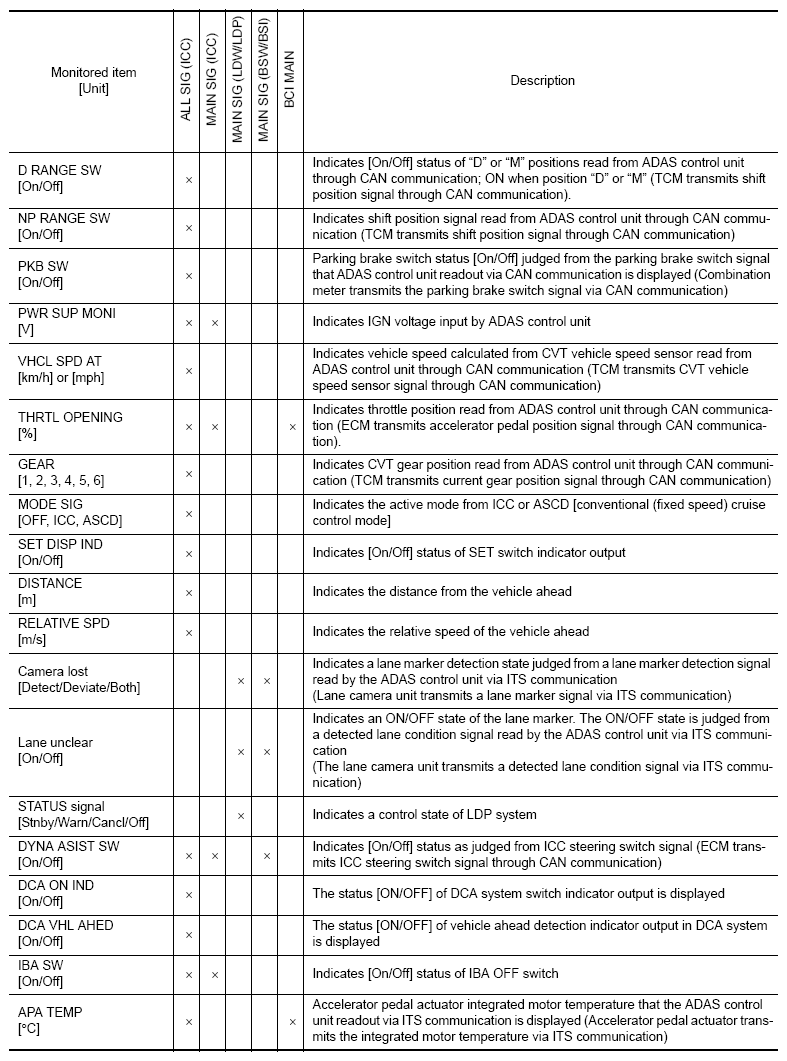

Fig 1: ADAS Control Unit Data Monitor Chart (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

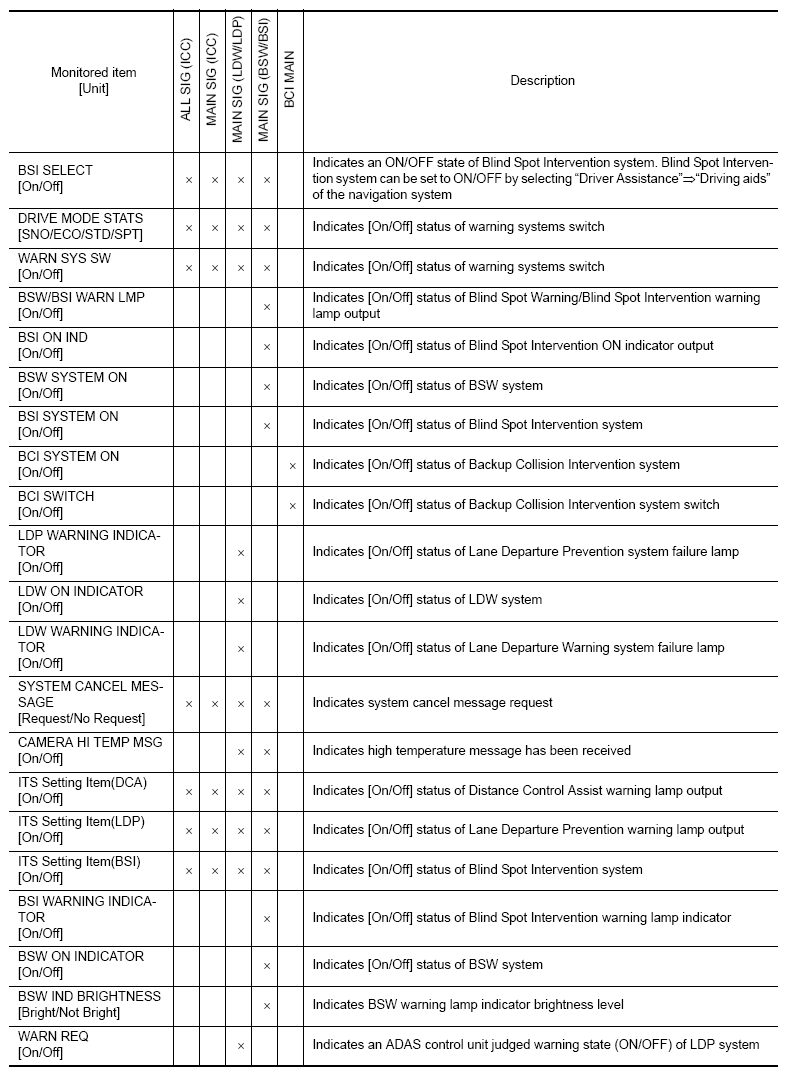

Fig 2: ADAS Control Unit Data Monitor Chart (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

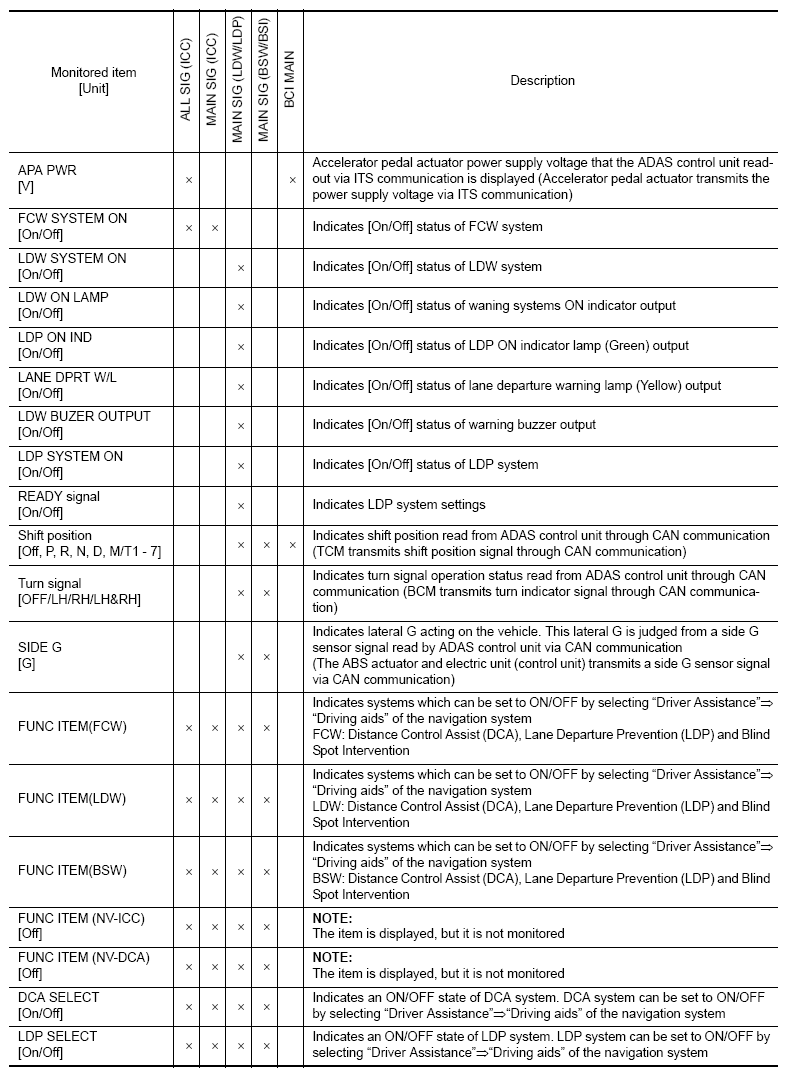

Fig 3: ADAS Control Unit Data Monitor Chart (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

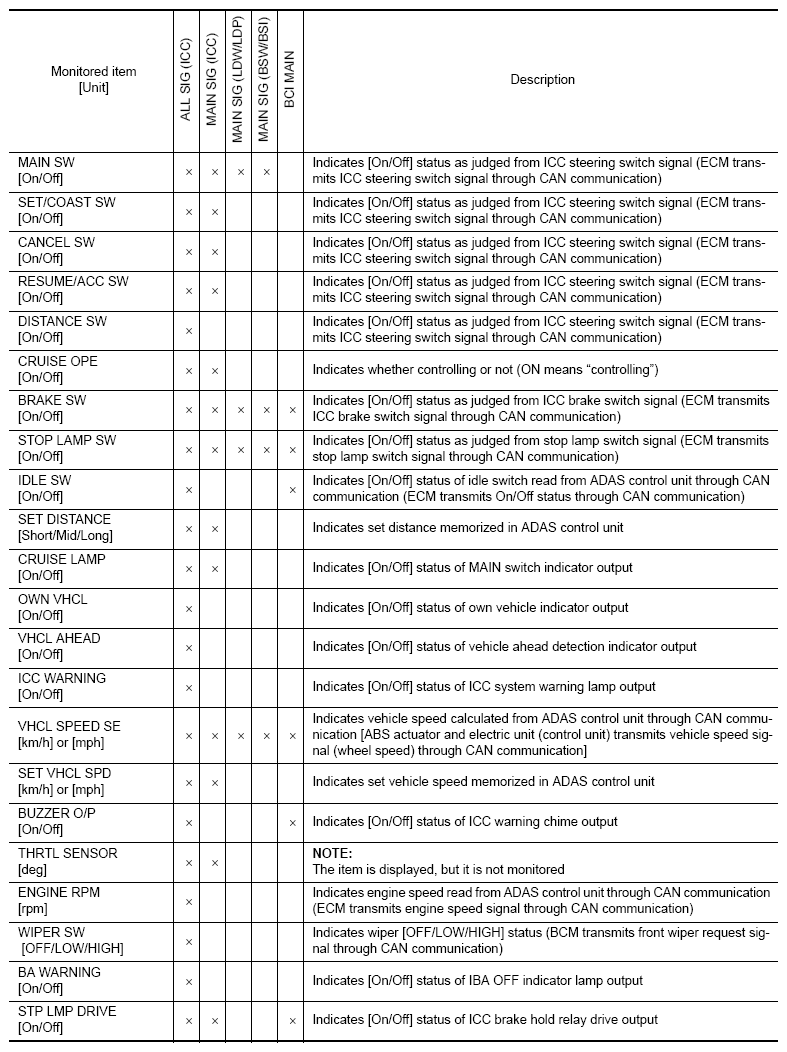

Fig 4: ADAS Control Unit Data Monitor Chart (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
