Overall Sequence

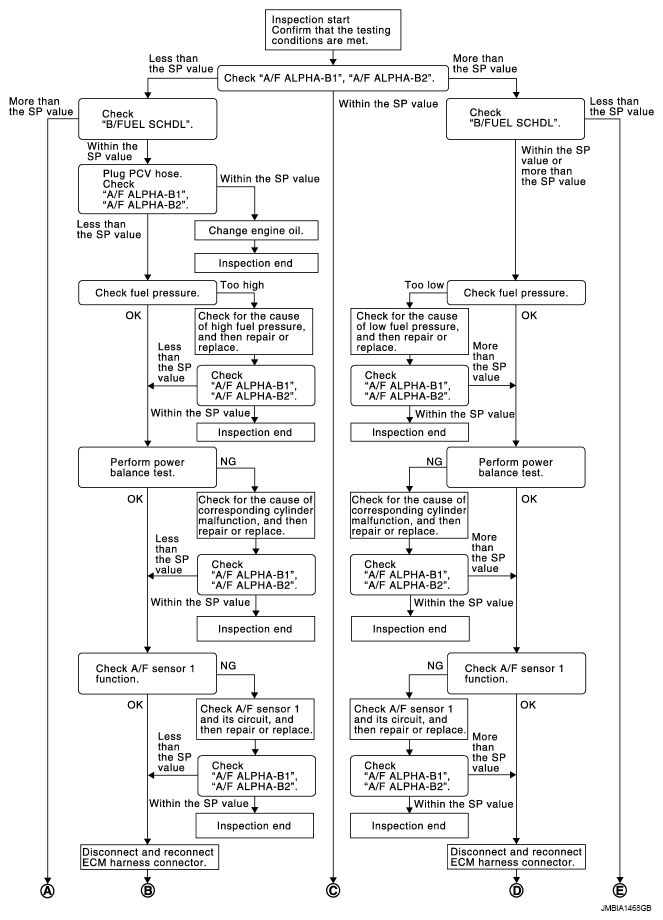

Fig 1: Diagnosis Procedure Chart (1 Of 2)

G09172682

Courtesy of NISSAN NORTH AMERICA, INC.

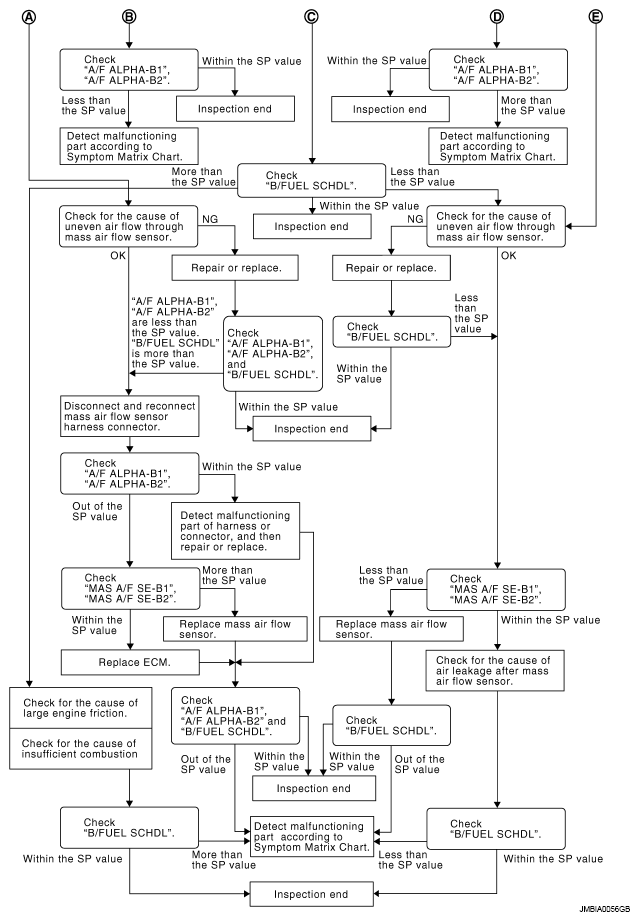

Fig 2: Diagnosis Procedure Chart (2 Of 2)

G09172683

Courtesy of NISSAN NORTH AMERICA, INC.
