Connector Terminal Identification

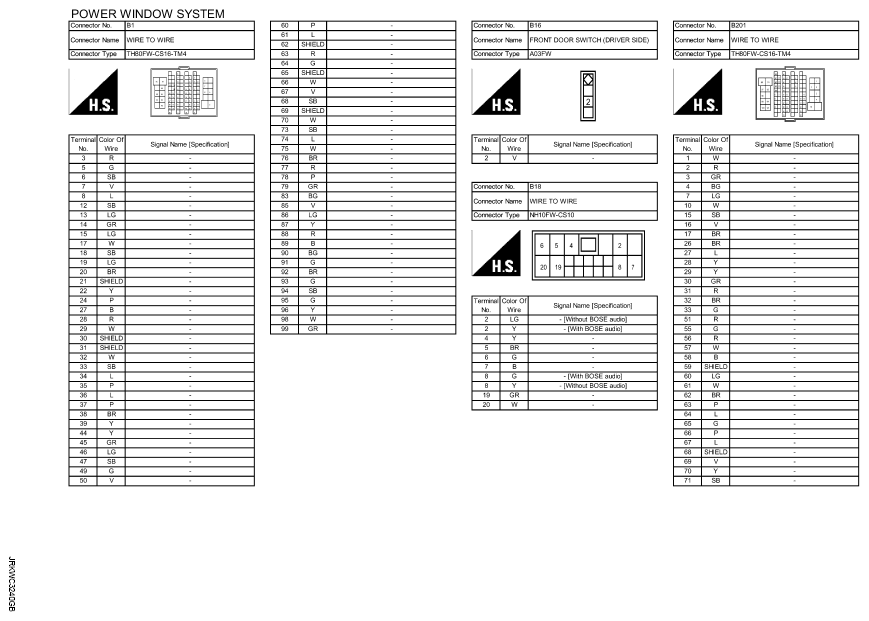

Fig 1: Power Window System Connector End View (1 Of 8)
G09174724Courtesy of NISSAN NORTH AMERICA, INC.

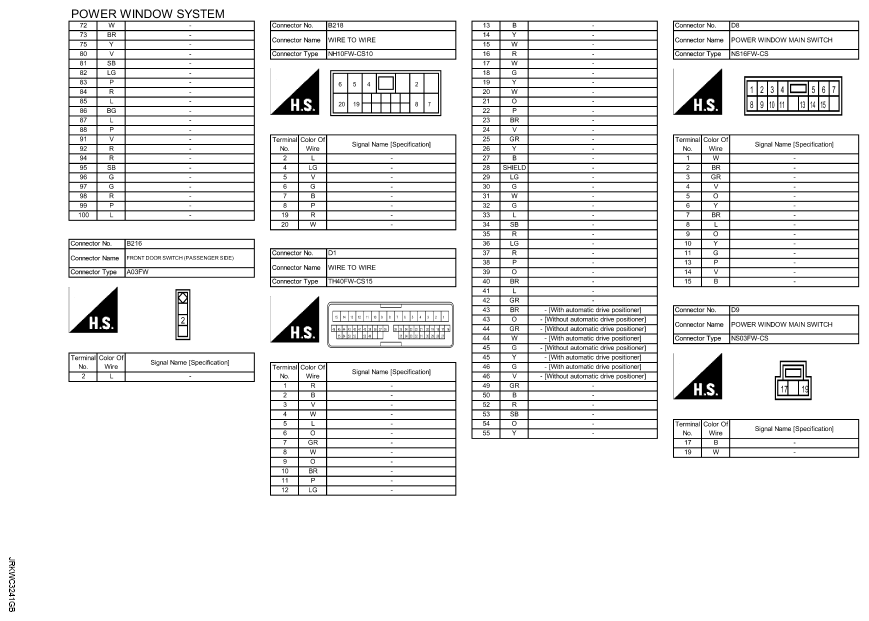

Fig 2: Power Window System Connector End View (2 Of 8)
G09174725Courtesy of NISSAN NORTH AMERICA, INC.

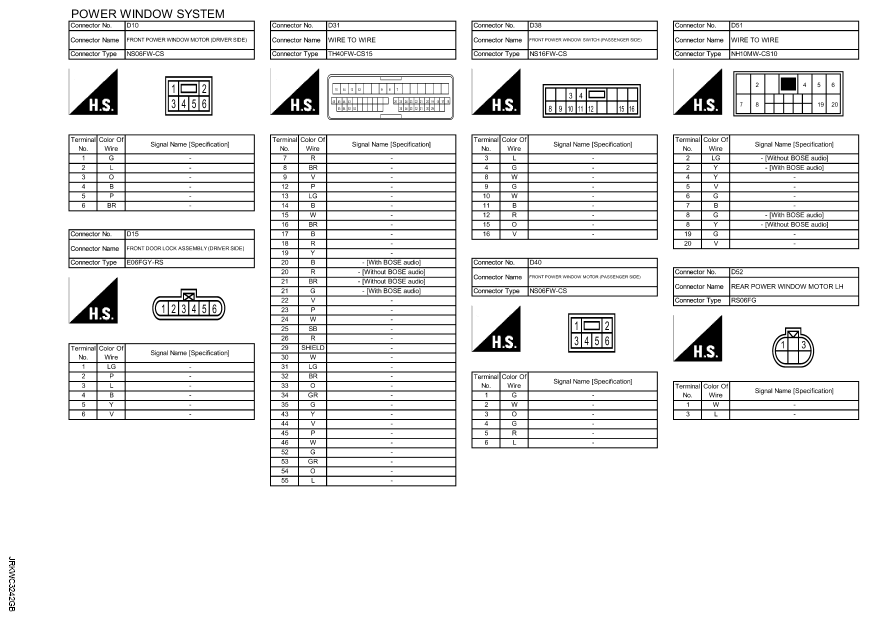

Fig 3: Power Window System Connector End View (3 Of 8)
G09174726Courtesy of NISSAN NORTH AMERICA, INC.

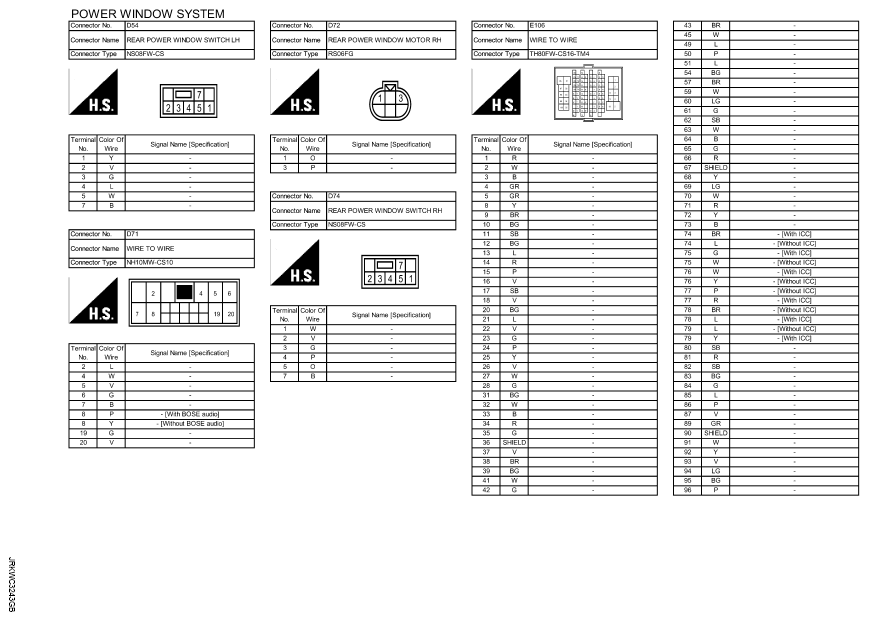

Fig 4: Power Window System Connector End View (4 Of 8)
G09174727Courtesy of NISSAN NORTH AMERICA, INC.

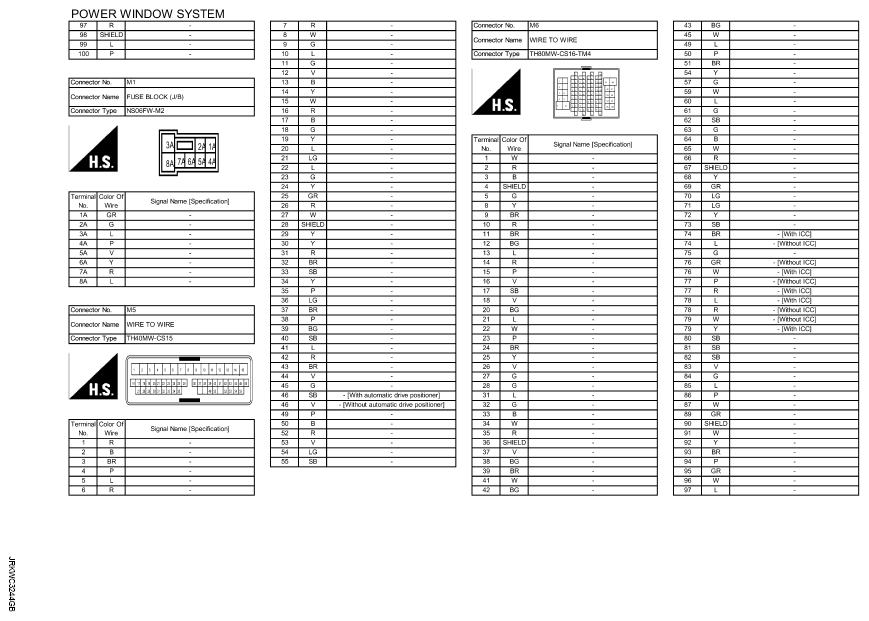

Fig 5: Power Window System Connector End View (5 Of 8)
G09174728Courtesy of NISSAN NORTH AMERICA, INC.

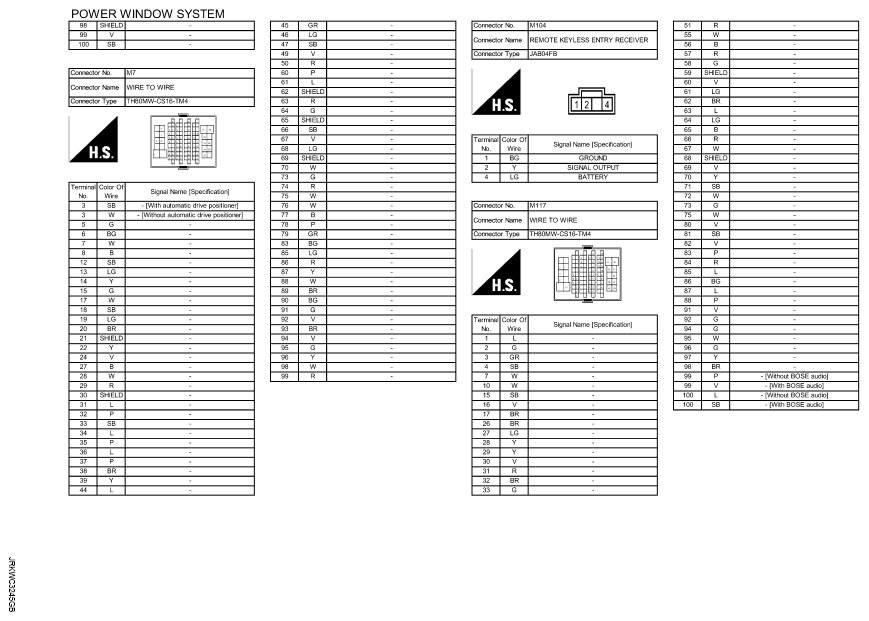

Fig 6: Power Window System Connector End View (6 Of 8)
G09174729Courtesy of NISSAN NORTH AMERICA, INC.

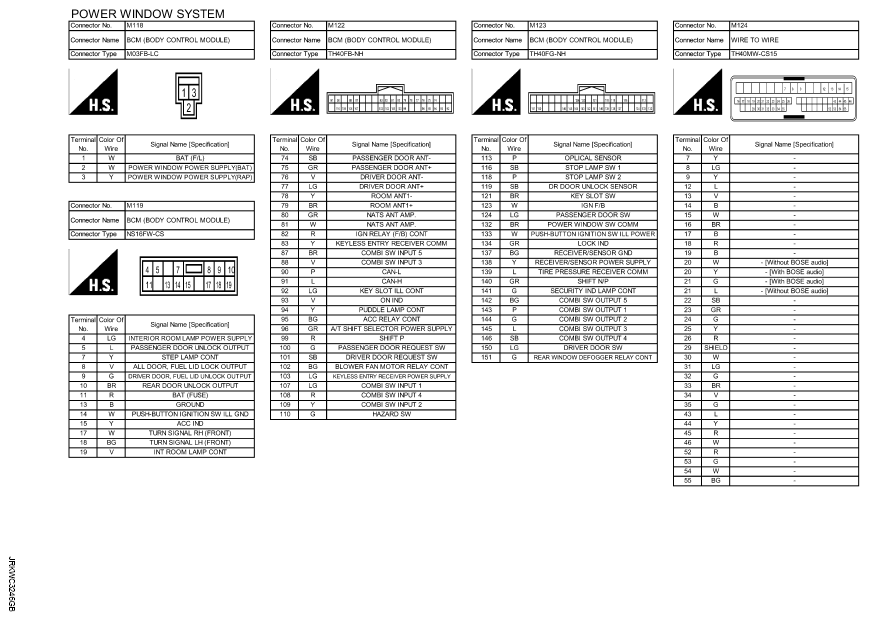

Fig 7: Power Window System Connector End View (7 Of 8)
G09174730Courtesy of NISSAN NORTH AMERICA, INC.
Fig 8: Power Window System Connector End View (8 Of 8)
G09174731Courtesy of NISSAN NORTH AMERICA, INC.
