Section 65 (Power Control System (Power Distribution System) (Hybrid))
>>
System Description
>>
System
>>
Power Distribution System
>>
POWER DISTRIBUTION SYSTEM: System Diagram
POWER DISTRIBUTION SYSTEM: System Diagram
WARNING:
This page is about a different variant/trim than selected.

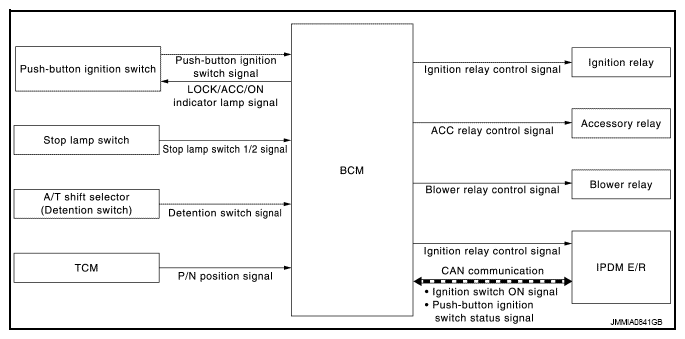

Fig 1: Power Distribution - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
