Data Monitor

WARNING: This page is about a different variant/trim than selected.

NOTE: The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

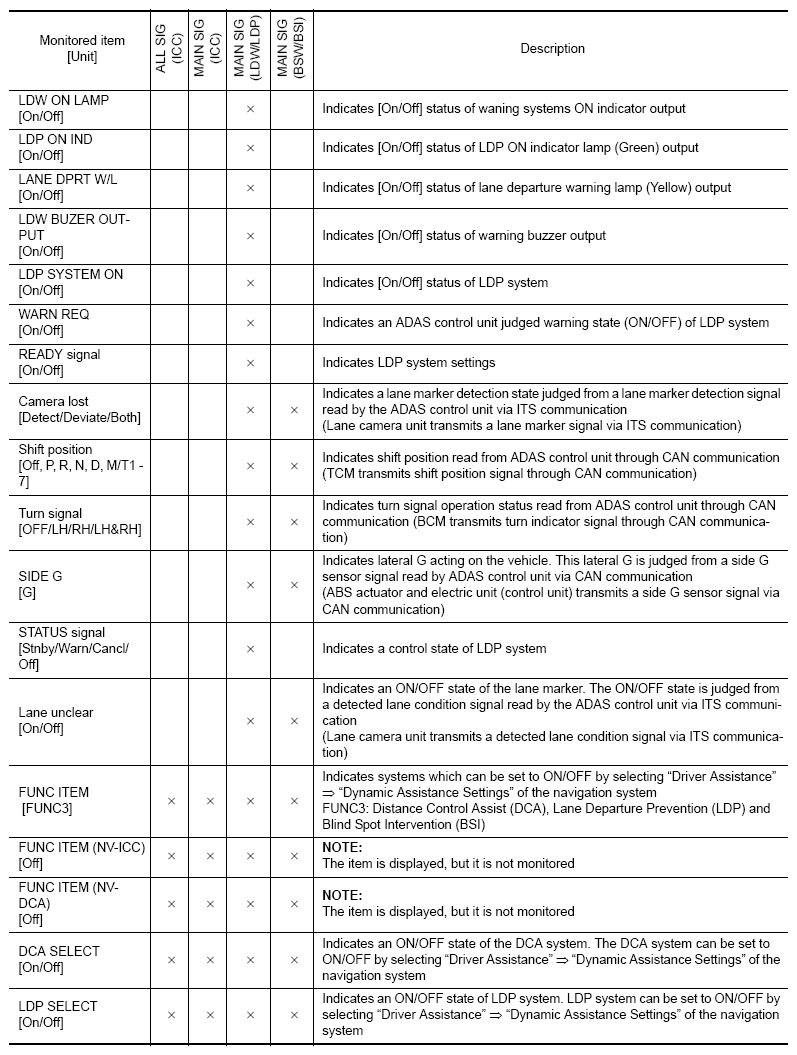

Fig 1: CONSULT Display Items Chart (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

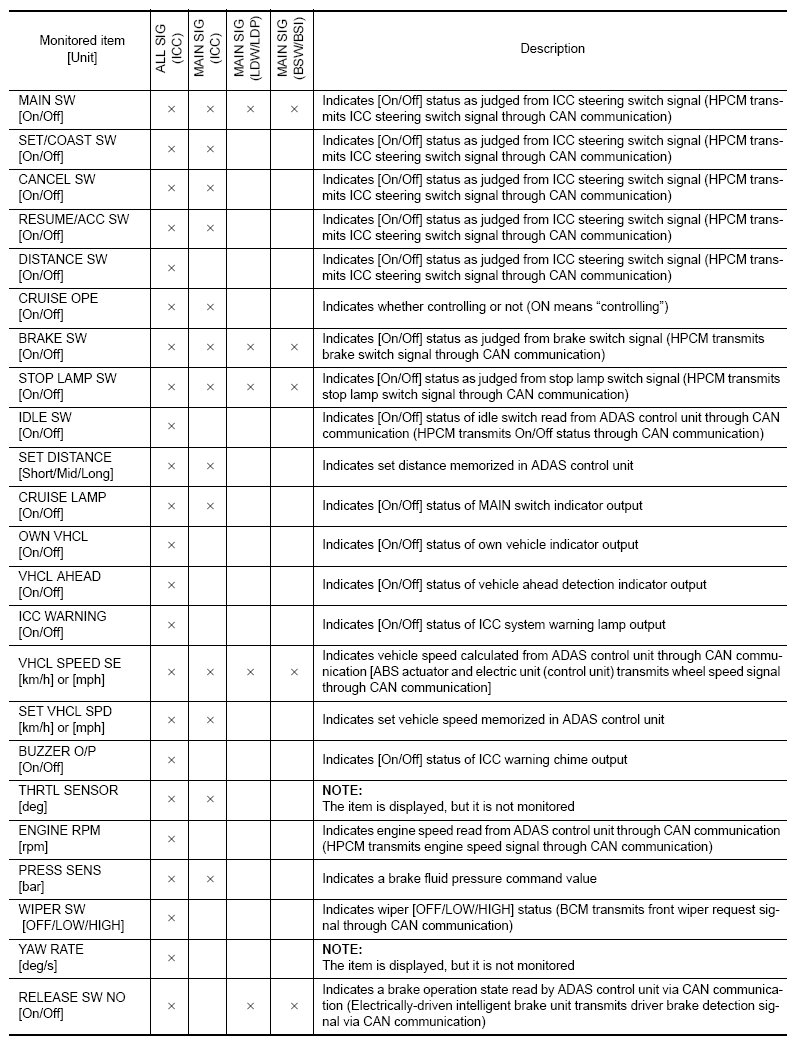

Fig 2: CONSULT Display Items Chart (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

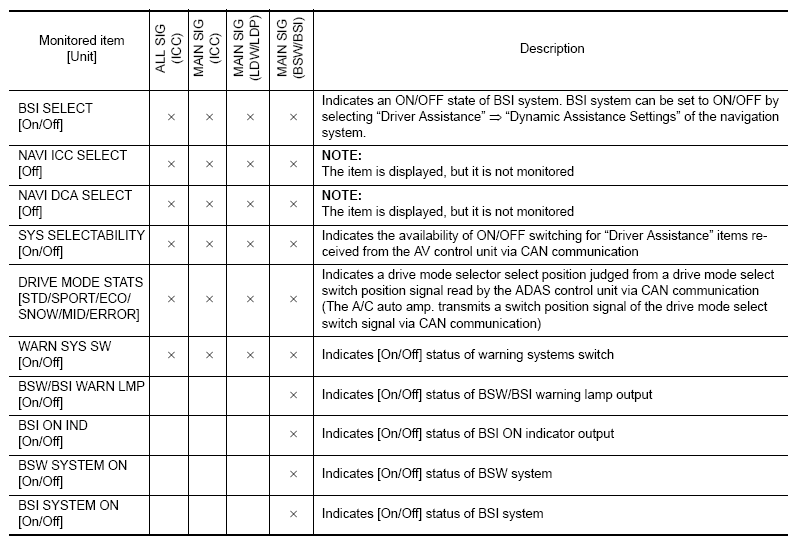

Fig 3: CONSULT Display Items Chart (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

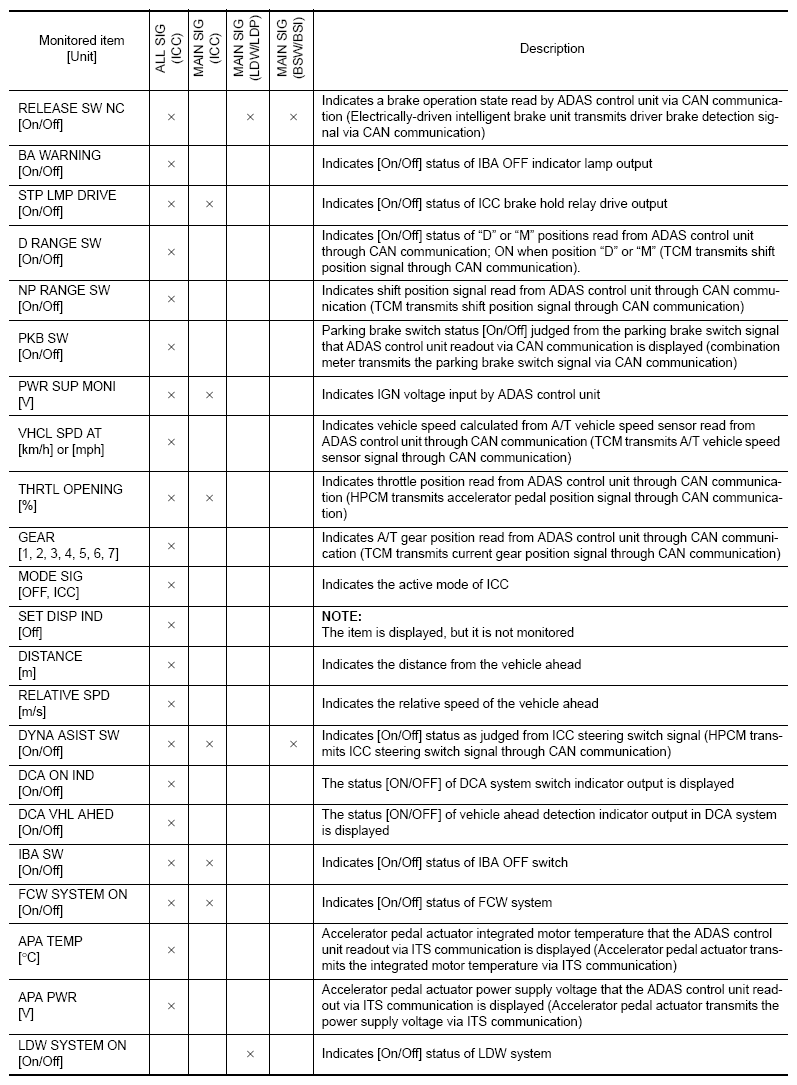

Fig 4: CONSULT Display Items Chart (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.
