INTELLIGENT KEY SYSTEM/READY SET FUNCTION: System Diagram

WARNING: This page is about a different variant/trim than selected.

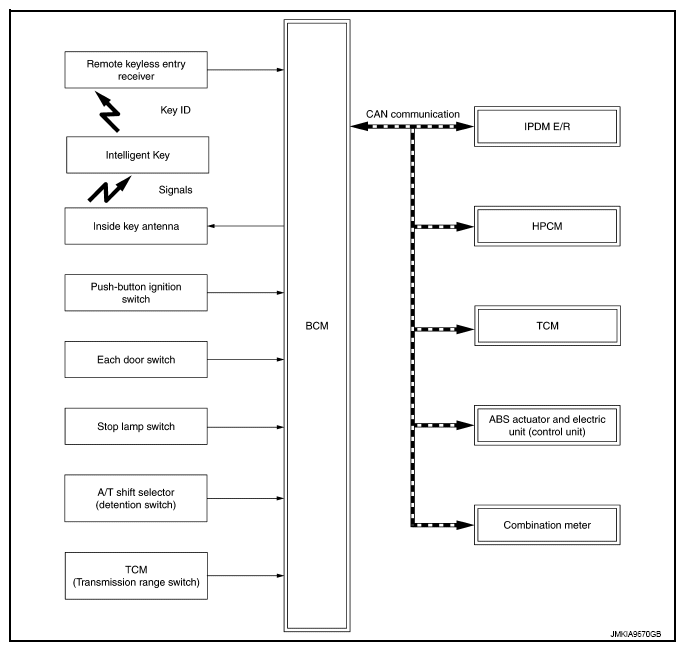

Fig 1: Intelligent Key System/Ready Set Function - System Diagram
G09422171Courtesy of NISSAN NORTH AMERICA, INC.
