Hybrid Control System Connector End Views

WARNING: This page is about a different variant/trim than selected.

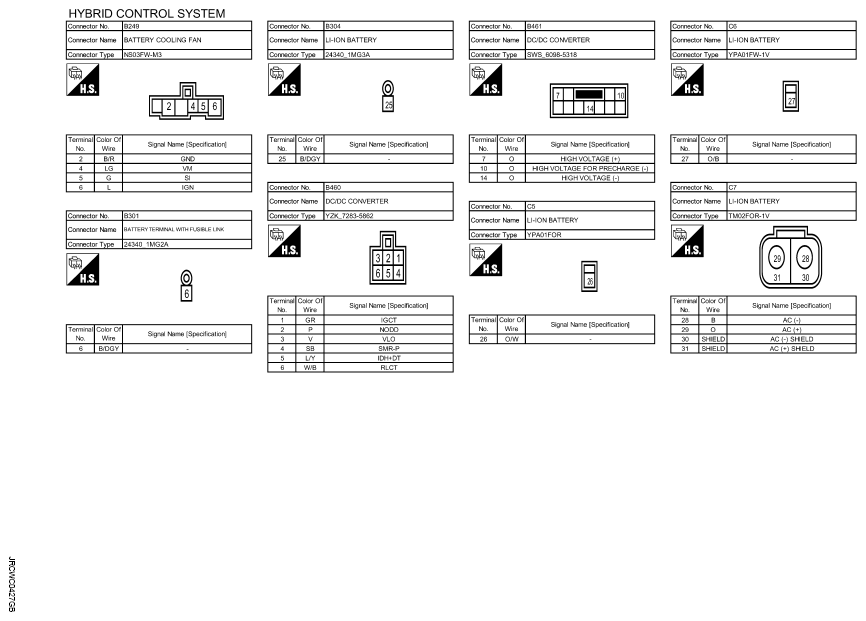

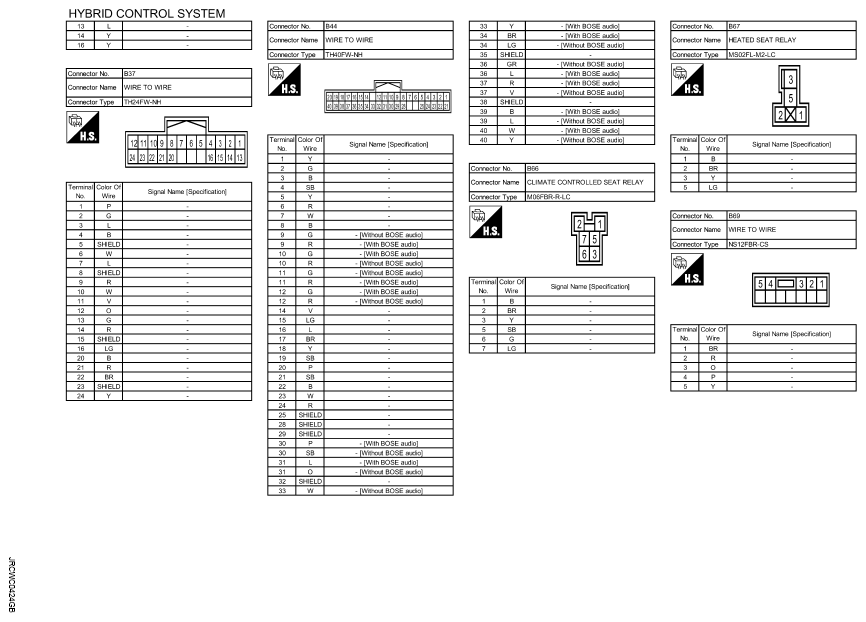

Fig 1: Hybrid Control System Connector End View (1 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

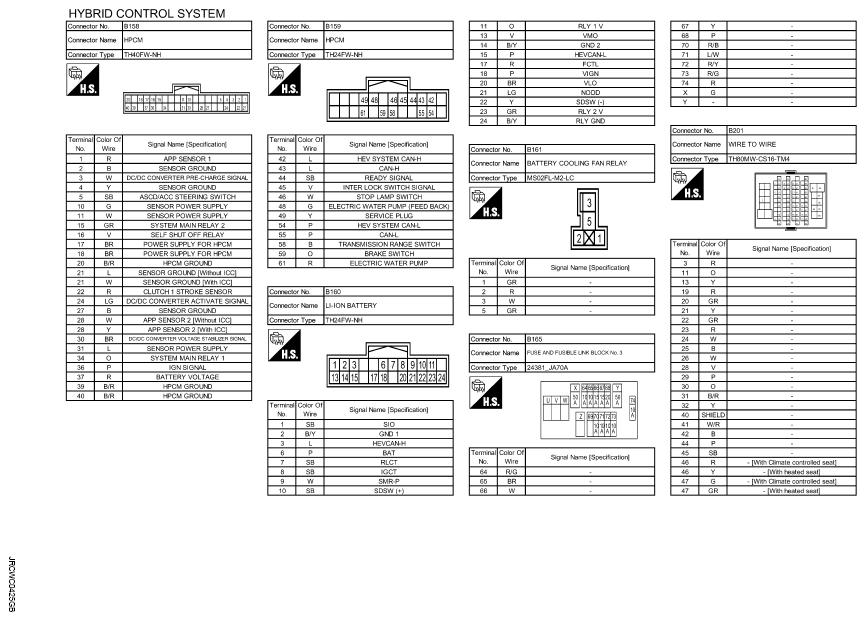

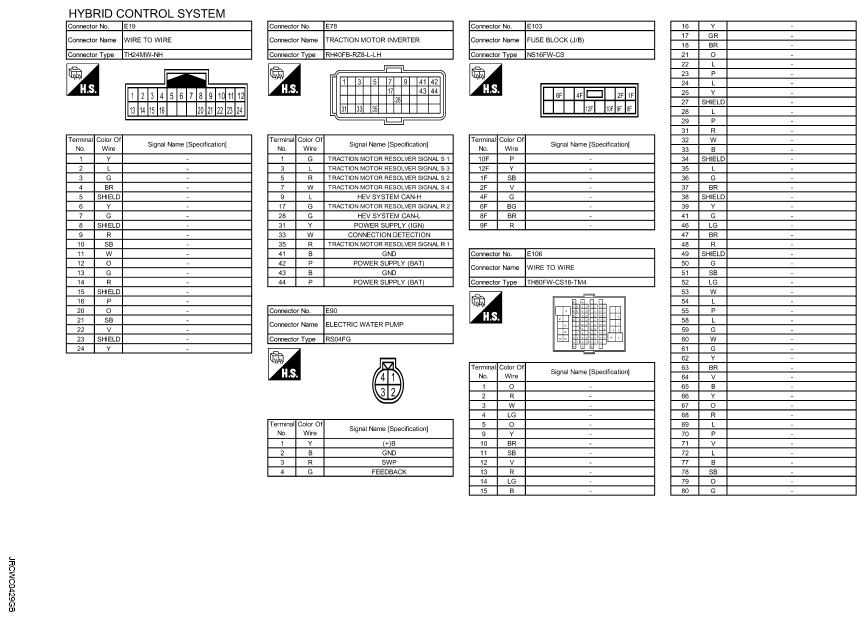

Fig 2: Hybrid Control System Connector End View (2 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

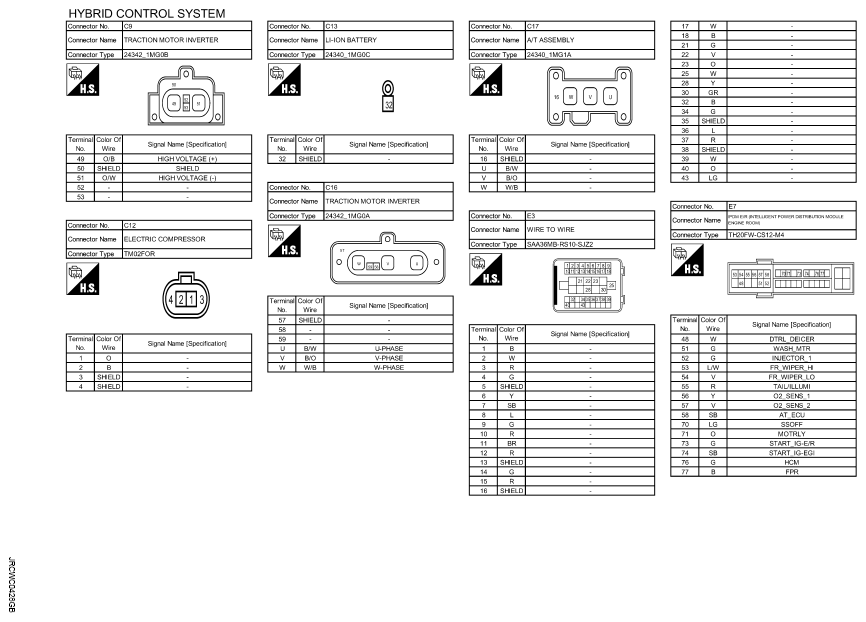

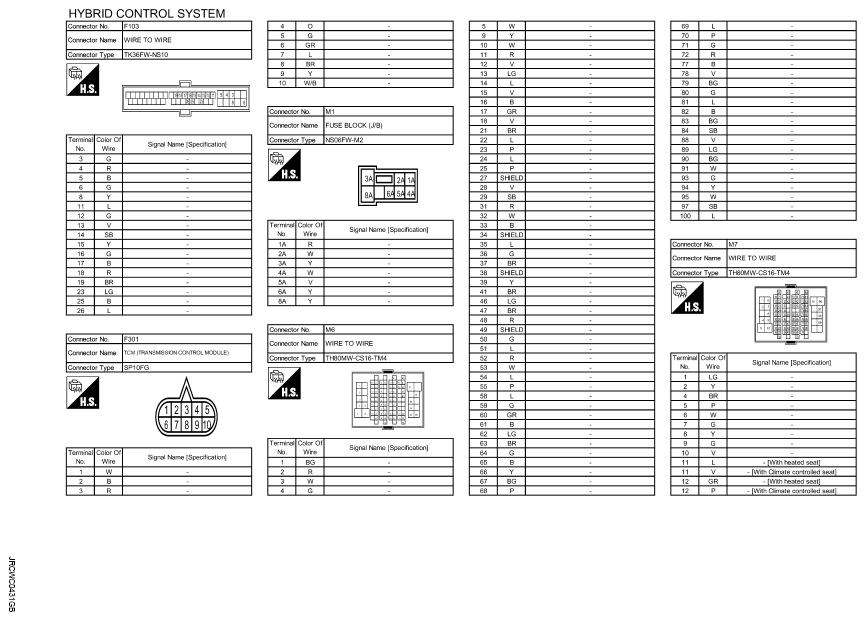

Fig 3: Hybrid Control System Connector End View (3 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

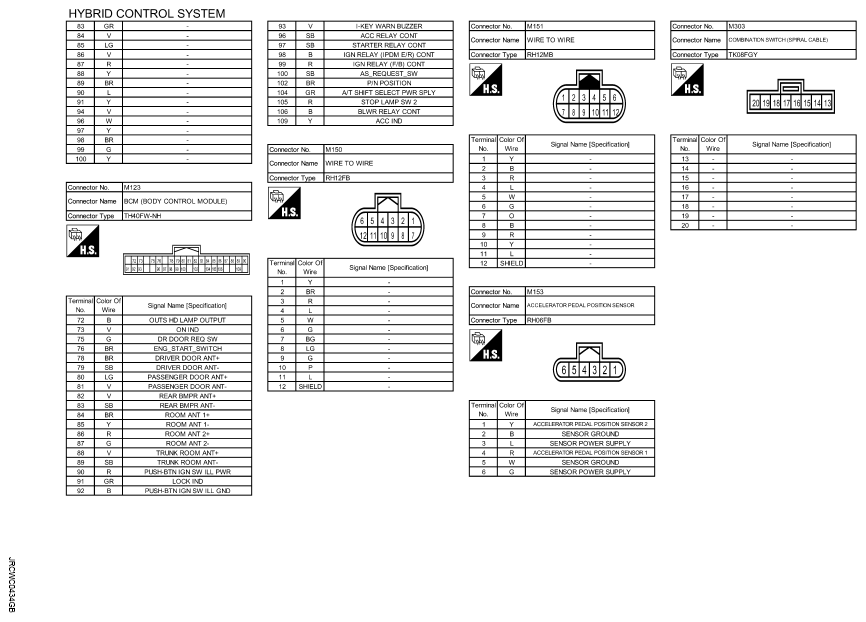

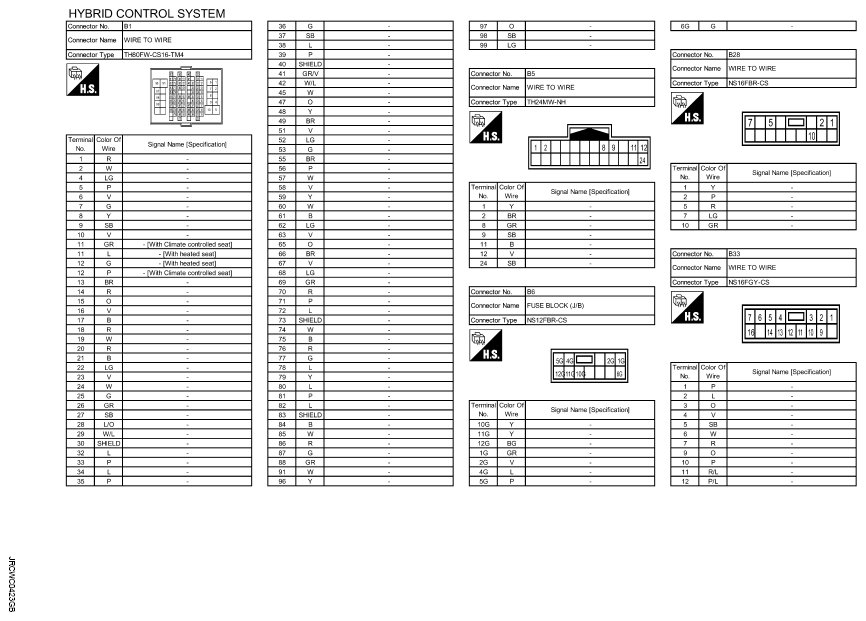

Fig 4: Hybrid Control System Connector End View (4 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

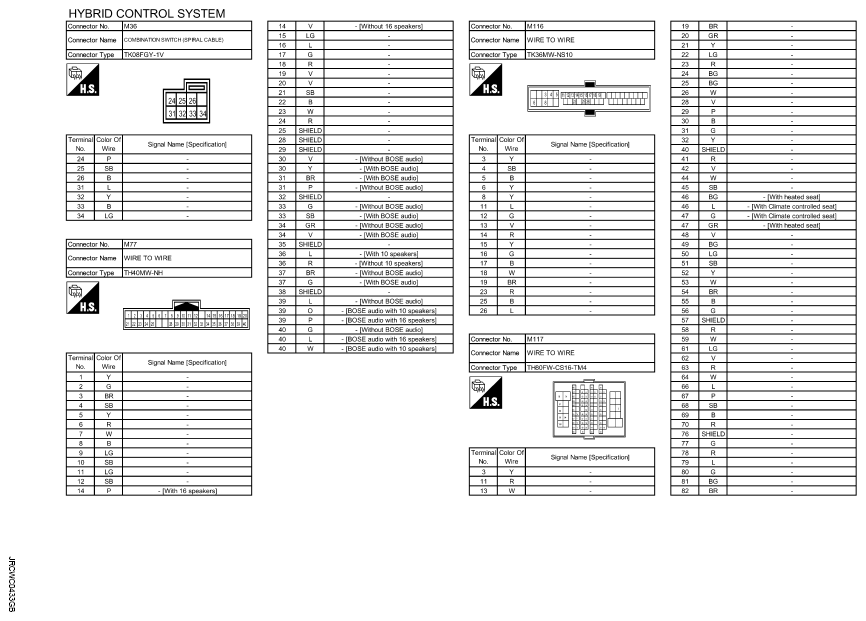

Fig 5: Hybrid Control System Connector End View (5 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

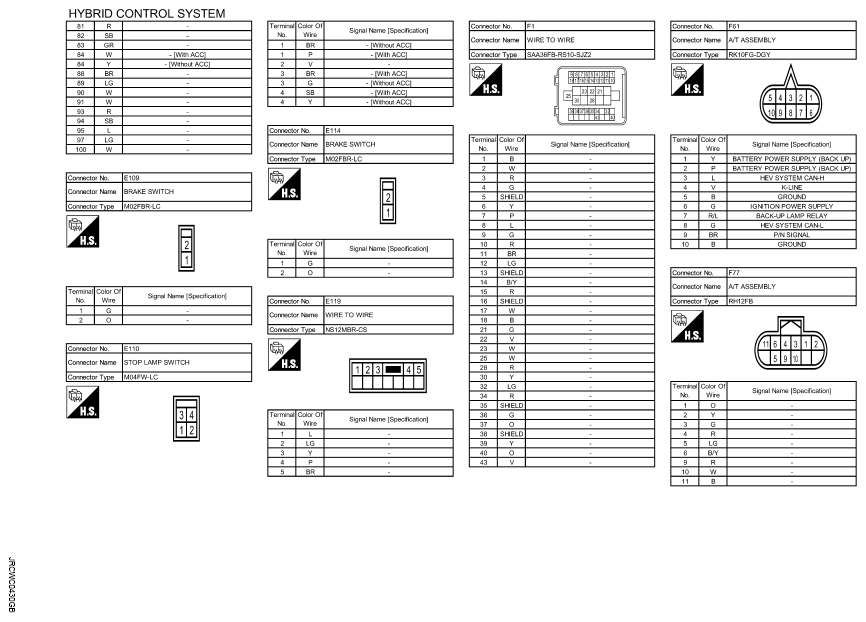

Fig 6: Hybrid Control System Connector End View (6 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

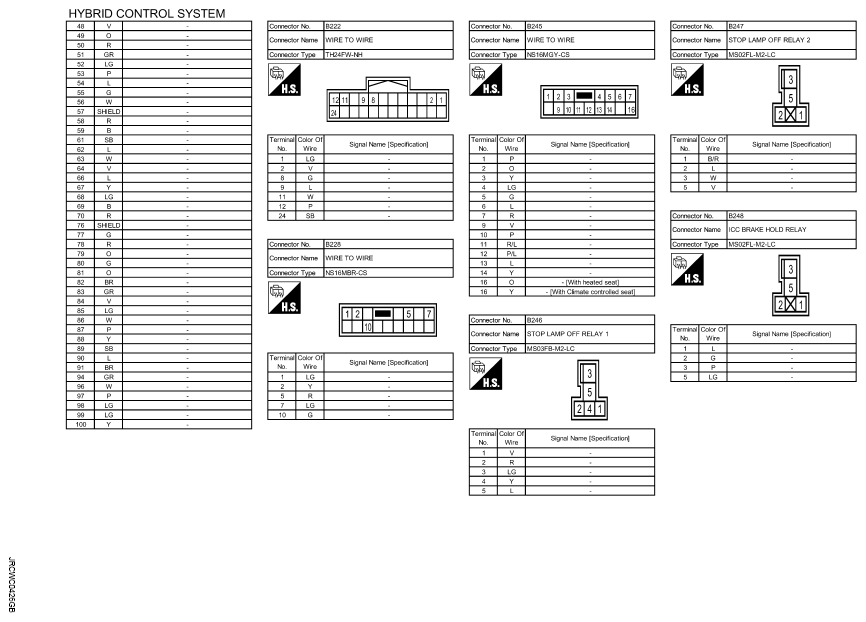

Fig 7: Hybrid Control System Connector End View (7 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

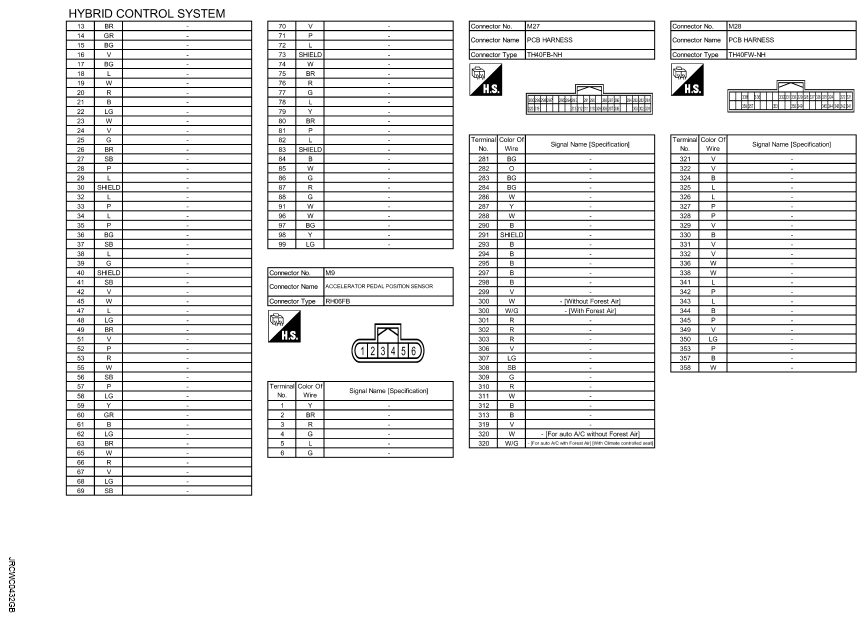

Fig 8: Hybrid Control System Connector End View (8 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Hybrid Control System Connector End View (9 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Hybrid Control System Connector End View (10 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Hybrid Control System Connector End View (11 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Hybrid Control System Connector End View (12 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.
