Engine Compartment

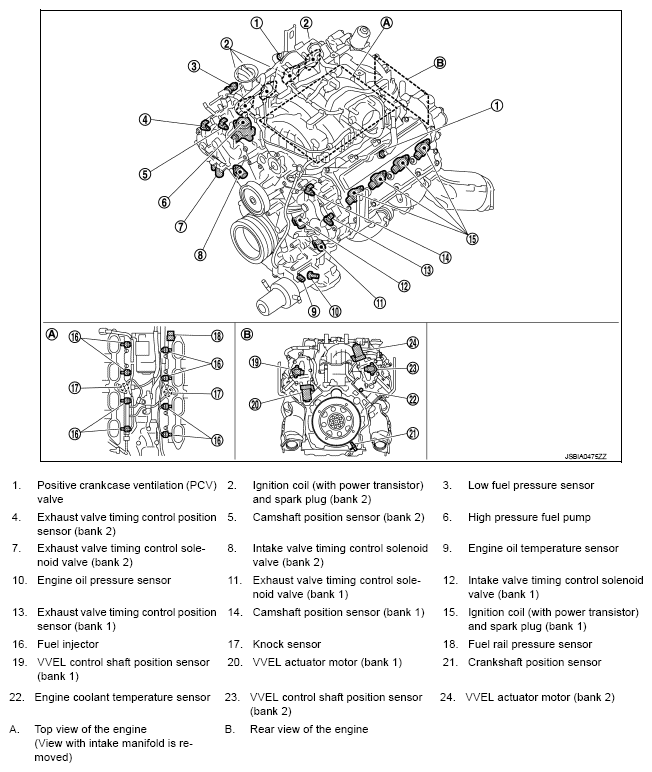

Fig 1: Engine Control System Components Location (Engine Compartment)

G09493627

Courtesy of NISSAN NORTH AMERICA, INC.
