Data Monitor

NOTE: The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

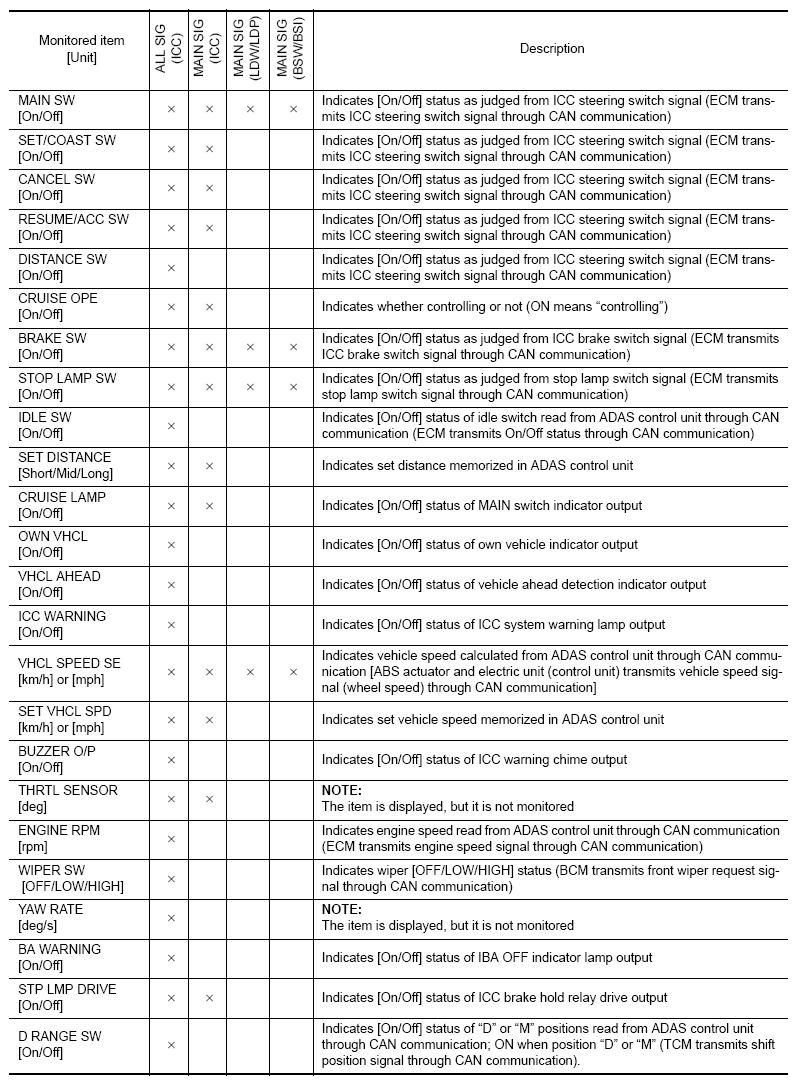

Fig 1: Data Monitor Description Table (1 Of 4)

Courtesy of N

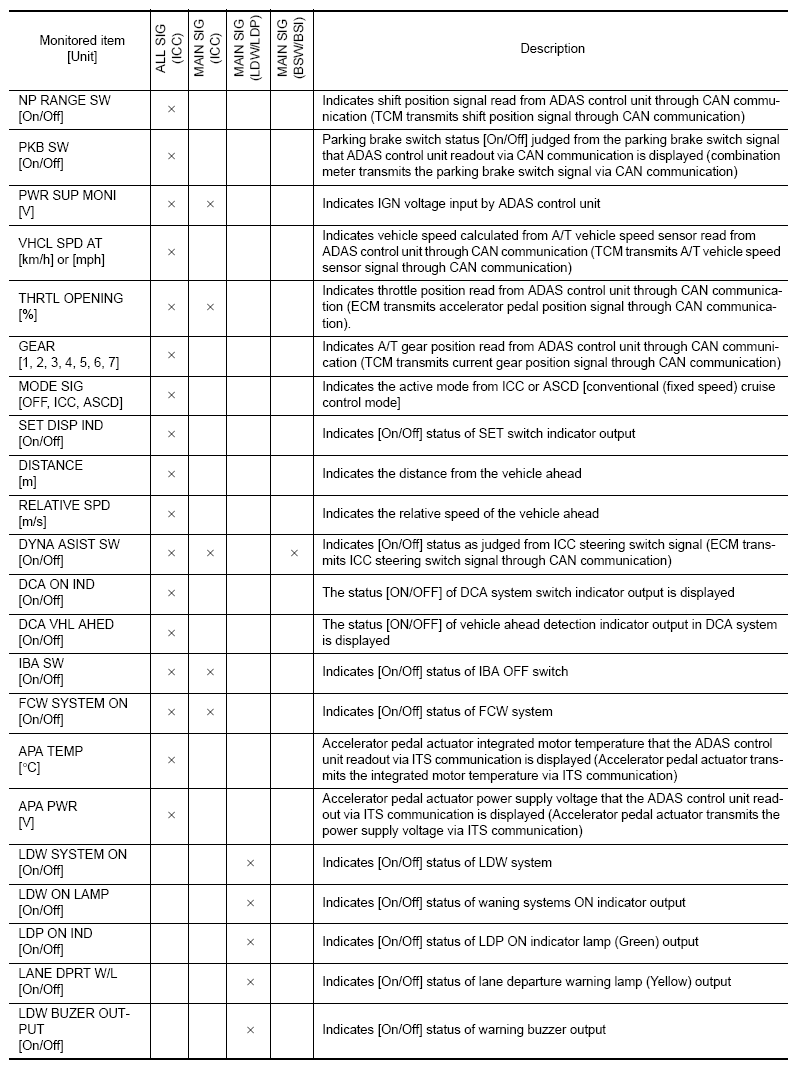

Fig 2: Data Monitor Description Table (2 Of 4)

Courtesy of N

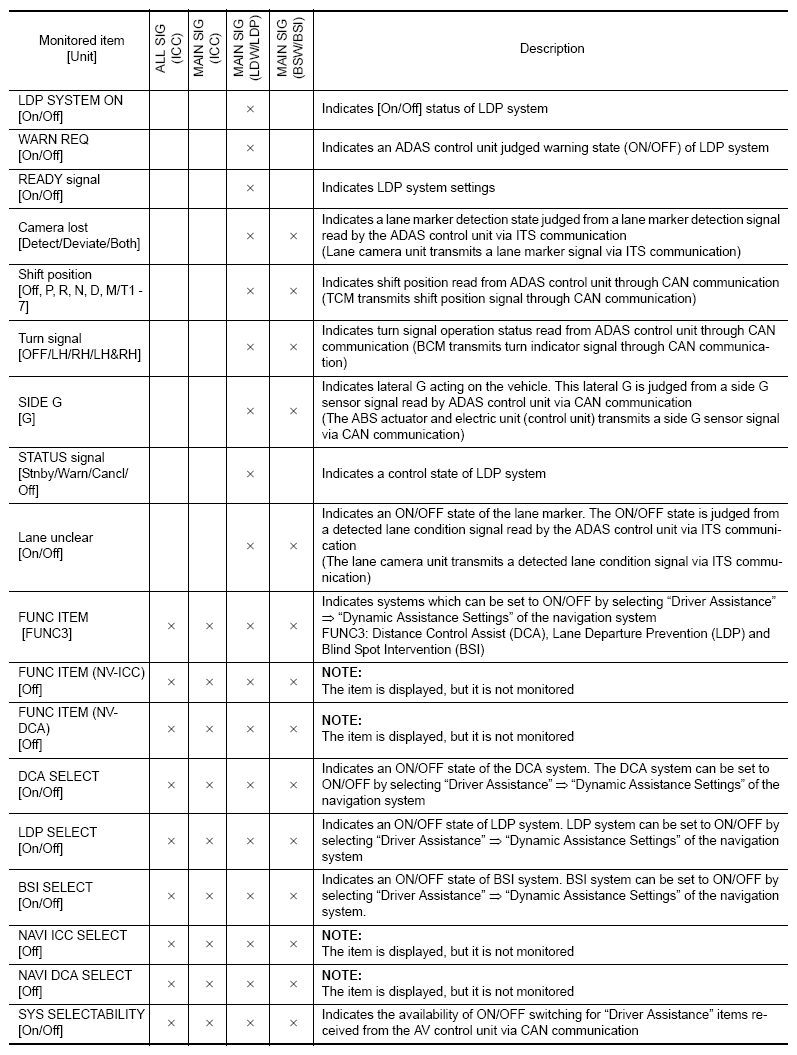

Fig 3: Data Monitor Description Table (3 Of 4)

Courtesy of N

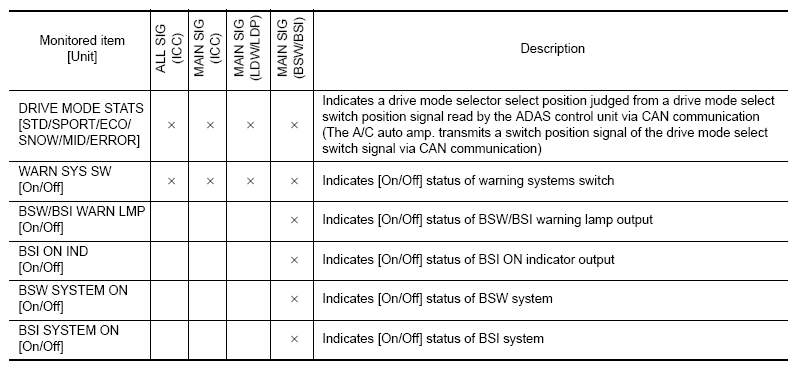

Fig 4: Data Monitor Description Table (4 Of 4)

Courtesy of N
