System Diagram

WARNING: This page is about a different variant/trim than selected.

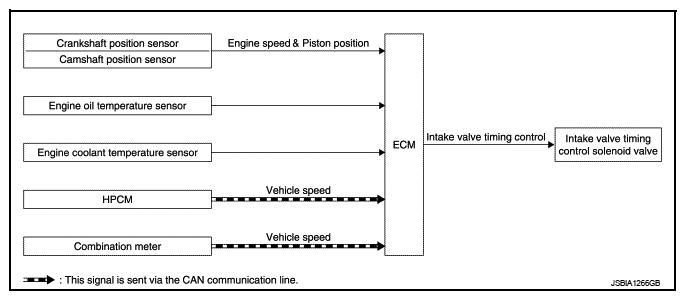

Fig 1: Intake Valve Timing Control System Communication Diagram
G09417172Courtesy of NISSAN NORTH AMERICA, INC.
