Power Control System (Power Distribution System) (Coupe)
>>
DTC/Circuit Diagnosis
>>
Power Distribution System
>>
Connector End Views
Connector End Views

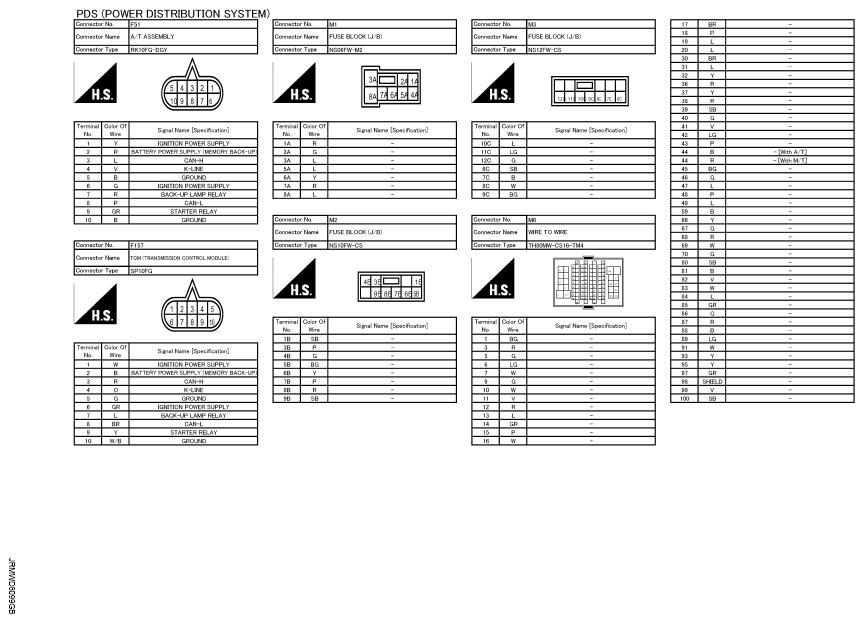

Fig 1: Power Distribution System Connector End Views (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

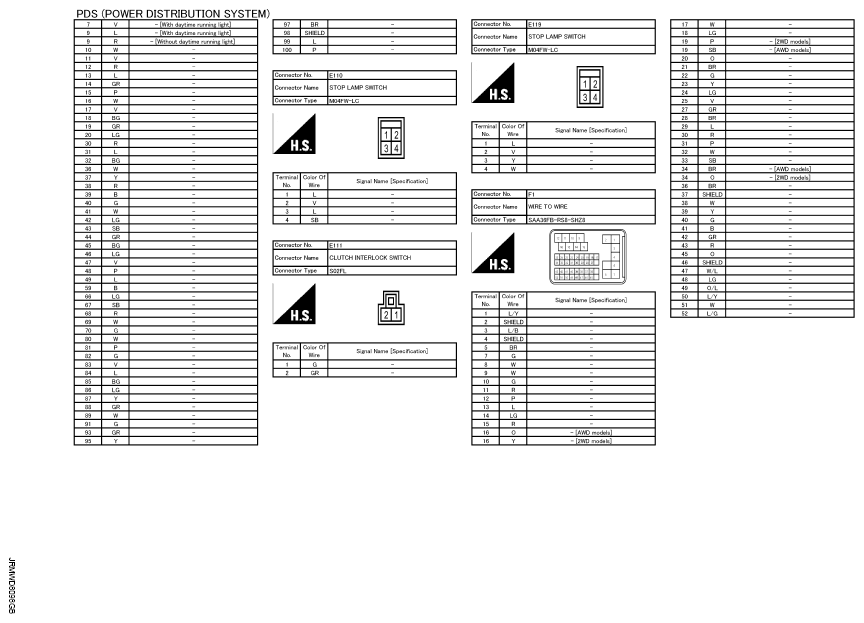

Fig 2: Power Distribution System Connector End Views (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

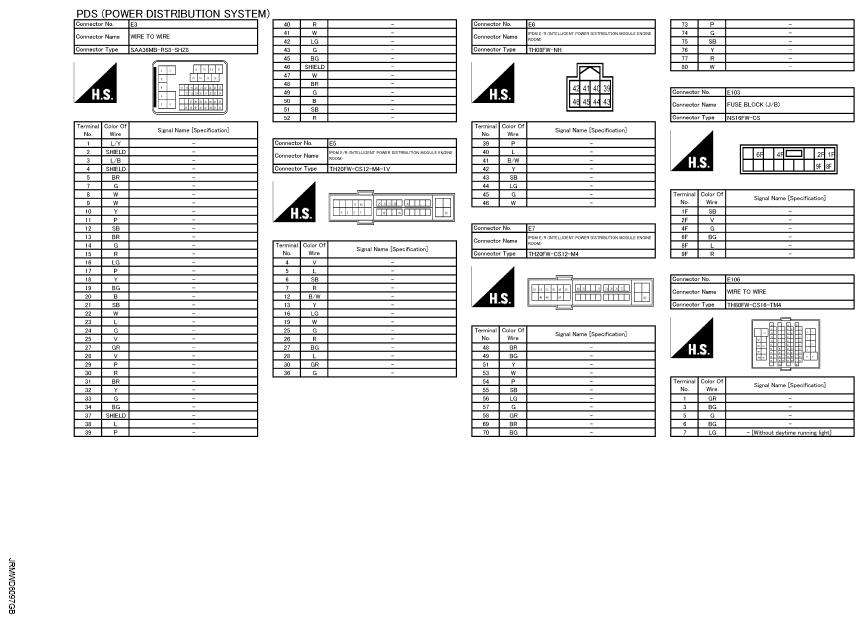

Fig 3: Power Distribution System Connector End Views (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

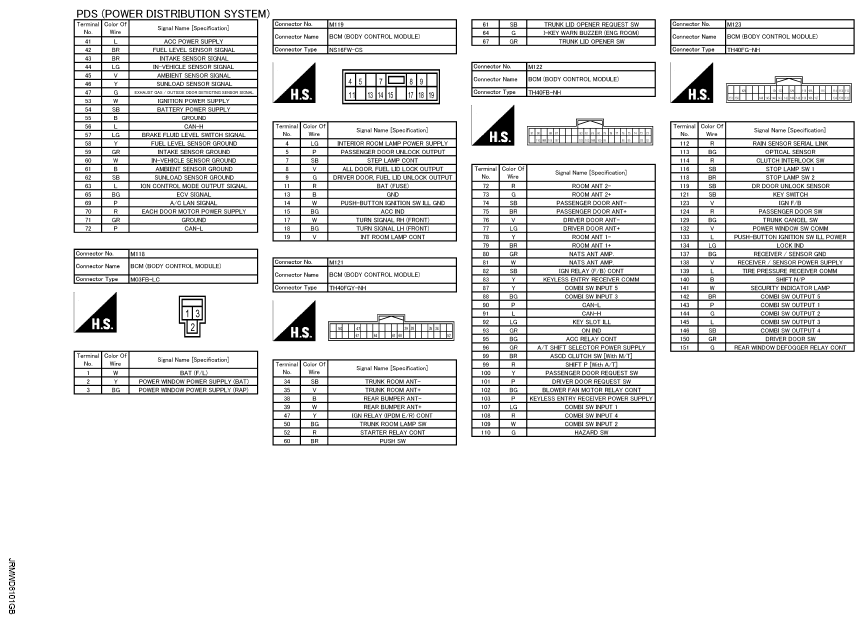

Fig 4: Power Distribution System Connector End Views (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

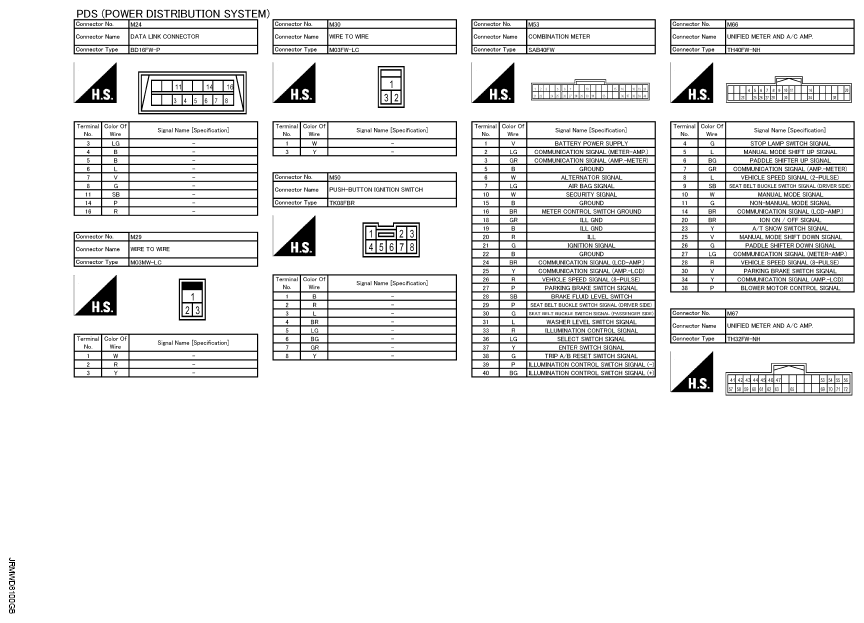

Fig 5: Power Distribution System Connector End Views (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
