Check Shift Pin

  1. Set the control bracket to a vise and then install check shift pin (1) to control bracket.
  2. Tighten check shift pin to the specified torque.

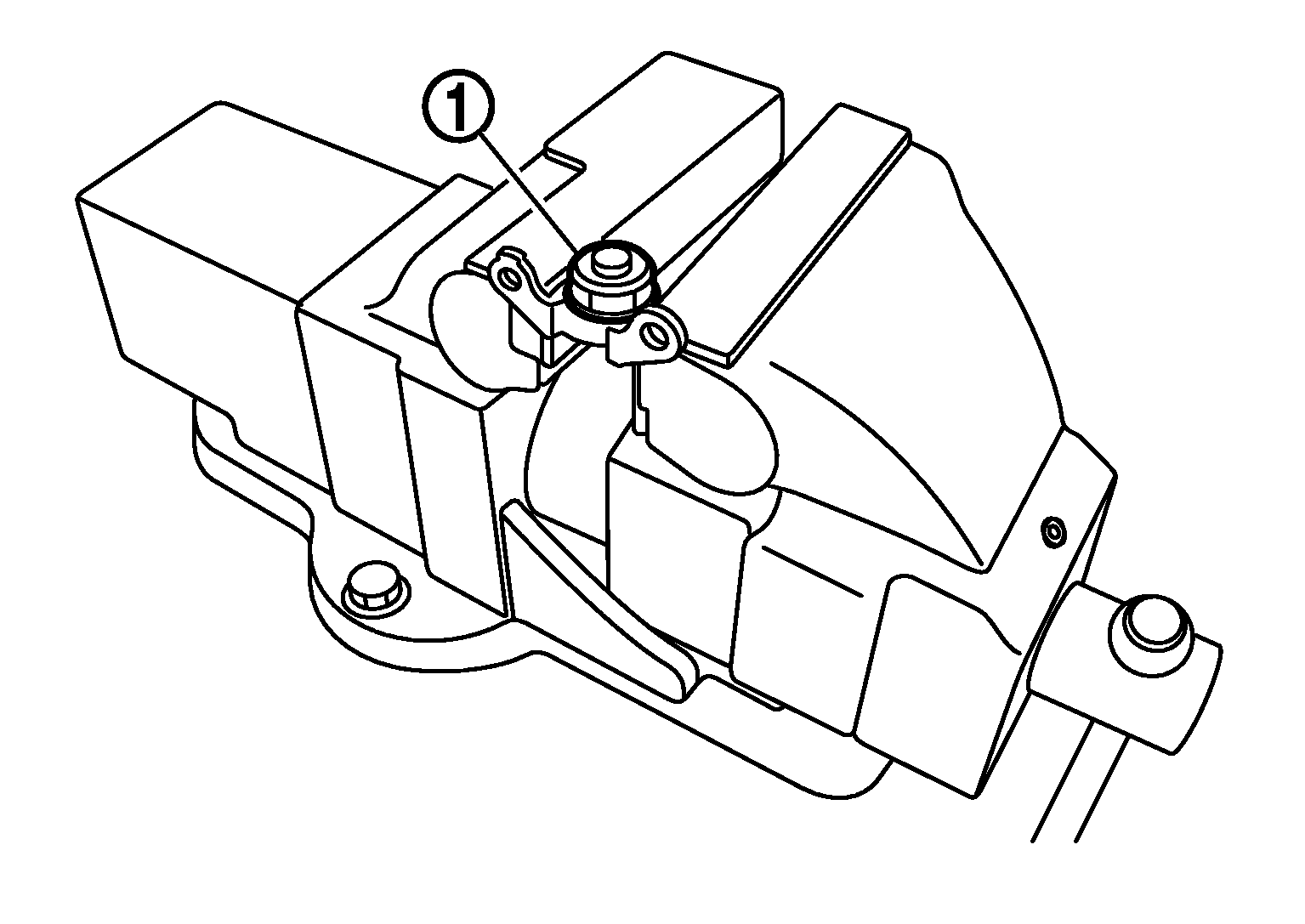

    Fig 1: Identifying Check Shift Pin To Control Bracket
    G05973300Courtesy of NISSAN NORTH AMERICA, INC.
