Main Drive Gear: Assembly

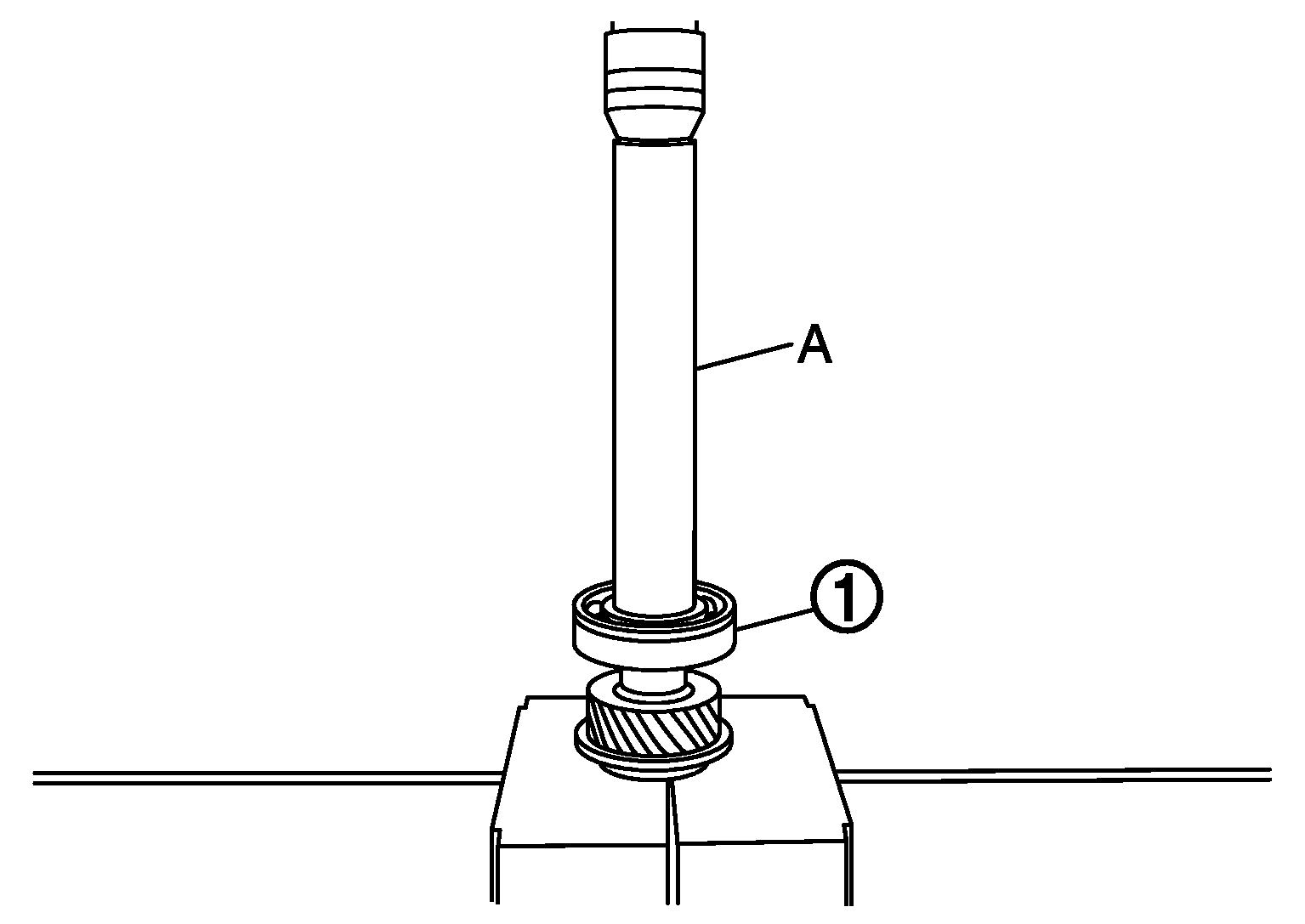

Install main drive gear bearing (1) to main drive gear with a pressing machine using the drift (A) [SST: KV32102700 (-)].

Fig 1: Installing Main Drive Gear Bearing To Main Drive Gear Using Pressing Machine
Courtesy of NISSAN NORTH AMERICA, INC.

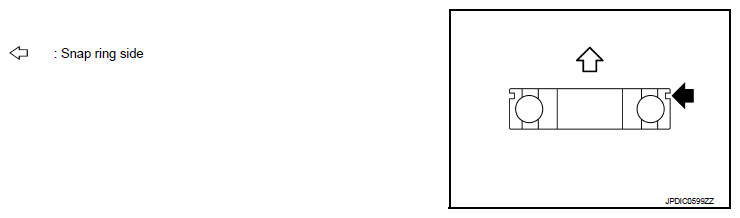

CAUTION: Be careful with the orientation of main drive gear bearing.

Fig 2: Locating Main Drive Gear Bearing Grooved
Courtesy of NISSAN NORTH AMERICA, INC.

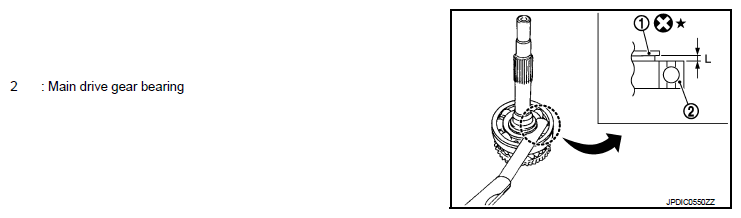

Select and install snap ring (1) to main drive gear so that the end play "L" is adjusted to the standard value. For selecting snap ring, refer to the latest parts information.

Fig 3: Installing Snap Ring To Main Drive Gear
Courtesy of NISSAN NORTH AMERICA, INC.

End play "L": Refer to "END PLAY ".
Apply gear oil to main pilot bearing and 5th baulk ring.
Install main pilot bearing, pilot bearing spacer, and 5th baulk ring to main drive gear.

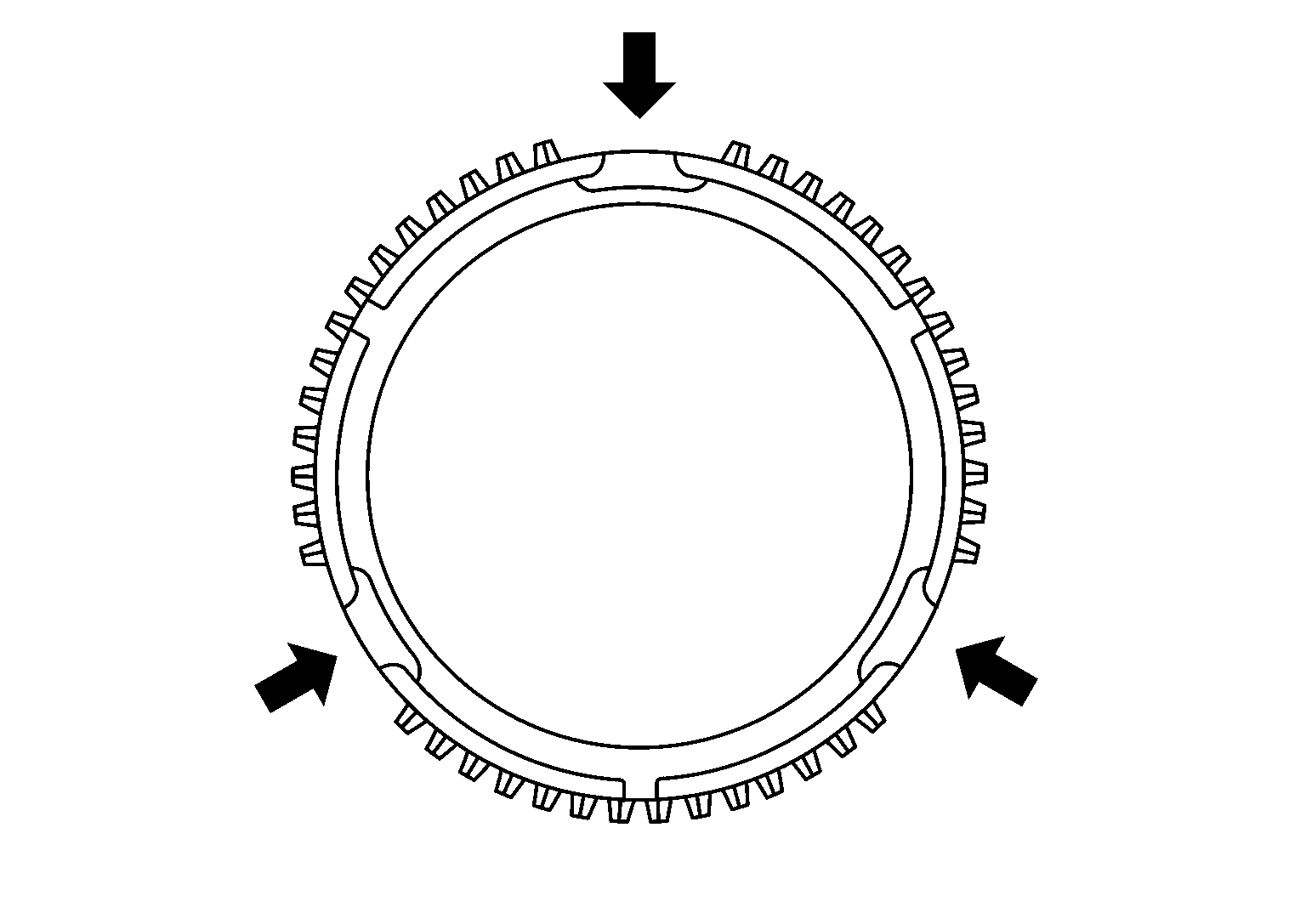

NOTE: 5th and 6th baulk rings have three spaces that four gear teeth are missing as shown in the figure below.

Fig 4: Locating Baulk Rings Missing Gear
Courtesy of NISSAN NORTH AMERICA, INC.
