Inspection and Adjustment: Notes

Check dimension (A) between the converter housing and torque converter.

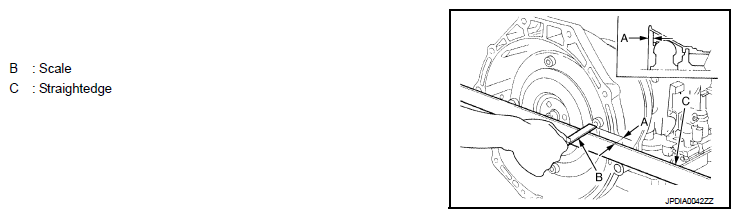

Fig 1: Measuring Torque Convertor Distance From Transmission Housing End

Courtesy of NISSAN NORTH AMERICA, INC.

Dimension "A": Refer to  "TORQUE CONVERTER ".
