Exploded View

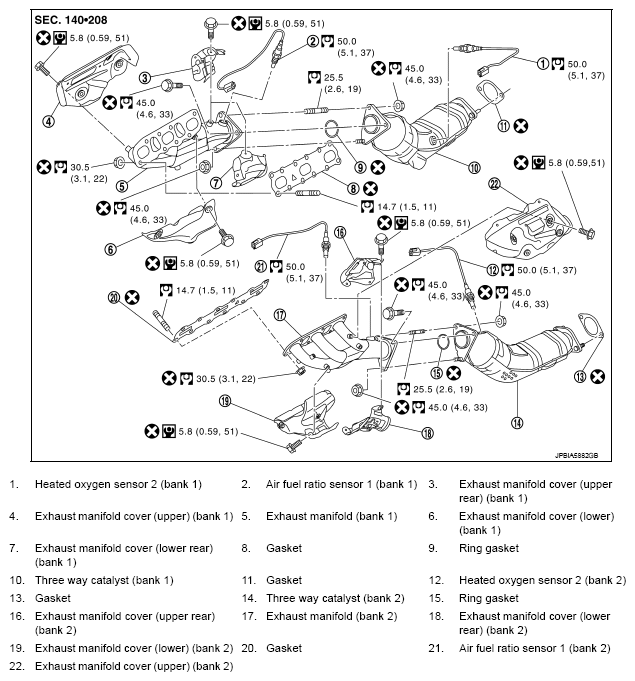

Fig 1: Exploded View Of Exhaust Manifold With Torque Specifications

G09462585

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
