Infiniti
>>
2014
>>
Q60 Base, 2D Convertible, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Cooling System (Mechanical)
>>
Engine Cooling System (Convertible)
>>
Removal And Installation
>>
Radiator
>>
Exploded View
Exploded View

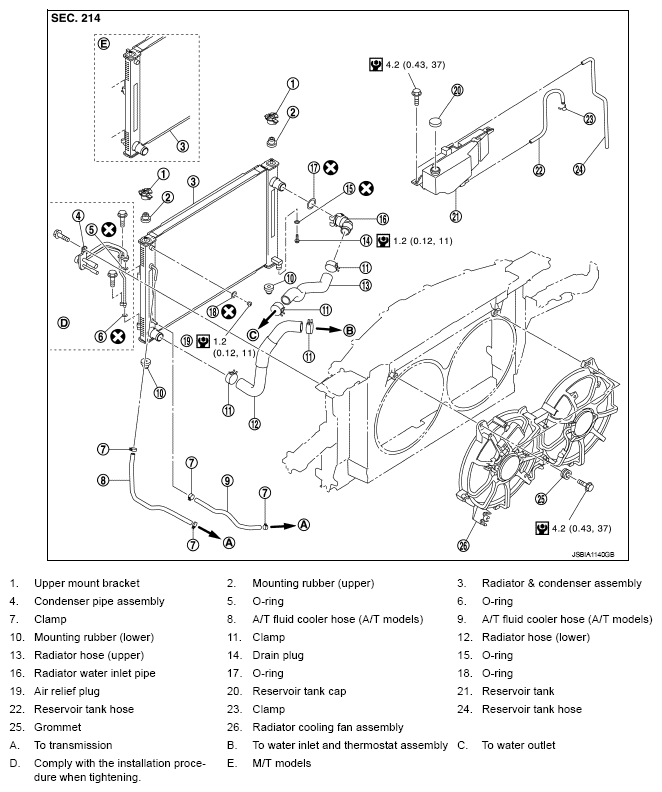

Fig 1: Exploded View Of Radiator With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
