Charging System
>>
Connector End Views
Connector End Views

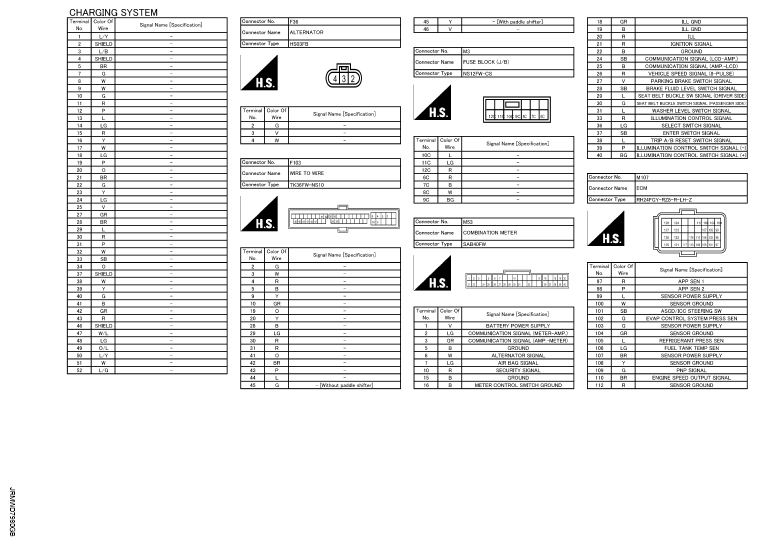

Fig 1: Charging System Connector End Views (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

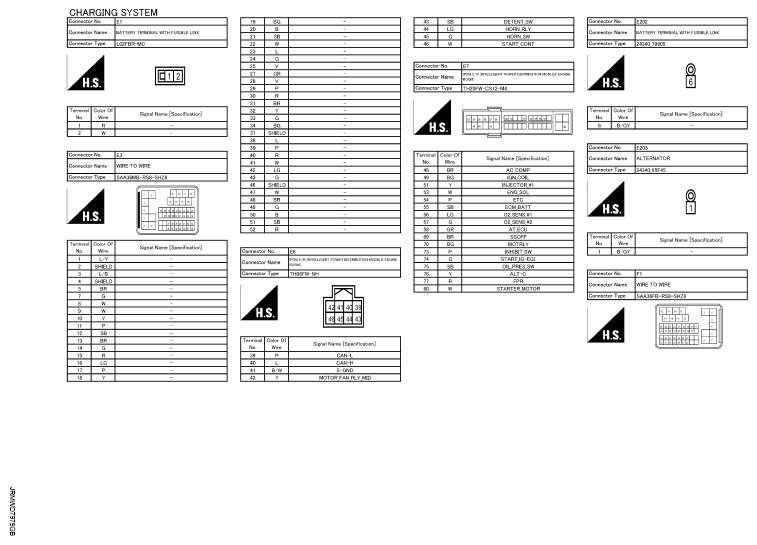

Fig 2: Charging System Connector End Views (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Charging System Connector End Views (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
