Voluntary Safety Recall Campaign 2014 Q50; Direct Adaptive Steering System Reprogramming (ITB14-003)

WARNING: This page is about the Q50 Hybrid Premium, AWD, which is a different variant/trim than selected.
Publication date: 2014-01-17
Reference number: ITB14-003

VOLUNTARY SAFETY RECALL CAMPAIGN 2014 Q50; DIRECT ADAPTIVE STEERING SYSTEM REPROGRAMMING

VOLUNTARY SAFETY RECALL CAMPAIGN 2014 Q50; DIRECT ADAPTIVE STEERING SYSTEM REPROGRAMMING

SERVICE CAMPAIGN BULLETIN

Reference Number(s): ITB14-003, Date of Issue:  January 17, 2014
INFINITI: 2014 Q50; 2014 Q50 Hybrid
CAMPAIGN I.D.#/NHTSA #: R1310/13V-588
APPLIED VEHICLES: 2014 Q50 (V37); 2014 Q50 Hybrid (V37)
NOTE: Check Service COMM to confirm campaign eligibility.

INTRODUCTION

Infiniti is conducting a Voluntary Safety Recall Campaign on certain specific Model Year 2014 Q50 sedan and hybrid vehicles to reprogram the Direct Adaptive Steering System (DAST). Only 38 vehicles are subject to this campaign. Affected dealers have already been contacted.

IDENTIFICATION NUMBER

Infiniti has assigned identification number R1310 to this campaign. This number must appear on all communication and documentation of any nature dealing with this campaign.

DEALER RESPONSIBILITY

It is the dealer's responsibility to check Service Comm for the campaign status on each vehicle falling within the range of this voluntary safety recall which for any reason enters the service department. This includes vehicles purchased from private parties or presented by transient (tourist) owners and vehicles in a dealer's inventory. Federal law requires that new vehicles in dealer inventory which are the subject of a safety recall must be corrected prior to sale. Failure to do so can result in civil penalties by the National Highway Traffic Safety Administration.  While federal law applies only to new vehicles, Infiniti strongly encourages dealers to correct any used vehicles in their inventory before they are retailed.

SERVICE PROCEDURE

IMPORTANT: Make sure this campaign applies to the vehicle you are working on by using the VIN and checking Service COMM.
  1. Before continuing, it is IMPORTANT to make sure:
    • ASIST on the CONSULT PC has been freshly synchronized (updated).
    • All CONSULT related software updates (if any) have been installed.
      NOTE: The CONSULT PC automatically gets all reprogramming software during ASIST synchronization.
    CAUTION:
    • Connect the GR8 to the vehicle 12 volt battery and set to ECM power supply mode. If the vehicle battery voltage drops below 12.0V or rises above 13.5V  during reprogramming, DAST may be damaged.
    • Be sure to turn OFF all vehicle electrical loads.

      If a vehicle electrical load remains ON, DAST may be damaged  .

    • Be sure to connect the AC Adapter.

      If the CONSULT PC battery voltage drops during reprogramming, the process will be interrupted and DAST may be damaged  .

    • Turn off all external Bluetooth® devices (e.g., cell phones, printers, etc.) within range of the CONSULT PC and the VI. If Bluetooth® signal waves are within range of the CONSULT PC during reprogramming, reprogramming may be interrupted and DAST may be damaged  .
  2. Once all ASIST and CONSULT related updates have been performed, attach the CONSULT PC to the vehicle.
    • Connect the plus VI to the CONSULT PC with the USB cable  .
    • Connect the AC adapter to the CONSULT PC.
    IMPORTANT: Reprogramming Procedure must be performed 3 separate times  to reprogram the control units for DAST 1, DAST 2, and EPS/DAST 3.
  3. Turn ON the CONSULT PC, and then open CONSULT III plus (C-III plus).
    NOTE: Make sure all applications other than C-III plus are closed.
  4. Press the ignition switch twice without  depressing the brake pedal.
    • The meter and gauges will illuminate.
      CAUTION: Do Not  start the engine, the DAST may be damaged. (For Hybrid vehicles, make sure the Ready light is OFF.)
      NOTE: Make sure ALL  accessories are turned OFF.
  5. Erase all stored DTCs as follows:
    1. Wait for the plus VI to be recognized.
    2. Select Diagnosis (All Systems)  and Confirm  .
    3. Wait for system call to complete.
    4. Erase all DTCs.

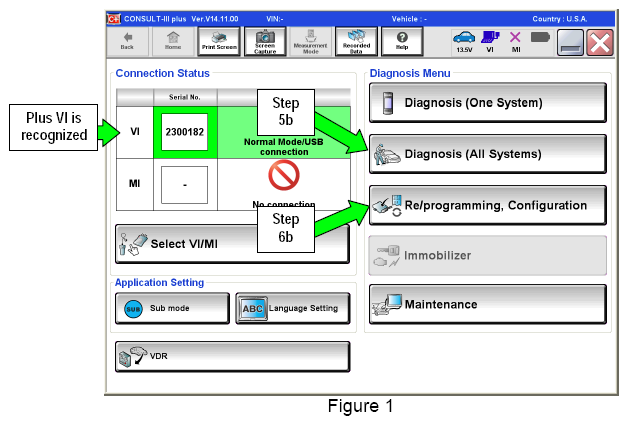

  6. Go to Re/programming, Configuration.
    1. Select the Home  button and then YES  to return to the screen shown in Figure 1.
    2. Select Re/programming, Configuration.
      G09125726

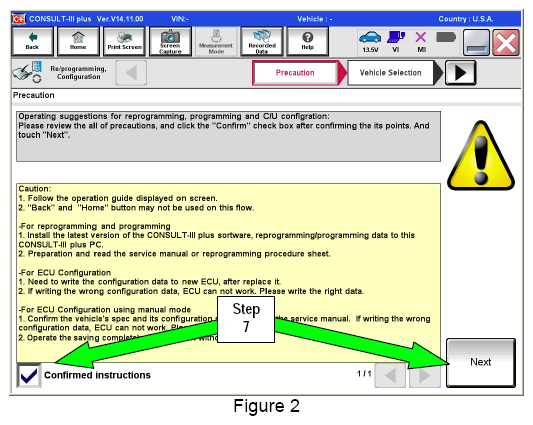

  7. Check the box for Confirmed Instructions  , and then select Next  .
    G09125727

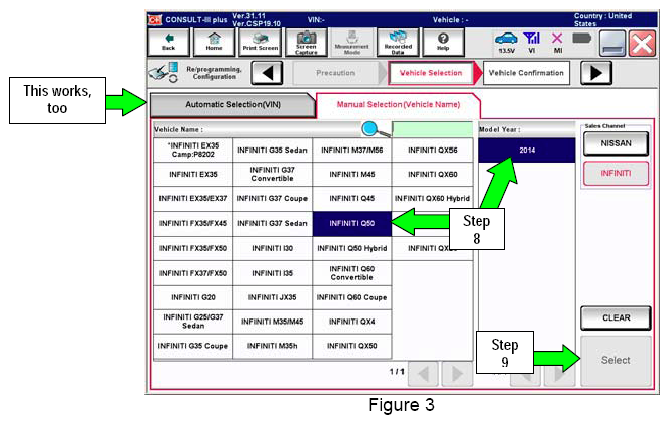

  8. Select Q50 or Q50 Hybrid  and 2014,  or Automatic Selection (VIN).
    • If Automatic Selection (VIN)  is selected, or the screen in Figure 3 does not display, skip to step 10.
  9. Select Select  .
    G09125728

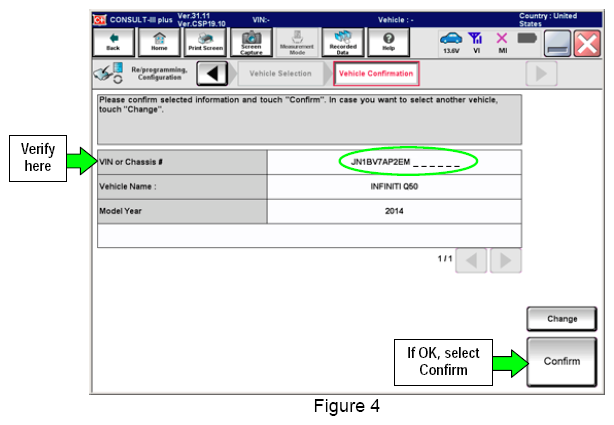

  10. Verify the VIN or Chassis #  matches that of the vehicle.
    • If the correct VIN is displayed, select Confirm  .
      G09125729
      NOTE: Write the last 6 digits of the VIN on the repair order. You will need it later in the procedure.

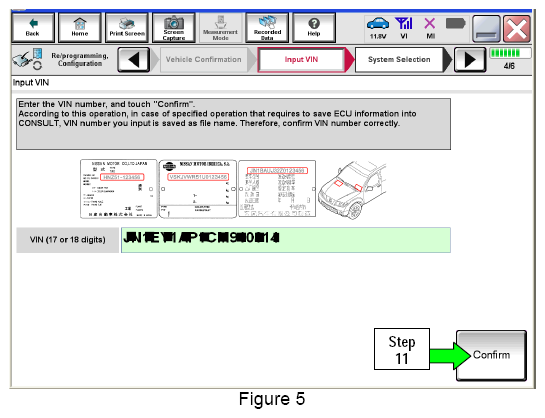

  11. Select Confirm  again.
    G09125730

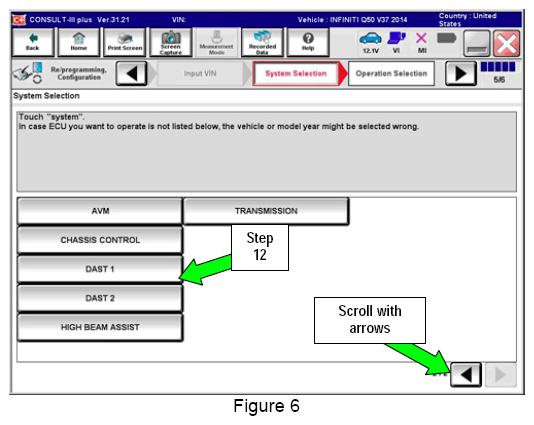

  12. Use the page arrows to scroll and select the correct control unit  to be reprogrammed.

    Make sure to reprogram the control units in this order:

    DAST 1,  then DAST 2,  and then EPS/DAST 3

    NOTE: DAST 1 and DAST 2 are shown in Figure 6; EPS/DAST 3 is not shown.
    G09125731

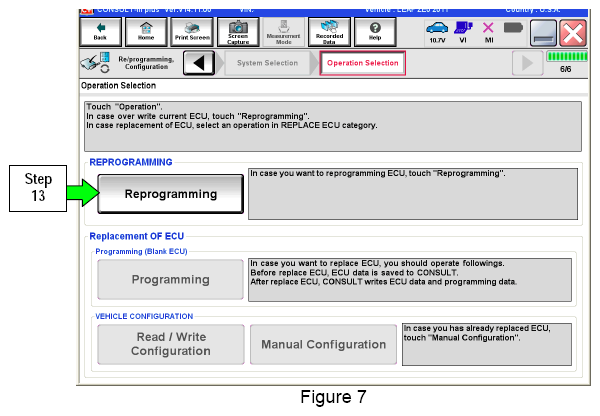

  13. Wait for System Call to complete and then select Reprogramming.
    G09125732

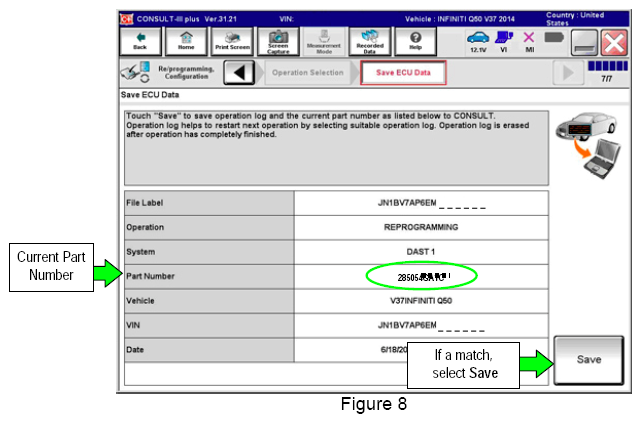

  14. When you get to the screen shown in Figure 8, confirm reprogramming applies as follows:
    1. Find the DAST Part Number  and write it on the repair order.
      NOTE: This is the current  DAST Part Number. DAST 1 is shown; DAST 2 and DAST 3 are similar.
      G09125733
    2. Compare the P/N you wrote down to the numbers in the Current Part Number  column of Table A  below:
      • If there is a match  , that reprogramming applies  . Continue with the reprogramming procedure.
      • If there is not a match  , this campaign does not apply  or it has already been done.
        NOTE: If there is no match for DAST 1, there will be no match for DAST 2 or DAST 3. You can stop. This bulletin does not apply.
      CONTROL UNIT SPECIFICATION

      MODEL CONTROL UNIT CURRENT PART NUMBER:
      2014 Q50 (V37/HV37) DAST 1 28505 - 4GA1B, 4GA1C
      DAST 2 28505 - 4BA6B, 4GA6C
      EPS/DAST 3 285H0 - 4GA5B, 4GA5C
    3. If there is a part number match as specified above, Select Save  and then continue with the reprogramming procedure on the next page.

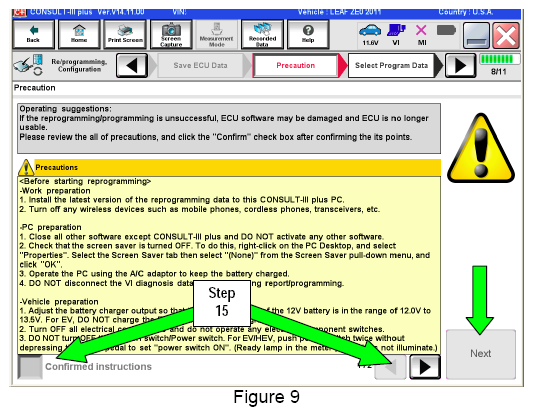

  15. Read the precautions on the C-III plus screen (use page arrow as needed). After reading, select Confirmed instructions  , and then select Next.
    G09125734

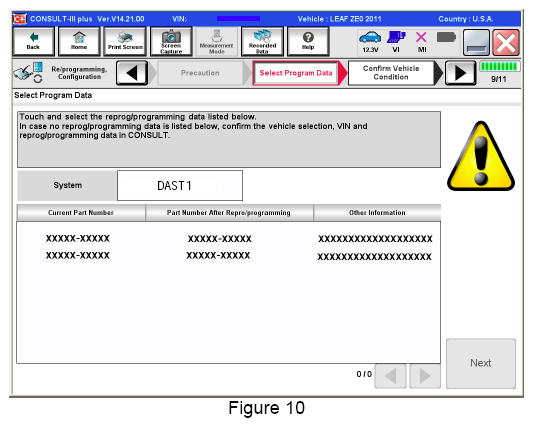

    NOTE: In some cases, more than one new P/N for reprogramming is available.
    • If more than one new P/N is available, the screen in Figure 10 will display.
    • Select and use the reprogramming option that does not  have the message "Caution! Use ONLY with ITBXX-XXX".
    • If you get this screen and it is blank  (no reprogramming listed), it means there is no reprogramming available for that control unit.
      G09125735

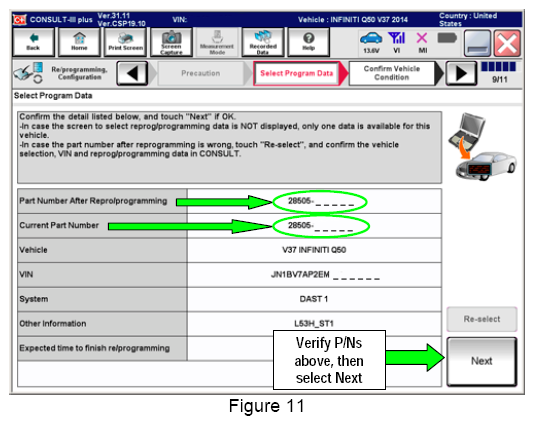

  16. Verify the Current Part Number  matches the Part Number written down in step 14, and then select Next.
    G09125736

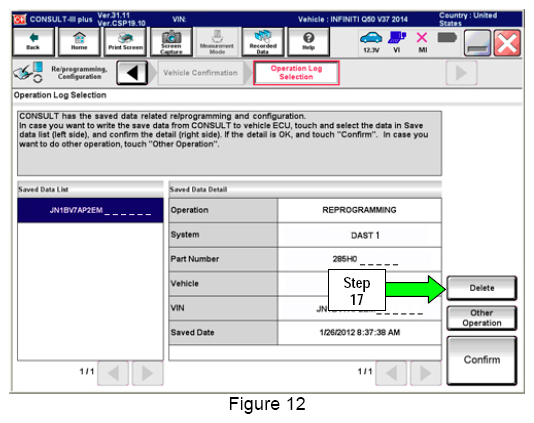

  17. If the screen in Figure 12 appears, first select Delete  then Confirm,  and then Other Operation.
    • This will erase the Saved Data List  and restart the reprogram from step 12. You must go back to step 12.
    • If no Saved Data List  is stored, Figure 13 on the next page will be displayed.
      G09125737

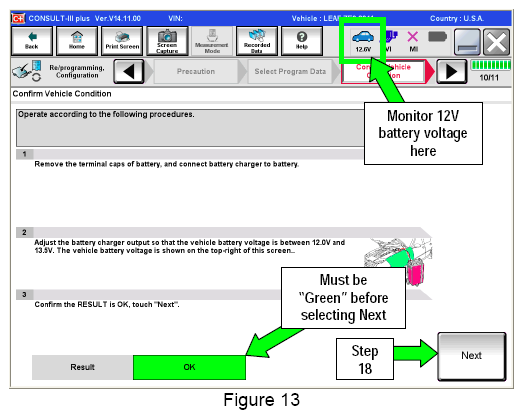

  18. Confirm battery voltage is correct, and then select Next.
    NOTE: Battery voltage must stay within the specified range to make the indicator turn green.
    G09125738

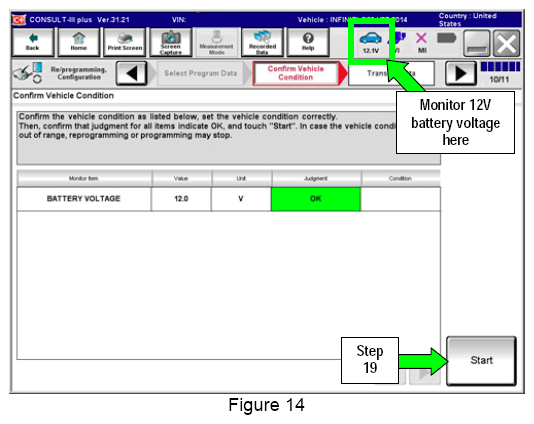

  19. With battery voltage OK (green), select Start  .
    • The reprogramming process begins when Start  is selected.
      NOTE: For reprogramming to continue, vehicle 12V battery voltage must stay within 12 volts and 13.5 volts. .
      G09125739
    IMPORTANT: Until the reprogramming has completed:
    • Do not disconnect the USB cable, although the following message appears:

      "Disconnecting CONSULT and VI is Available"

    • Do not touch the Home button until instructed to.
    • When the VI is transferring the reprogram to the DAST control unit, do not disconnect the VI from the vehicle even if the PC freezes.
    • If you need to disconnect the VI, first check the LED on the VI body to confirm that the communication from the VI to the vehicle has completed and the LED for the vehicle icon is OFF.
    • If you accidentally disconnect the VI during program writing to the vehicle, the DAST control unit that is being reprogrammed will need to be replaced.

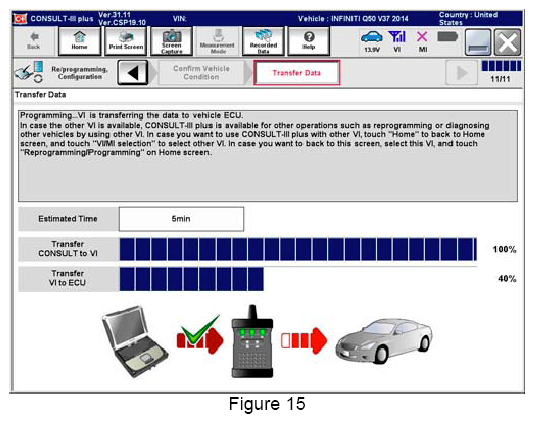

  20. Wait for both bar graphs to complete.
    G09125740

    Possible errors that may rarely occur:

    • If the progress bar freezes at 90% of a complete transfer to the VI and error code "12-1-1NR" is displayed (see Figure 16 on the next page), turn the ignition OFF, then ON,  and then refer to Control Unit Recovery on the next page.
    • If the progress bar freezes at 90% more than  3 times "on the same DAST control unit" but without  Error Code "12-1-1NR", the DAST control unit that is currently being reprogrammed will need to be replaced.
      NOTE: If a DAST control unit replacement is required:
      • Refer to the appropriate section of the ESM for the procedure to replace and configure a DAST control unit.
      • Make sure to perform Read/Write Configuration  and save the Control unit's configuration before replacement, and then write the configuration to the new control unit.

    Control Unit Recovery:

    Do not disconnect plus VI or shut down Consult III plus if reprogramming does not complete.

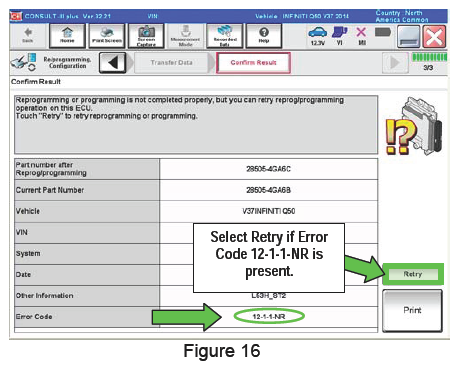

    If reprogramming does not complete and the "!?" icon displays as shown in Figure 16:

    • Check battery voltage (12.0-13.5 V).
    • Ignition is ON, engine OFF (not READY).
    • External Bluetooth® devices are OFF.
    • All electrical loads are OFF.
    • Select retry and follow the on screen instructions.
    • "Retry" may not go through on the first attempt and can be selected more than once.
      G09125741

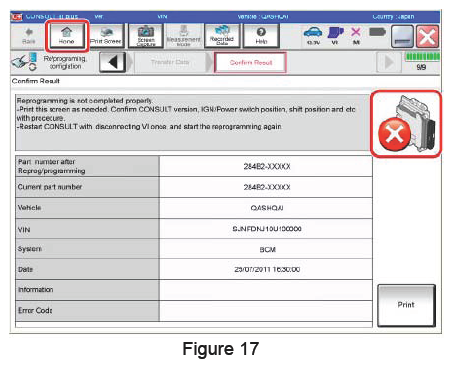

    If reprogramming does not complete and the "X" icon displays as shown in Figure 17:

    • Check battery voltage (12.0 - 13.5 V).
    • CONSULT A/C adapter is plugged in.
    • Ignition is ON, engine OFF (not READY).
    • Transmission is in Park.
    • All C-III plus/VI cables are securely connected.
    • All C-III plus updates are installed.
    • Select Home  , and restart the reprogram procedure from the beginning.
      G09125742

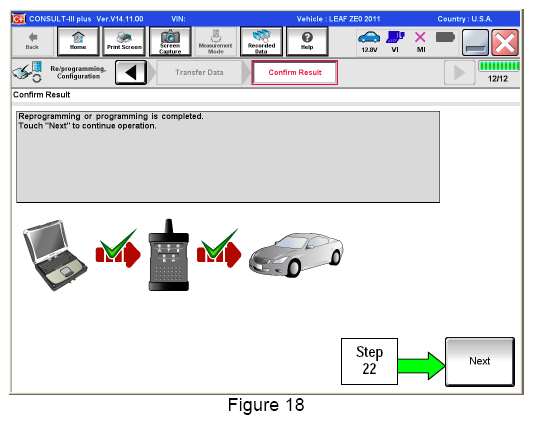

  21. When the screen in Figure 18 appears, reprogramming is complete.
  22. Select Next  .
  23. Wait for System Call to complete.
    G09125743
  24. Erase all DTCs as follows:

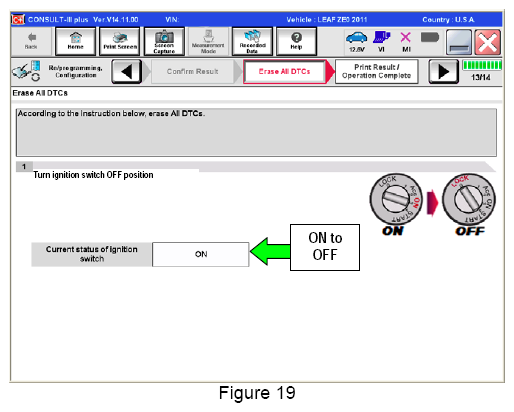

    1. Turn "ignition" OFF.
      • The screen in Figure 19 will read OFF after pressing the power switch once.
        G09125744

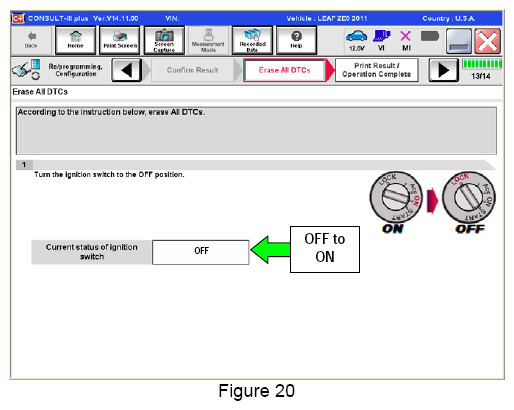

    2. Turn the ignition ON with engine OFF (press switch twice, no foot on brake).
      • The screen in Figure 19 will read ON  after pressing the power switch twice  .
      NOTE: Do not be confused by any screen messages. At this point, simply turn the ignition ON.
      G09125745

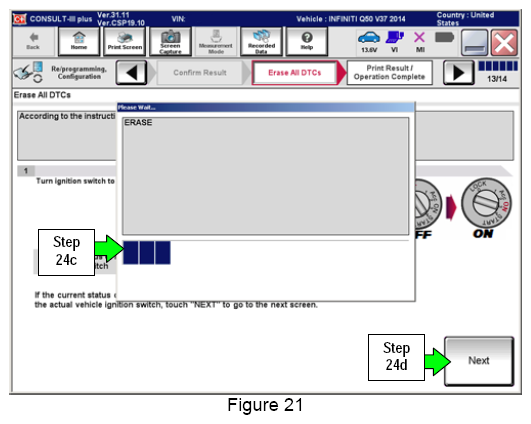

    3. Wait for the bar graph in the ERASE  window to complete 100%.
    4. Select Next.
      G09125746

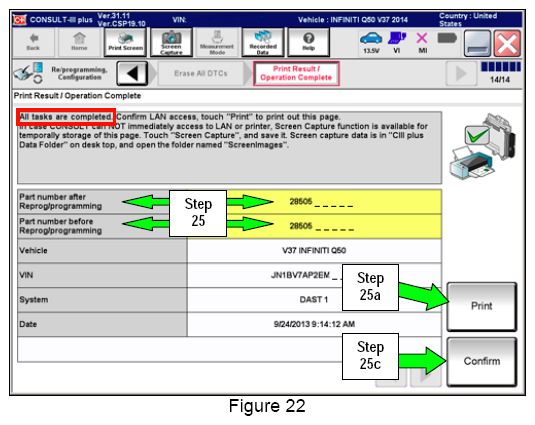

  25. Verify the part number has changed (before and after reprogramming part numbers should be different).
    1. Print a copy of the screen in Figure 22 by selecting Print  .
    2. Attach the copy to the repair order.
    3. Once a copy has been printed, select Confirm  .
      G09125747

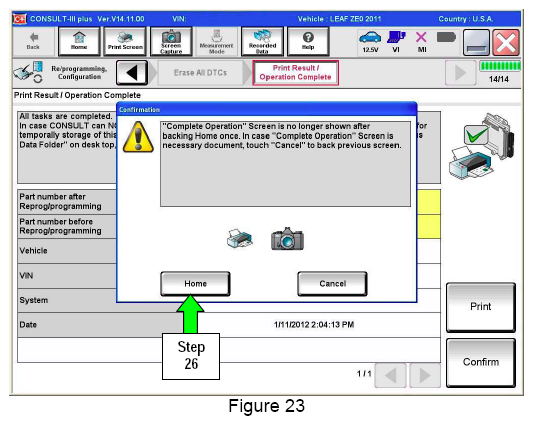

  26. After Confirmation has completed, select Home
    G09125748
  27. Repeat the entire reprogramming procedure for DAST 2.
  28. Repeat the entire reprogramming procedure for EPS/DAST 3.

    After all three reprograms are complete, the procedure is finished.

CLAIMS INFORMATION

Submit a "CM" line claim using the following claims coding:

CLAIMS INFORMATION

CAMPAIGN ("CM") I.D. DESCRIPTION OP CODE FRT
R1310 Reprogram DAST Control Units R13100 1.0
