WARNING: This page is about the Q50 Hybrid Premium, AWD, which is a different variant/trim than selected.
Publication date: 2016-06-29
Reference number: ITB16-023

VOLUNTARY SAFETY RECALL CAMPAIGN 2014 Q50 HYBRID WITH AVM; DIRECT ADAPTIVE STEERING CONTROL MODULE REPLACE, REPROGRAM, AND RECALIBRATE

VOLUNTARY SAFETY RECALL CAMPAIGN 2014 Q50 HYBRID WITH AVM; DIRECT ADAPTIVE STEERING CONTROL MODULE REPLACE, REPROGRAM, AND RECALIBRATE

SERVICE CAMPAIGN BULLETIN

Reference Number(s): ITB16-023, Date of Issue:  June 29, 2016
INFINITI: 2014 Q50 Hybrid
CAMPAIGN I.D.# / NHTSA #: R1613 / 16V-430
APPLIED VEHICLES: 2014 Q50 Hybrid (V37)
NOTE: Check Service COMM to confirm campaign eligibility.
  • There are multiple bulletins with different campaign ID numbers for the DAST system.
  • Each bulletin is applicable to specific vehicles.
  • Make sure the correct bulletin (Campaign ID #) is being used.

INTRODUCTION

Infiniti is conducting a Voluntary Safety Recall Campaign on certain specific Model Year 2014 Q50 Hybrid vehicles to replace and reprogram the Direct Adaptive Steering (DAST) control modules, and recalibrate the DAST system. This Service will be performed at no cost to the customer for parts or labor.

IDENTIFICATION NUMBER

Infiniti has assigned identification number R1613 to this campaign. This number must appear on all communication and documentation of any nature dealing with this campaign.

DEALER RESPONSIBILITY

It is the dealer's responsibility to check Service COMM for the campaign status on each vehicle falling within the range of this voluntary safety recall which for any reason enters the service department. This includes vehicles purchased from private parties or presented by transient (tourist) owners and vehicles in a dealer's inventory. Federal law requires that new vehicles in dealer inventory which are the subject of a safety recall must be corrected prior to sale. Failure to do so can result in civil penalties by the National Highway Traffic Safety Administration.  While federal law applies only to new vehicles, Infiniti strongly encourages dealers to correct any used vehicles in their inventory before they are retailed.

REPAIR OVERVIEW

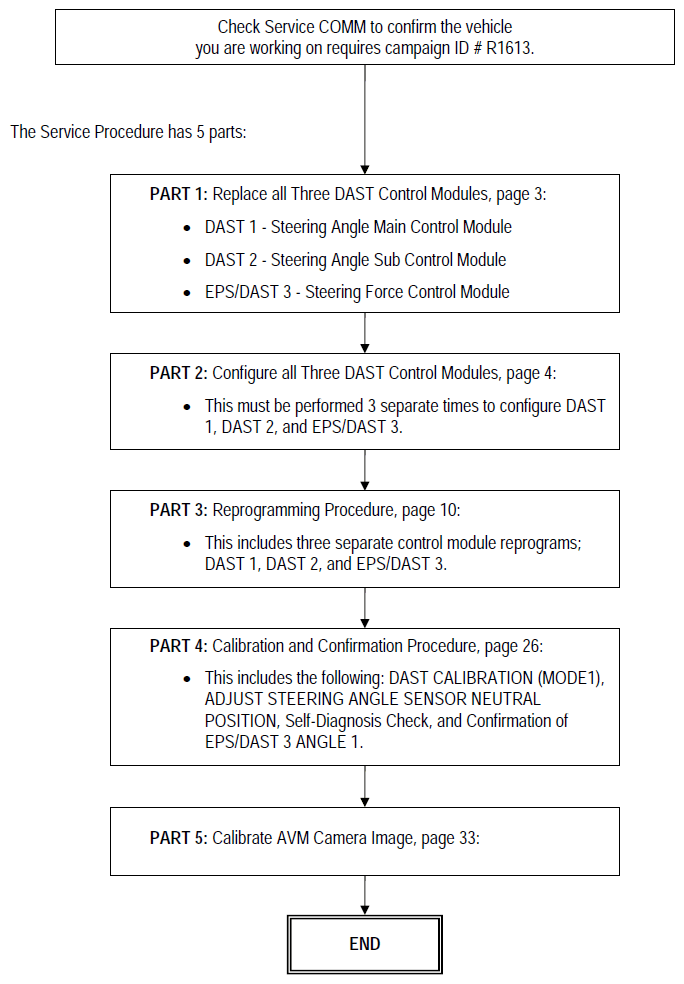

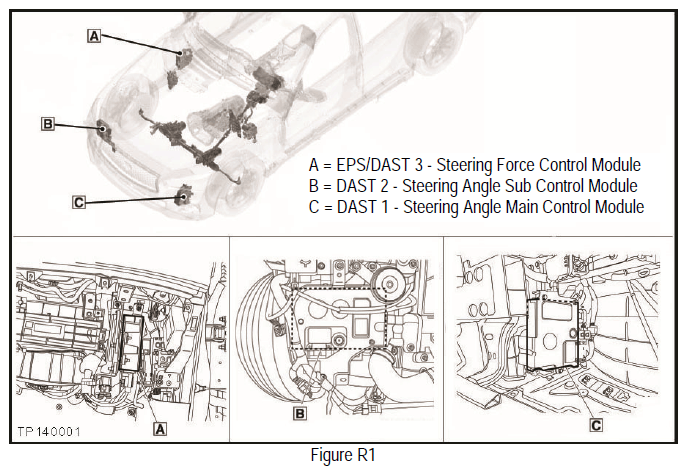

G10581550

SERVICE PROCEDURE

PART 1: Replace all Three DAST Control Modules

  1. Replace all three DAST Control Modules (see Figure R1):

    DAST 1 - Steering Angle Main Control Module

    • For R & R information, refer to the Service Manual > Section STC > Direct Adaptive Steering > Steering Angle Main Control Module.

    DAST 2 - Steering Angle Sub Control Module

    • For R & R information, refer to the Service Manual > Section STC > Direct Adaptive Steering > Steering Angle Sub Control Module.
      NOTE: The washer bottle does not need to be removed. Suspend it with string while replacing DAST 2 control module.

    EPS/DAST 3 - Steering Force Control Module

    • For R & R information, refer to the Service Manual > Section STC > Direct Adaptive Steering > Steering Force Control Module.
      G10581551
  2. After all three DAST Control Modules are replaced; go to PART 2: CONFIGURE ALL THREE DAST CONTROL MODULES  on the next page.

PART 2: Configure all Three DAST Control Modules

NOTE: PART 2 must be performed 3 separate times to configure the control modules for DAST 1, DAST 2, and EPS/DAST 3.
  1. Connect CONSULT-III plus (C-III plus) and the plus VI to the vehicle.
  2. Turn the ignition ON (engine OFF / not Ready).
  3. Turn ON the CONSULT PC.
  4. Open C-III plus and wait for the plus VI to be recognized.

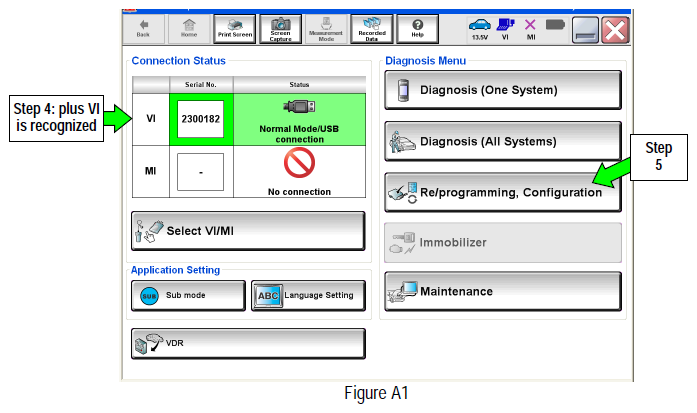

  5. Select Re/programming, Configuration.
    G10581552

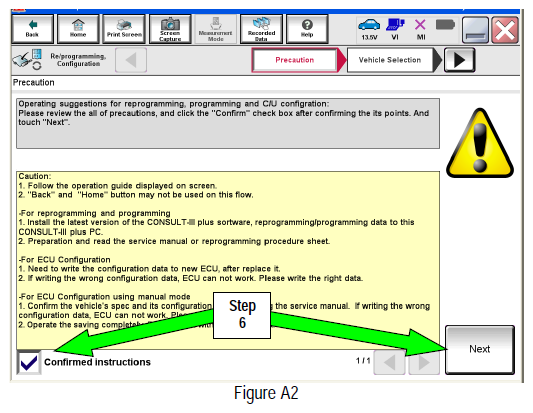

  6. Check the box for Confirmed Instructions  , and then select Next  .
    G10581553
  7. Select Q50 Hybrid  and 2014,  or Automatic Selection (VIN)  .
    • If Automatic Selection (VIN)  is selected, or the screen in Figure A3 does not display, skip to step  9.
  8. Select Select  .

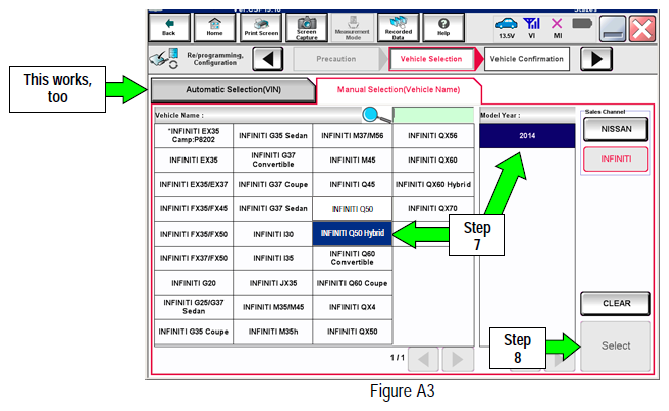

    G10581554

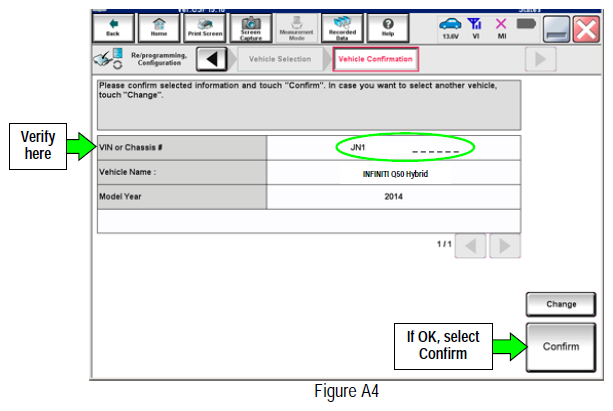

  9. Verify the VIN or Chassis #  matches that of the vehicle.
    • If the correct VIN is displayed, select Confirm  .
      G10581555

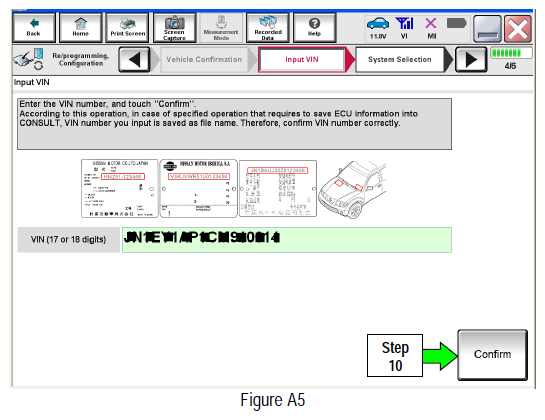

  10. Select Confirm  again.
    G10581556

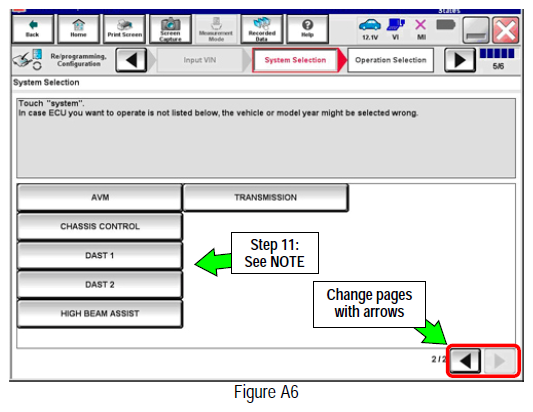

  11. Use the arrows to change pages, and then select the correct control module  for configuration.

    Make sure to configure the control modules in this order:

    DAST 1  , then DAST 2  , and then EPS/DAST 3

    NOTE: DAST 1 and DAST 2 are shown in Figure A6; EPS/DAST 3 is not shown.
    G10581557
  12. Select Manual Configuration.

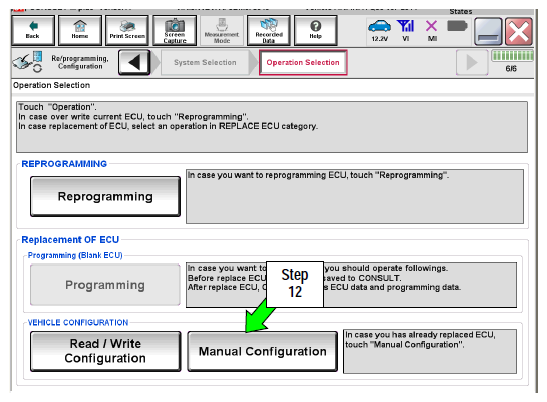

    G10581558

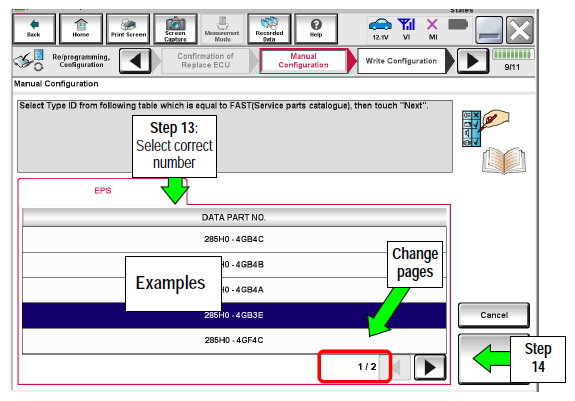

  13. Select (highlight) the correct DATA PART NO  . (Use the page arrows as needed).
    • Use the TABLE  below to determine the correct DATA PART NO.
  14. Select Next  .
    G10581559
    PART DESCRIPTION

    Q50 Hybrid 2WD With Active Lane Control AWD With Active Lane Control 2WD Without Active Lane Control AWD Without Active Lane Control
    DAST1  28505 4GF3E 28505 4GF4A 28505 4GF4B 28505 4GF4C
    DAST2  28505 4GF8E 28505 4GF9A 28505 4GF9B 28505 4GF9C
    EPS/DAST3  285H0 4GF3E 285H0 4GF4A 285H0 4GF4B 285H0 4GF4C
    NOTE: Vehicles with Active Lane Control will have a Lane Camera Unit mounted above the inside rearview mirror.
  15. Confirm the DATA PART NO.  is correct.
  16. Select OK  .

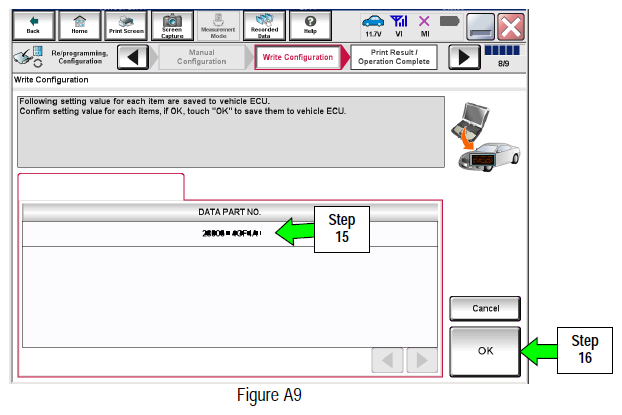

    G10581560
  17. Wait for Write Configuration to complete.
  18. Select END  .

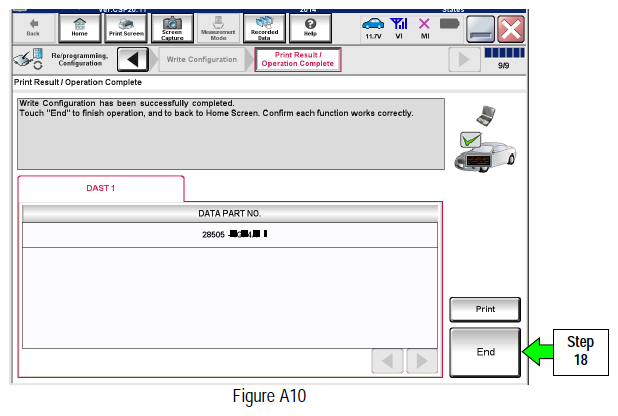

    G10581561
  19. Repeat the configuration procedure in the correct order; DAST 2 (2nd ), and then EPS/DAST 3 (3rd ).
  20. After all 3 DAST control modules have been configured, go to PART 3: REPROGRAMMING PROCEDURE  on the next page.

PART 3: Reprogramming Procedure

NOTE: PART 3 must be performed 3 separate times to reprogram the control modules for DAST 1, DAST 2, and EPS/DAST 3.
  1. 1. Before continuing, it is IMPORTANT to make sure:
    • ASIST on the CONSULT PC has been synchronized (updated) with the current date.
    • All CONSULT related software updates (if any) have been installed.
      NOTE: The CONSULT PC automatically gets all reprogramming software during ASIST synchronization.
    CAUTION:
    • Connect the GR8 to the vehicle 12 volt battery and set to ECM power supply mode.

      If the vehicle battery voltage drops below 12.0V or rises above 13.5V  during reprogramming, DAST may be damaged  .

    • Be sure to turn OFF all vehicle electrical loads.

      If a vehicle electrical load remains ON, DAST may be damaged  .

    • Be sure to connect the AC Adapter.

      If the CONSULT PC battery voltage drops during reprogramming, the process will be interrupted and DAST may be damaged  .

    • Turn off all external Bluetooth® devices (e.g., cell phones, printers, etc.) within range of the CONSULT PC and the plus VI. If Bluetooth® signal waves are within range of the CONSULT PC during reprogramming, reprogramming may be interrupted and DAST may be damaged  .
    • Connect the AC adapter to the CONSULT PC.
  2. 3. Turn ON the CONSULT PC, and then open C-III plus.
    NOTE: Make sure all applications other than C-III plus are closed.
  3. 4. Press the ignition switch twice without  depressing the brake pedal.
    • The meter and gauges will illuminate.
      CAUTION: Do Not  start the engine, the DAST may be damaged. (For Hybrid vehicles, make sure the Ready light is OFF.)
      NOTE: Make sure ALL  accessories are turned OFF.
  4. 5. Check for stored DTCs in all systems as follows:
    1. Wait for the plus VI to be recognized.
    2. Select Diagnosis (All Systems)  and Confirm  .
    3. Wait for System Call  to complete.
    4. Check for stored DTCs.
      • If no DTCs found, go to step 6.
      • If any DTCs are found stored:
        • Perform diagnosis and repairs related to the stored DTC(s), and then erase the DTC(s).
        • When completed, go to step 6.
      NOTE: Make sure the ignition is not turned OFF between step 5 and step 6.

      INFORMATION  : If there are DTCs related to the Brake or Steering systems that are falsely stored and will not erase, perform the following:

      1. aa. Turn the ignition OFF.
      2. bb. Disconnect the 12V battery negative cable.
      3. cc. Wait 5 minutes.
      4. dd. Reconnect the negative battery cable.
      5. ee. Restart the SERVICE PROCEDURE  from the beginning.

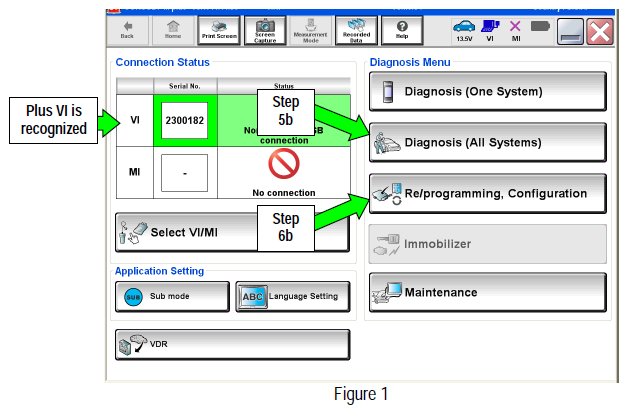

  5. 6. Go to Re/programming, Configuration  .
    1. Select the Home  button and then YES  to return to the screen shown in Figure 1.
    2. Select Re/programming, Configuration.
      G10581562

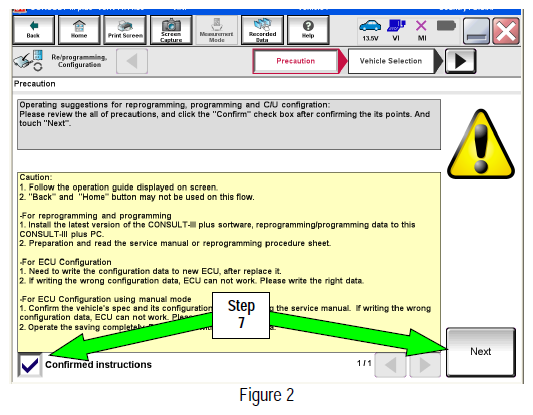

  6. 7. Check the box for Confirmed Instructions  , and then select Next  .
    G10581563
  7. 8. Select Q50 Hybrid and 2014, or Automatic Selection (VIN).
    • If Automatic Selection (VIN)  is selected, or the screen in Figure 3 does not display, skip to step  10.
  8. 9. Select Select  .
    G10581564

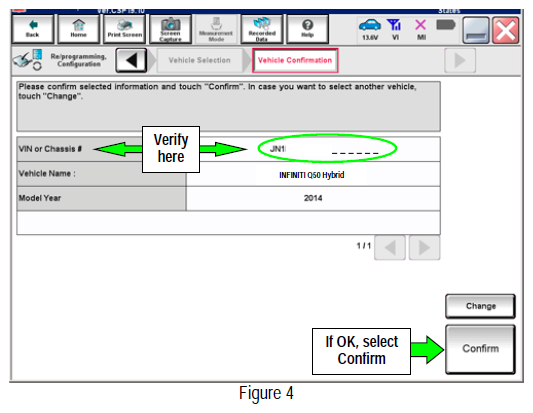

  9. 10. Verify the VIN or Chassis #  matches that of the vehicle.
    • If the correct VIN is displayed, select Confirm  .
      G10581565
  10. 11. Select Confirm  again.
    G10581566

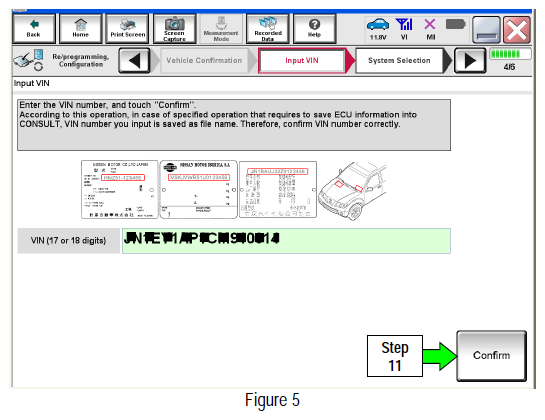

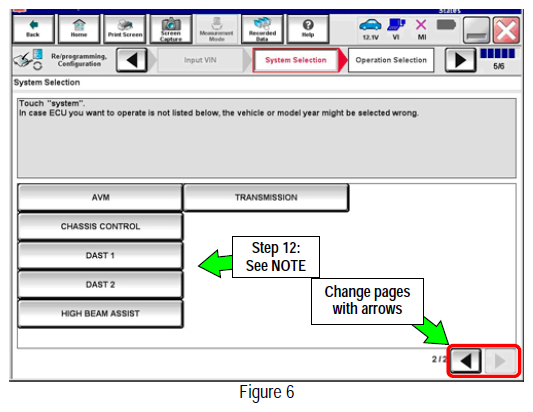

  11. 12. Use the arrows to change pages, and then select the correct control module  to be reprogrammed.

    Make sure to reprogram the control modules in this order:

    DAST 1  , then DAST 2  , and then EPS/DAST 3

    NOTE: DAST 1 and DAST 2 are shown in Figure 6; EPS/DAST 3 is not shown.
    G10581567

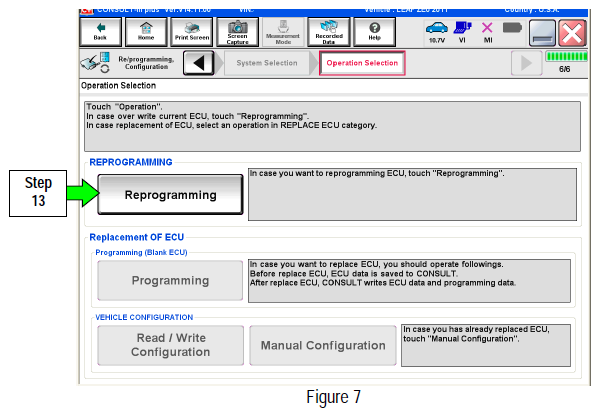

  12. 13. Wait for System Call to complete, and then select Reprogramming  .
    G10581568

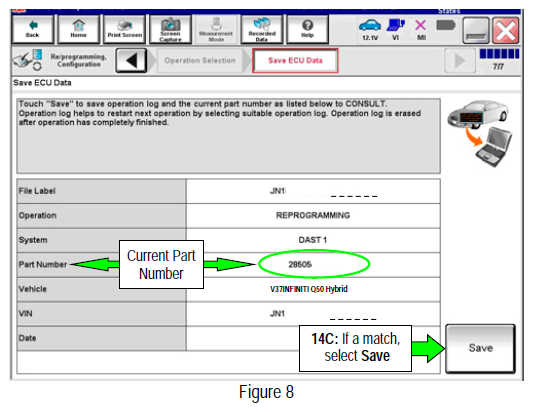

  13. 14. When you get to the screen shown in Figure 8, confirm reprogramming applies as follows:
    1. Find the DAST Part Number  and write it on the repair order.
      NOTE: This is the current  DAST part number (P/N). DAST 1 is shown; DAST 2 and DAST 3 are similar.
      G10581569
    2. Compare the P/N written down earlier to the P/Ns in the CURRENT PART NUMBER  column of PART DESCRIPTION - A  below:
      • If there is a match  , reprogramming applies  . Continue with the reprogramming procedure.
        NOTE: The software (current P/N) for the DAST Control Modules that were replaced earlier in this procedure should match the ones listed in PART DESCRIPTION - A .
      • If there is not a match  , reprogramming does not apply  .
        NOTE: If there is no match for DAST 1, there will be no match for DAST 2 or DAST 3. You can stop. This reprogramming does not apply, or it has already been done.
        PART DESCRIPTION - A

        MODEL CONTROL MODULE CURRENT PART NUMBER (P/N):
        2014 Q50 Hybrid DAST 1 28505 - 4GA1E
        DAST 2 28505 - 4GA6E
        EPS/DAST 3 285H0 - 4GA5E
    3. If there is a P/N match as specified above, select Save  , and then continue with the reprogramming procedure on the next page.

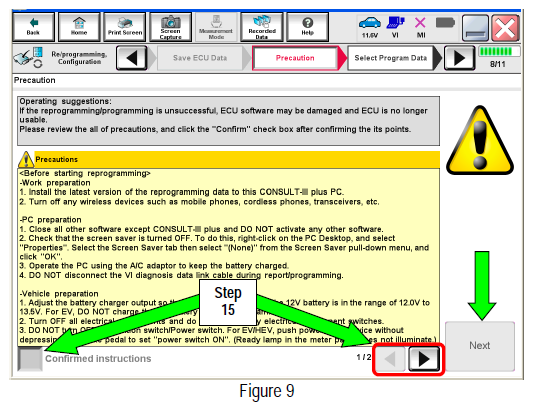

  14. 15. Read the precautions on the C-III plus screen (use page arrows as needed). After reading, select Confirmed instructions  , and then select Next  .
    G10581570
    NOTE:
    • In some cases, more than one new P/N for reprogramming is available.

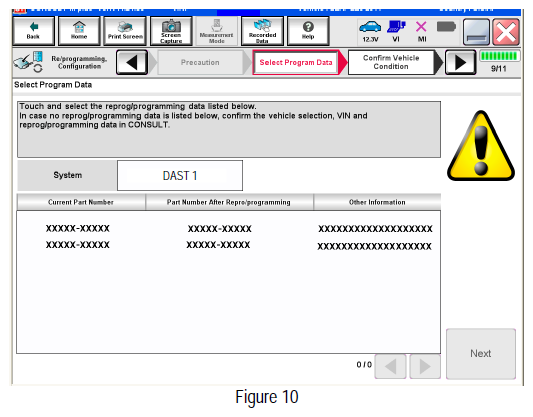

      • If more then one P/N is available, the screen in Figure 10 will display.
      • Select and use the reprogramming option that does not  have the message "Caution! Use ONLY with ITBXX-XXX".
    • If you get this screen and it is blank  (no reprogramming listed), it means there is no reprogramming available for that control module.
    G10581571

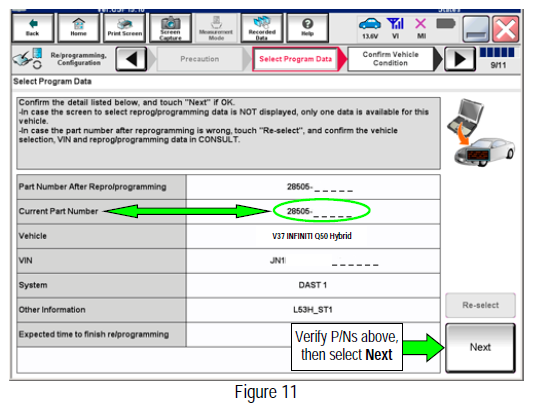

  15. 16. Verify the Current Part Number  matches the P/N written down in step  14, and then select Next  .
    G10581572

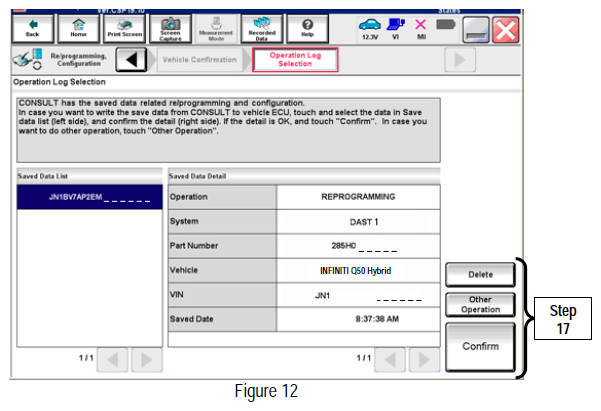

  16. 17. If the screen in Figure 12 appears, first select Delete  , then Confirm,  and then Other Operation  .
    • This will erase the Saved Data List  and restart the reprogram from step  12. You must go back to step  12.
    • If no Saved Data List  is stored, Figure 13 on the next page will be displayed.
      G10581573
  17. 18. Confirm battery voltage is correct, and then select Next  .
    NOTE: Battery voltage must stay within the specified range to make the indicator turn green.
    G10581574

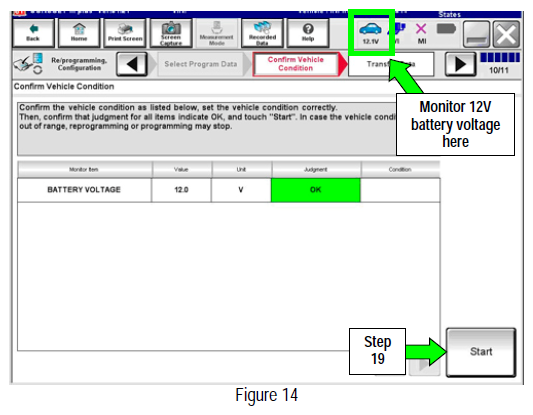

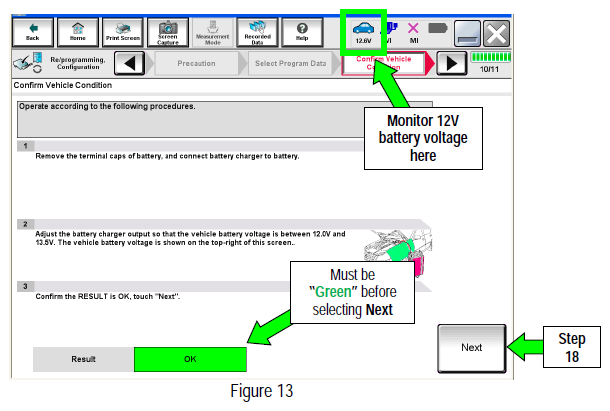

  18. 19. With battery voltage OK (green), select Start  .
    • The reprogramming process begins when Start  is selected.
      NOTE: For reprogramming to continue, vehicle 12V battery voltage must stay within 12 volts and 13.5 volts.
      G10581575
    IMPORTANT: Until the reprogramming has completed:
    • Do not touch the Home button until instructed to.
    • When the plus VI is transferring the reprogram to the DAST control module, do not disconnect the plus VI from the vehicle even if the PC freezes.
    • If you need to disconnect the plus VI, first check the LED on the plus VI body to confirm that the communication from the plus VI to the vehicle has completed and the LED for the vehicle icon is OFF.
    • If you accidentally disconnect the plus VI during reprogram writing to the vehicle, the DAST control module that is being reprogrammed may need to be replaced. Refer to Control Unit Recovery  on the next page.

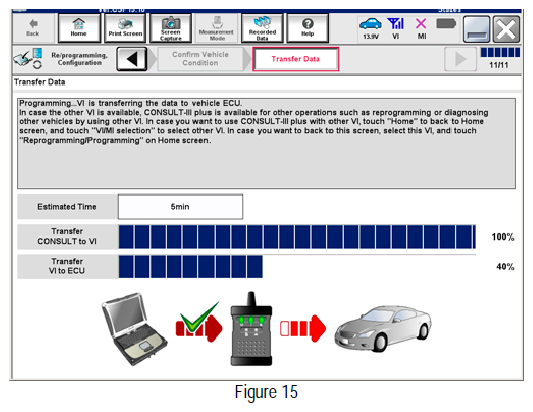

  19. 20. Wait for both bar graphs to complete.
    G10581576

    Possible errors that may rarely occur:

    • If the progress bar freezes at 90% of a complete transfer to the plus VI and error code "12-1-1NR" is displayed as shown in Figure 16 on the next page, turn the ignition OFF, then ON  , and then refer to Control Unit Recovery  on the next page.
    • If the progress bar freezes at 90% more than  3 times "on the same DAST control module" but without  Error Code "12-1-1NR", replace only the DAST control module that is currently being reprogrammed, and then reprogram to the most current software.
    • If the reprogramming does not complete, refer to Control Unit Recovery  on the next page.
    NOTE: If a DAST control module replacement is required:
    • Refer to the appropriate section of the ESM for the procedure to replace and configure a DAST control module.
    • Make sure to write the correct configuration  to the new control module.

    Control Unit Recovery:

    Do not disconnect the plus VI or shut down Consult-III plus if reprogramming does not complete.

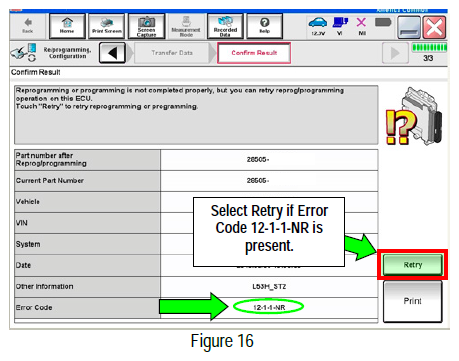

    If reprogramming does not complete and the "!?" icon displays as shown in Figure 16:

    • Check battery voltage (12.0-13.5 V).
    • Ignition is ON, engine OFF (not READY).
    • External Bluetooth® devices are OFF.
    • All electrical loads are OFF.
    • Select Retry and follow the on screen instructions.
    • "Retry" may not go through on the first attempt and can be selected more than once.
      G10581577

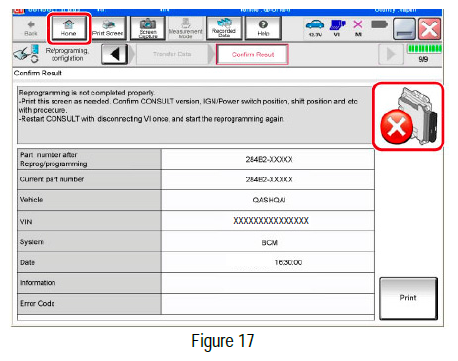

    If reprogramming does not complete and the "X" icon displays as shown in Figure 17  :

    • Check battery voltage (12.0 - 13.5 V).
    • CONSULT A/C adapter is plugged in.
    • Ignition is ON, engine OFF (not READY).
    • Transmission is in Park.
    • All C-III plus / plus VI cables are securely connected.
    • All C-III plus updates are installed.
    • Select Home, and then restart the reprogram procedure from the beginning.
      G10581578

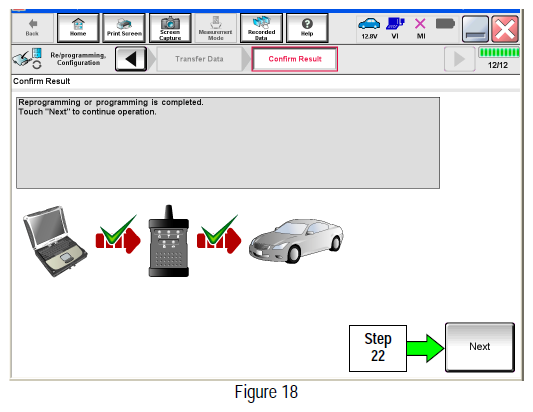

  20. 21. When the screen in Figure 18 appears, reprogramming is complete.
  21. 22. Select Next  .
  22. 23. Wait for System Call to complete.
    G10581579

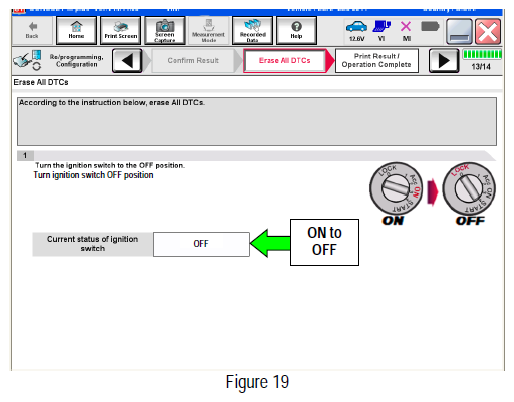

  23. 24. Erase all DTCs as follows:
    1. Turn the ignition OFF.
      • The screen in Figure 19 will read OFF after pressing the power switch once.
        G10581580

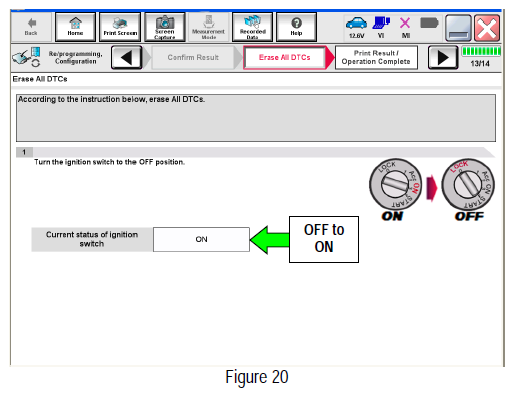

    2. Turn the ignition ON (engine OFF / Not Ready).
      • The screen in Figure 20 will read ON  after pressing the power switch twice  .
        NOTE: Do not be confused by any screen messages. At this point, simply turn the ignition ON.
        G10581581

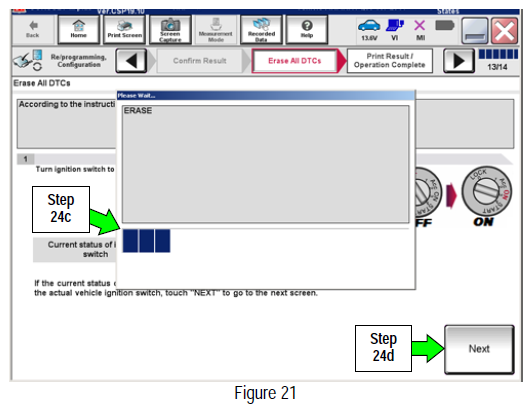

    3. Wait for the bar graph in the ERASE  window to complete 100%.
    4. Select Next  .
      G10581582
  24. 25. Verify the P/N has changed (before and after reprogramming P/Ns should be different).
    1. Print a copy of the screen in Figure 22 by selecting Print  .
    2. Attach the copy to the repair order.
    3. Once a copy has been printed, select Confirm  .

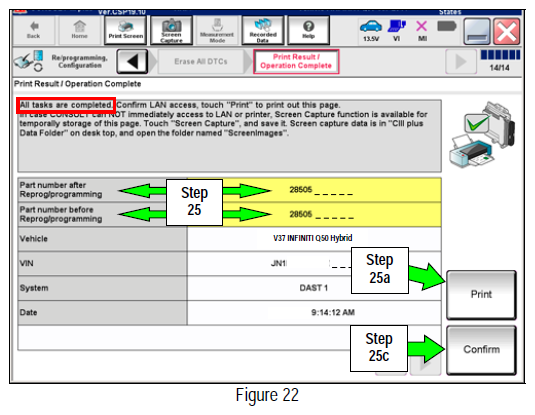

      G10581583

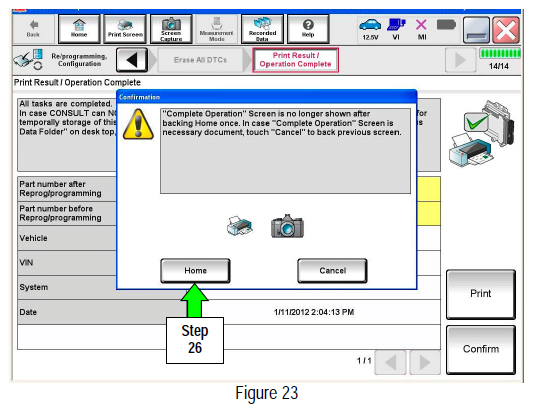

  25. 26. After Confirmation  has completed, select Home  .
    G10581584
  26. 27. Repeat the entire reprogramming procedure for DAST 2.
  27. 28. Repeat the entire reprogramming procedure for EPS/DAST 3.

    After all three reprograms (DAST 1, DAST 2, and EPS/DAST 3) are complete, go to step 29 on the next page.

  28. 29. Check for DTCs in DAST 1, DAST 2, and EPS/DAST 3.
    1. Open C-III plus, select Diagnosis (All Systems)  , and then select Confirm  .
    2. Wait for System Call to complete.
    3. Check for stored DTCs.
      • If no DTCs are stored, go to PART 4: CALIBRATION AND CONFIRMATION PROCEDURES  on the next page.
      • If C13C0 or C13C2 are stored in DAST 1 or DAST 2, go to DAST DTCs .
      • If DTC C13F2 is stored in DAST 1, DAST 2, or DAST 3 as current:
        • Then, at least one of the DAST control modules did not complete the reprogramming correctly.
        • Perform reprogramming again for the DAST control module that Does Not have this DTC.
      • If only DTCs other than the ones listed above are stored, erase DTCs and go to PART 4: CALIBRATION AND CONFIRMATION PROCEDURES  on the next page.
      NOTE: If a DAST control module replacement is required:
      • Refer to the appropriate section of the ESM for the procedure to replace and configure a DAST control module.
      • Make sure to write the correct configuration  to the new control module.

PART 4: Calibration and Confirmation Procedures

NOTE: PART 4 includes the following:
  • DAST CALIBRATION (MODE1)
  • ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
  • Self-Diagnosis Check
  • CONFIRMATION of EPS/DAST 3 ANGLE 1
DAST CALIBRATION (MODE1)
CAUTION:
  • Never move the vehicle during DAST CALIBRATION (MODE1)  because the steering gear is held in a neutral position until the ignition switch is turned OFF.
  • Never rotate the steering wheel more than 120 degrees just after DAST CALIBRATION (MODE1)  has been completed because the spiral cable will be damaged.
WARNING: Be careful of moving parts  . The steering wheel and front wheels will move automatically by themselves after starting DAST CALIBRATION (MODE1).
Before starting Calibration Mode1
  • Place the vehicle on an alignment rack, and then remove the pins from the turn tables so they are allowed to move freely.
  • Place the steering wheel tilt to the highest level.
  • Connect a battery charger to the vehicle battery set to a low charge rate.
NOTE: This calibration procedure will be performed twice  completely through.
IMPORTANT: Do Not  turn the ignition OFF at the end of the second time through.
  1. Make sure the plus VI is still connected to the vehicle.
  2. Make sure the AC adapter is still connected to the CONSULT PC.
  3. Turn the ignition ON (engine OFF / Not Ready).
    IMPORTANT: Do Not start the engine (the READY light must be OFF).
  4. Turn ON the CONSULT PC, and then open C-III plus (if not already open).

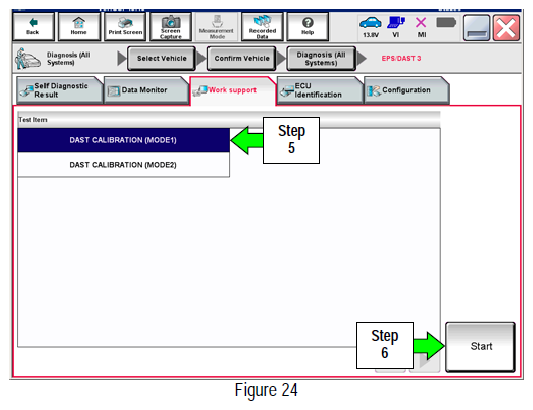

  5. On the C-III plus screen, select Diagnosis (All Systems)  . After System Call has completed, select EPS/DAST 3  >> Work support  >> DAST CALIBRATION (MODE1)  . See Figure 24.
    G10581585
  6. Select START,  and then select START  a second time to begin DAST CALIBRATION (MODE1)  .
    • Do not rotate the road wheels during the DAST calibration.
    WARNING: Be careful of moving parts  . The steering wheel and front wheels will move automatically by themselves after starting DAST CALIBRATION (MODE1)  .
    NOTE: If DAST CALIBRATION (MODE1)  will not start, refer to DAST DTCs .

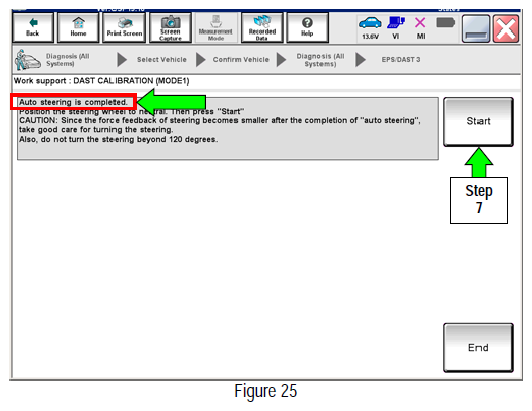

  7. When Auto steering has completed, center the steering wheel to the neutral (straight ahead) position, and then select Start  again (see Figure 25).
    IMPORTANT: The steering wheel must be positioned in the neutral (straight ahead) position, for step 7 above, to ensure that the steering wheel will be centered when driving straight.
    CAUTION: When DAST CALIBRATION (MODE1)  has completed, the steering wheel is disconnected from the steering gear and the force feedback of the steering is reduced. Never turn the steering wheel beyond 120 degrees otherwise the spiral cable will be damaged.
    G10581586

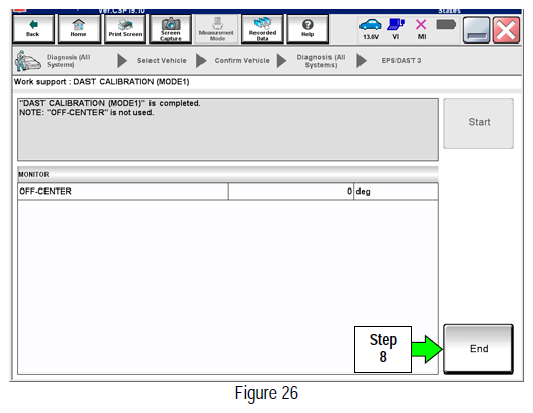

  8. Select End  .
    G10581587
  9. Turn the ignition switch OFF.
  10. With C-III plus still connected, repeat steps  1 -  8 a second time, but Do Not turn the ignition OFF  after step  8, and then proceed to step 11.
  11. Select the BACK  button twice, and then select Yes  to "Delete results".
    IMPORTANT: Do Not  turn the ignition OFF.
    • If the ignition is turned OFF between the DAST CALIBRATION (MODE1)  and ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION  , the procedure for DAST CALIBRATION (MODE1) must  be started over from step  1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

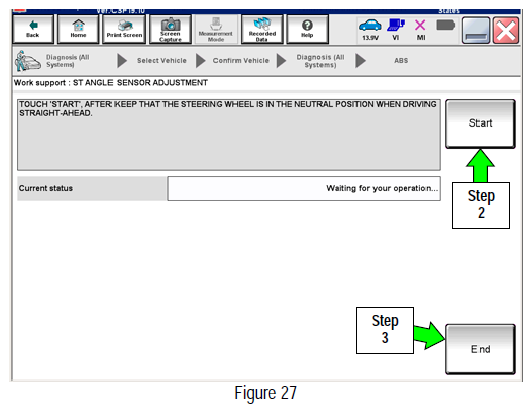

  1. With C-III plus in Diagnosis (All Systems)  , select ABS  >> Work support  >> ST ANGLE SENSOR ADJUSTMENT  , and then select START  .
  2. When the message "Waiting for your operation..." is displayed, select Start  .
    IMPORTANT: Do Not  touch the steering wheel while adjusting the steering angle sensor.
    G10581588
  3. When the message COMPLETE  is shown (after approx. 5 seconds), select End  .
  4. Turn the ignition switch OFF and wait at least 10 seconds.
  5. Disconnect the battery charger from the vehicle 12V battery.
  6. Go to SELF-DIAGNOSIS CHECK  on the next page.

SELF-DIAGNOSIS Check

  1. Place the vehicle in READY mode (turn ignition ON with  brake pressed).
  2. Check for DTCs in DAST 1, DAST 2, and EPS/DAST 3 as follows:
    1. On C-III plus, return to the Home  screen.
    2. Select Diagnosis (All Systems)  , and then select Confirm  .
    3. Wait for System Call to complete.
    4. Check for stored DTCs.
      IMPORTANT: Do Not  drive the vehicle.

CONFIRMATION of EPS/DAST 3 ANGLE 1

NOTE: At this point the ignition should still be ON with the READY light ON.

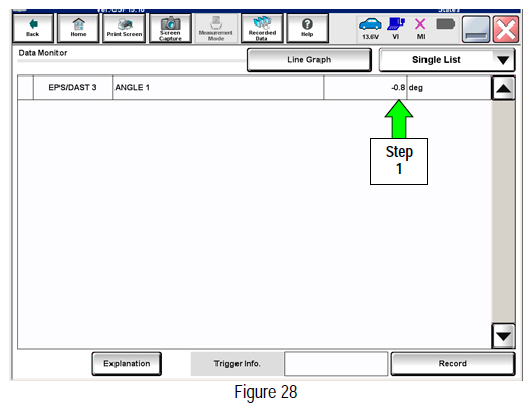

  1. With C-III plus in Diagnosis (All Systems)  , select EPS/DAST 3  >> DATA MONITOR  >> ANGLE 1  , and then check the value of ANGLE 1  (see Figure 28).
    • ANGLE 1 should be within the standard value shown below.
    • If ANGLE 1 is not  within the standard value:
      1. Change the steering wheel tilt to a slightly lower position.
      2. Perform DAST CALIBRATION (MODE1)  again.
      3. Perform CONFIRMATION OF EPS/DAST 3 ANGLE 1  again.
      4. Repeat a - c above until ANGLE 1 is within the standard value.
        STANDARD VALUE SPECIFICATION

        Monitor item Standard value
        ANGLE 1 between -4.4 and 4.4
        G10581589
  2. Go to PART 5: CALIBRATE AVM CAMERA IMAGE  on the next page.

PART 5: Calibrate AVM Camera Image

  1. Perform the procedure for AVM Camera Calibration.
    • Refer to the Service Manual > Section AV (Audio, Visual & Navigation System) > Calibration Camera Image (Around View Monitor).
DAST DTCs
NOTE: Perform the following steps only if:
  • DTCs are stored for DAST 1 and/or DAST 2.
  • DAST CALIBRATION (MODE1) will not start.
  1. Check DTCs for DAST 1  .
    • If C13C0 and C13C2 are detected as current  on DAST 1  , replace the control module for DAST 2  .
    • If DTCs cannot be read (DAST 1 is not listed), go to step 2 and check DTCs for DAST 2  .
  2. Check DTCs for DAST 2  .
    • If C13C0 and C13C2 are detected as current on DAST 2  , replace the control module for DAST 1  .
    • If DTCs cannot be read (DAST 2 is not listed), turn the ignition switch OFF, and then back ON. Then go back to Check DTCs for DAST 1 (step  1) again.
      • If step  1 and step 2 are repeated more than 5 times  and there are still no DTCs stored/listed, replace the control module for DAST 3  .
    NOTE: If a DAST control module replacement is required:
    • Refer to the appropriate section of the ESM for the procedure to replace and configure a DAST control module.
    • Make sure to write the correct configuration  to the new control module.

    INFORMATION:  If DTCs other than the ones listed above are stored and will not erase, do the following:

    1. Turn the ignition OFF.
    2. Disconnect the 12V battery negative cable.
    3. Wait 5 minutes.
    4. Reconnect the negative battery cable.
    5. Return to where you were in the Service Procedure.

PARTS INFORMATION

PARTS INFORMATION

DESCRIPTION PART # QUANTITY
DAST 1 Control Module (Steering Angle Main Control Module) 28505-4GA1E 1
DAST 2 Control Module (Steering Angle Sub Control Module) 28505-4GA6E 1
EPS/DAST 3 Control Module (Steering Force Control Module) 285H0-4GA5E 1

CLAIMS INFORMATION

Submit a Campaign (CM) line claim using the following claims coding:

CLAIMS INFORMATION

CAMPAIGN ("CM") I.D. DESCRIPTION OP CODE FRT
R1613 DAST Replace Modules, Reprogram, Recalibrate, & Adjust AVM R16130 3.4 hrs.
scientia non olet · About Mike's Workshop Manuals
