System Diagram

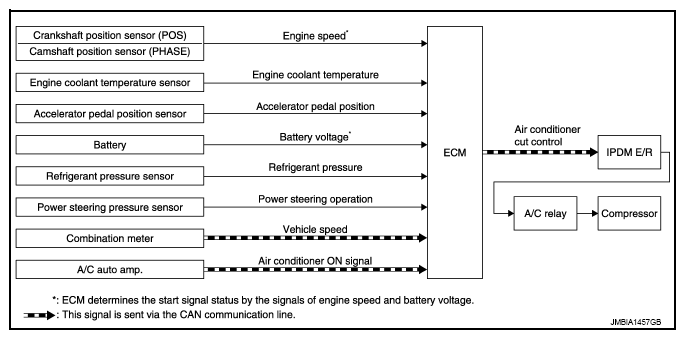

Fig 1: Air Conditioning Cut Control System Diagram

G09159958

Courtesy of NISSAN NORTH AMERICA, INC.
