System - Engine Mechanical & Other

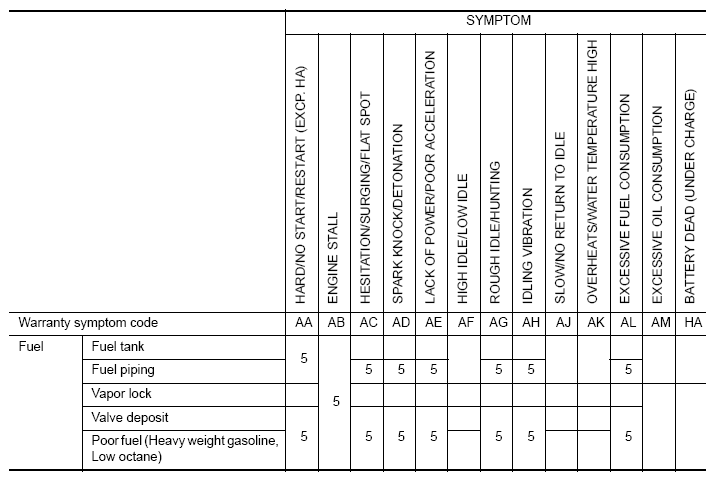

Fig 1: Engine Mechanical & Other Control System Symptom Chart (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

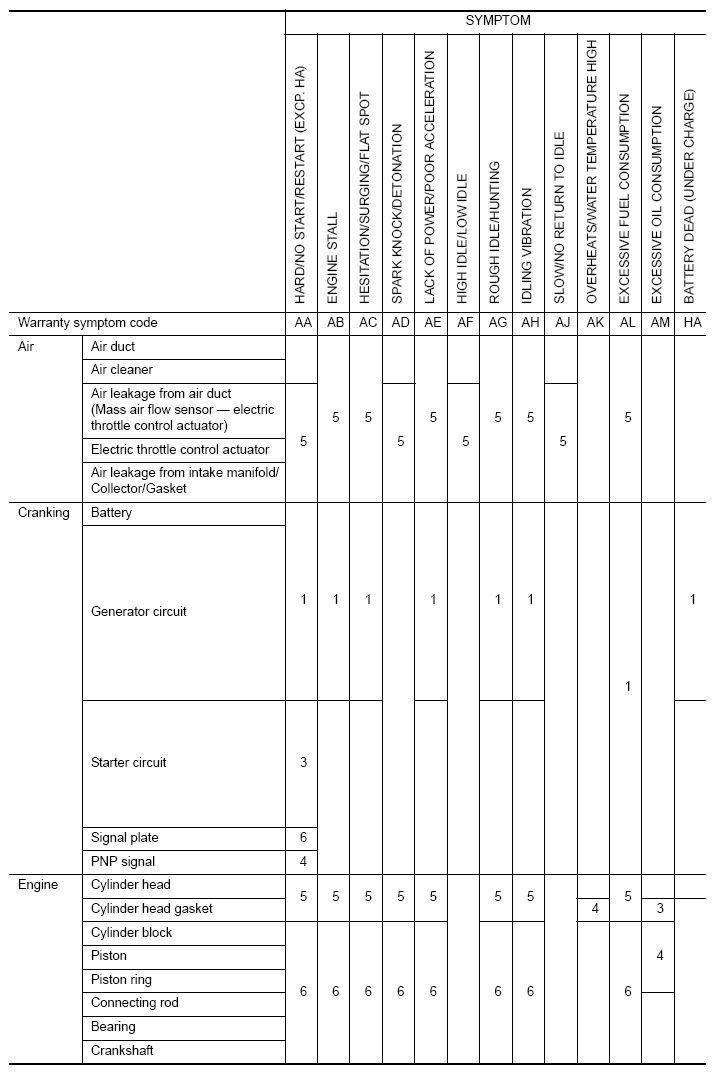

Fig 2: Engine Mechanical & Other Control System Symptom Chart (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

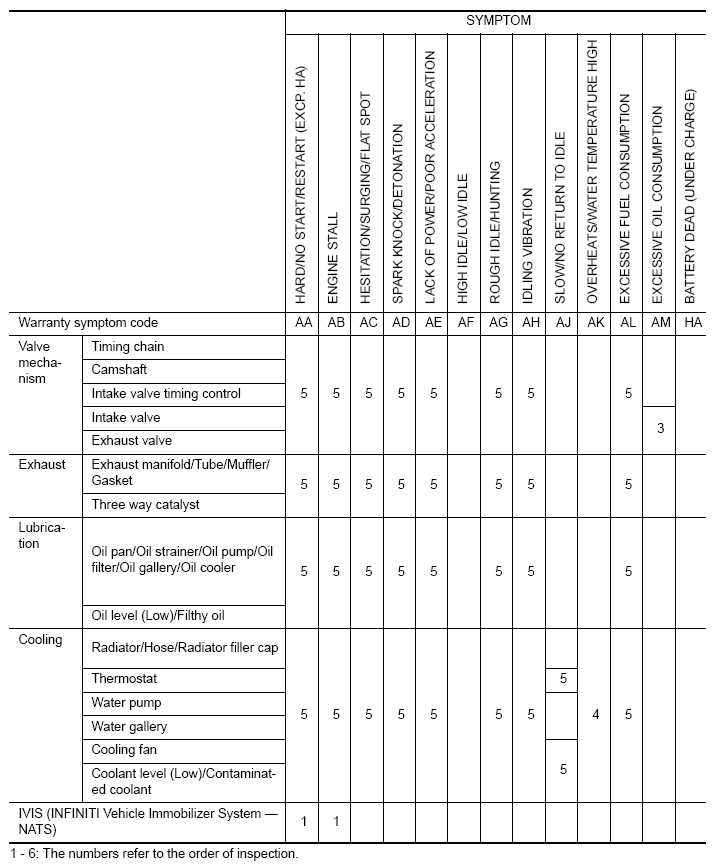

Fig 3: Engine Mechanical & Other Control System Symptom Chart (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

1 - 6: The numbers refer to the order of inspection.

*: For the details of the EXP-800 NI or GR8-1200 NI, refer to "SPECIAL SERVICE TOOLS ".
