Driver Assistance Systems: Wiring Diagram

For connector terminal arrangements, harness layouts, and letters in a "diamond shape" symbol (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

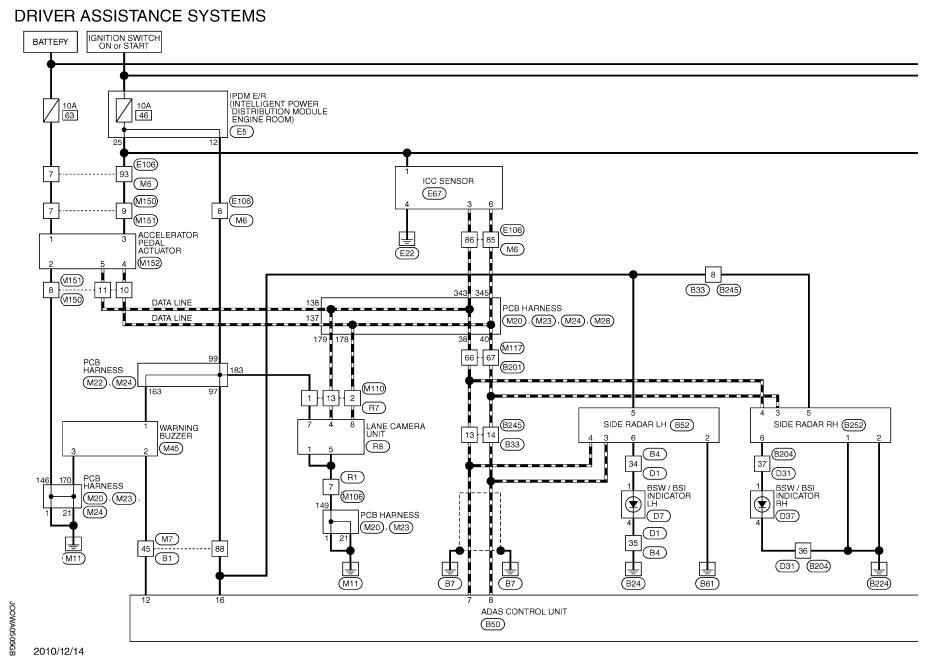

Fig 1: Driver Assistance System Wiring Diagram (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

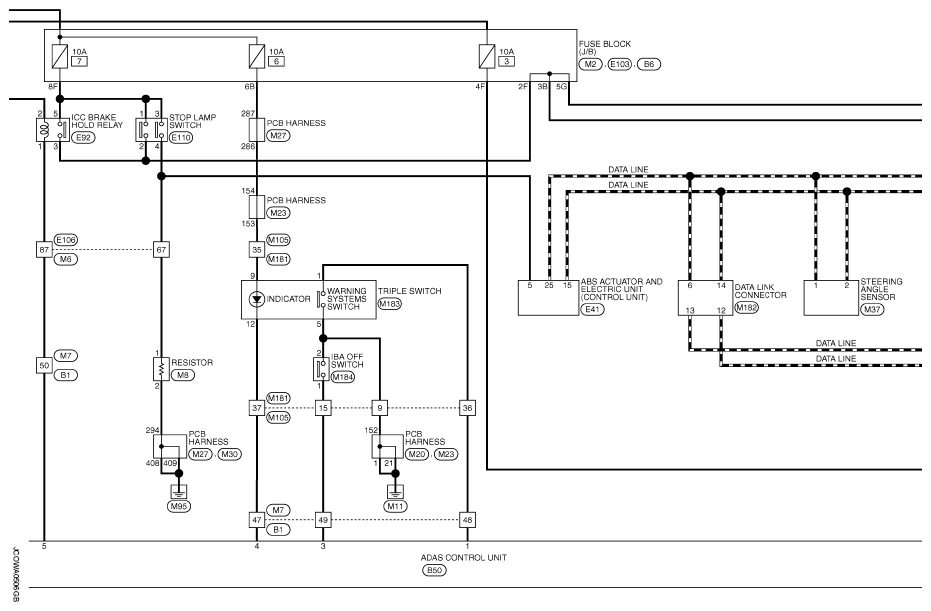

Fig 2: Driver Assistance System Wiring Diagram (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

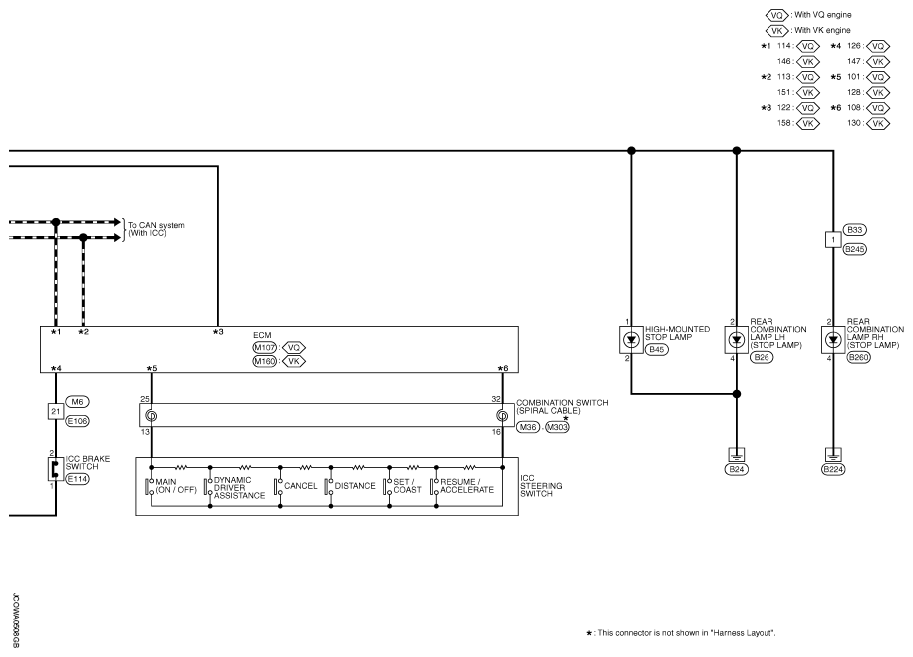

Fig 3: Driver Assistance System Wiring Diagram (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

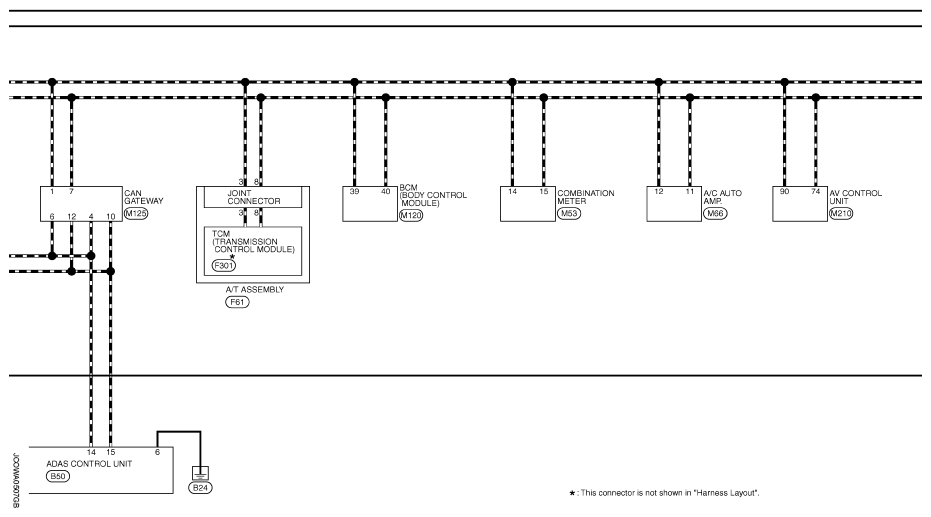

Fig 4: Driver Assistance System Wiring Diagram (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.
