Pre-Crash Seat Belt Control Unit: Wiring Diagram

For connector terminal arrangements, harness layouts, and letters in a "diamond shape" symbol (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

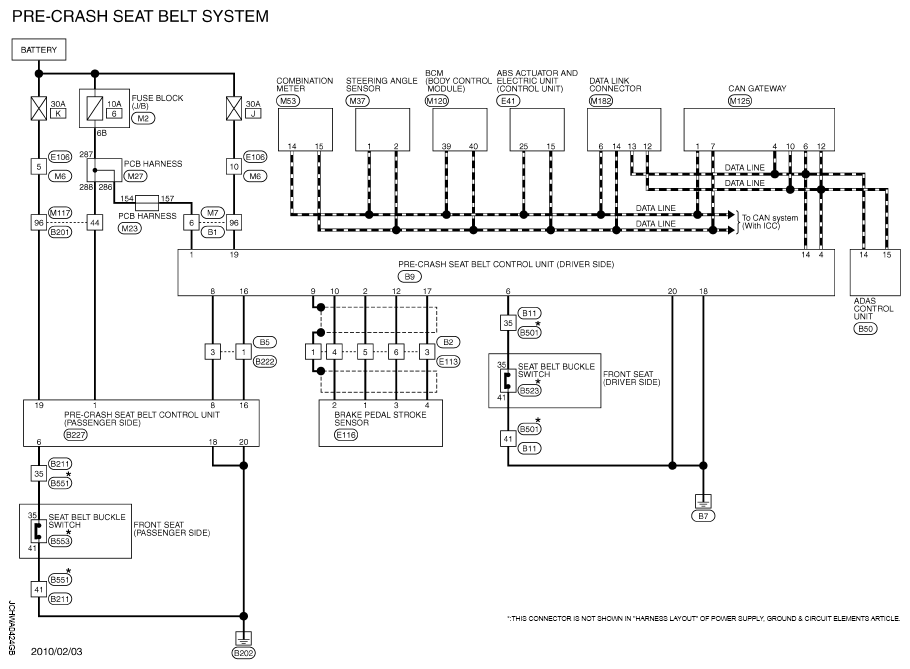

Fig 1: Pre-Crash Seat Belt System Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.
