System - Engine Mechanical & Other

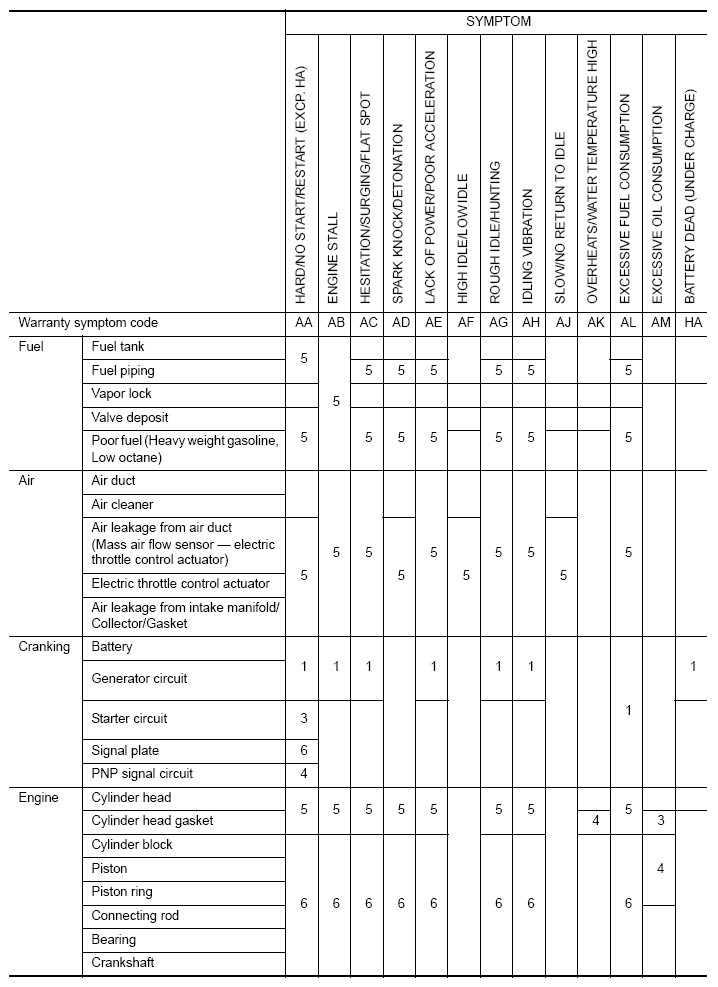

Fig 1: Engine Control System Symptoms Chart (Mechanical And Other; 1 Of 2)
G08896929Courtesy of NISSAN NORTH AMERICA, INC.

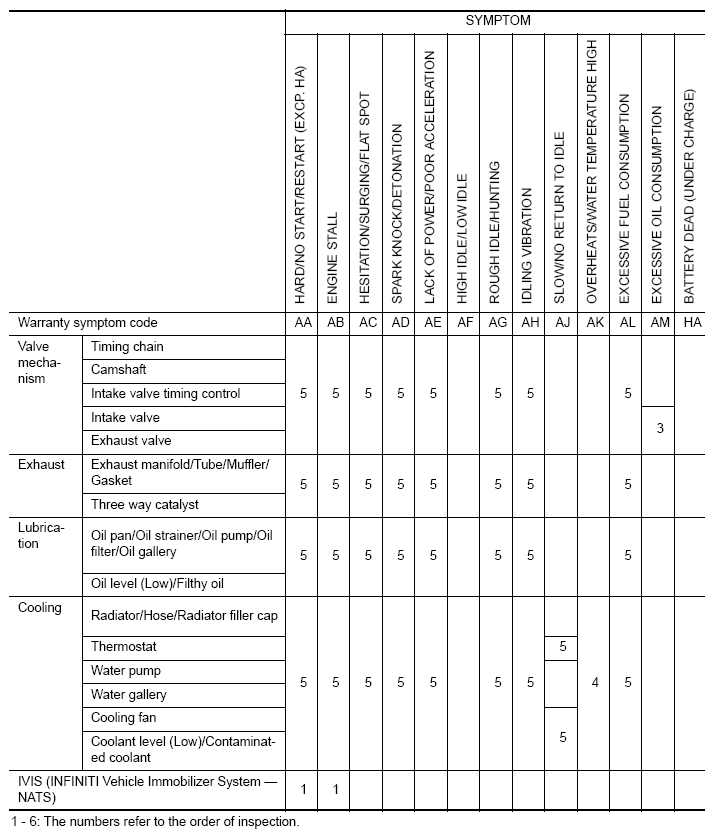

Fig 2: Engine Control System Symptoms Chart (Mechanical And Other; 2 Of 2)
G08896930Courtesy of NISSAN NORTH AMERICA, INC.
