Basic Inspection
>>
Diagnosis And Repair Work Flow
>>
Work Flow (With GR8-1200 NI)
>>
Overall Sequence
Overall Sequence

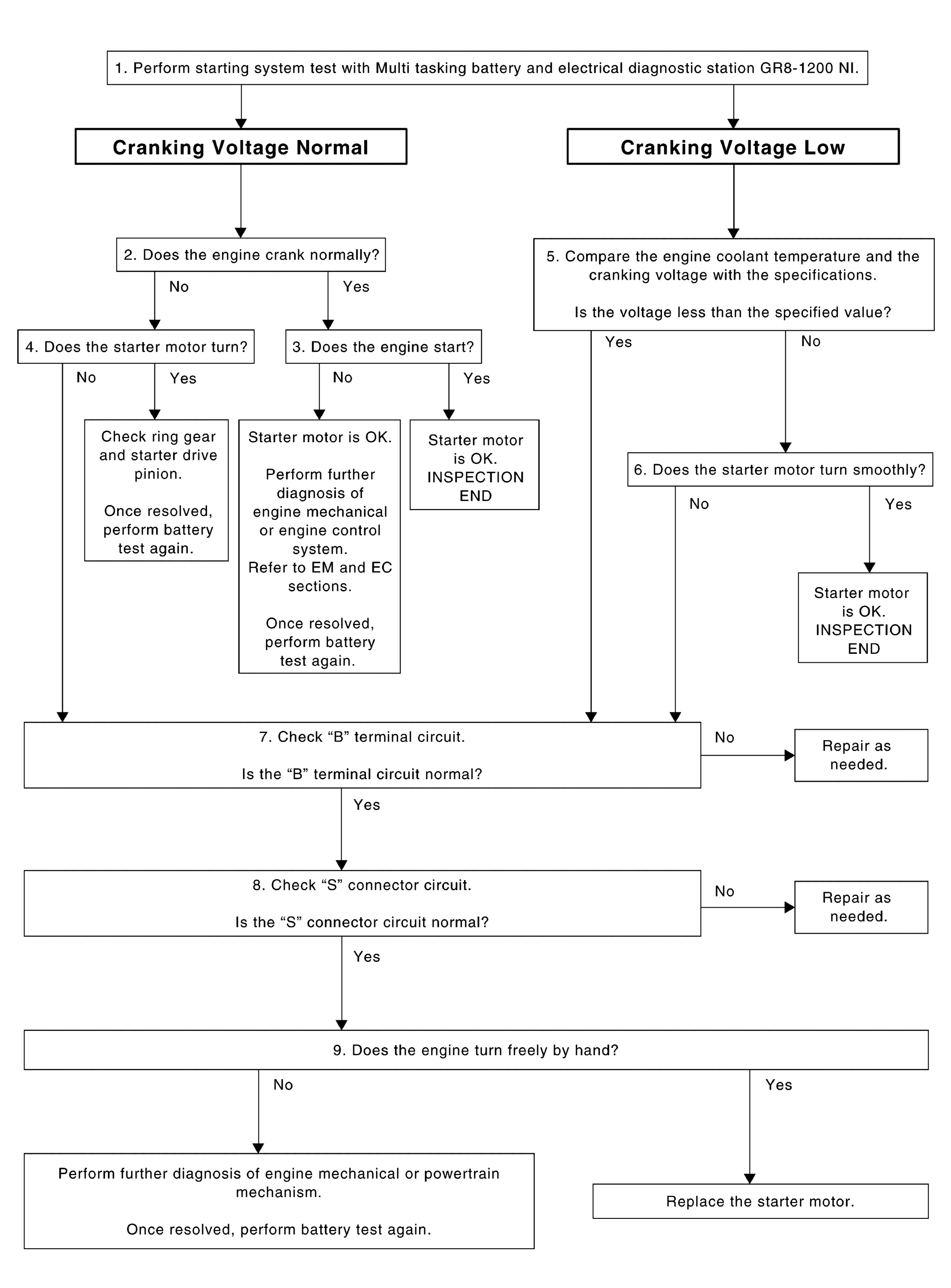

Fig 1: Diagnosis And Repair Work Flow Chart (With GR8-1200 NI)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
