System Description
>>
System
>>
System Diagram
System Diagram

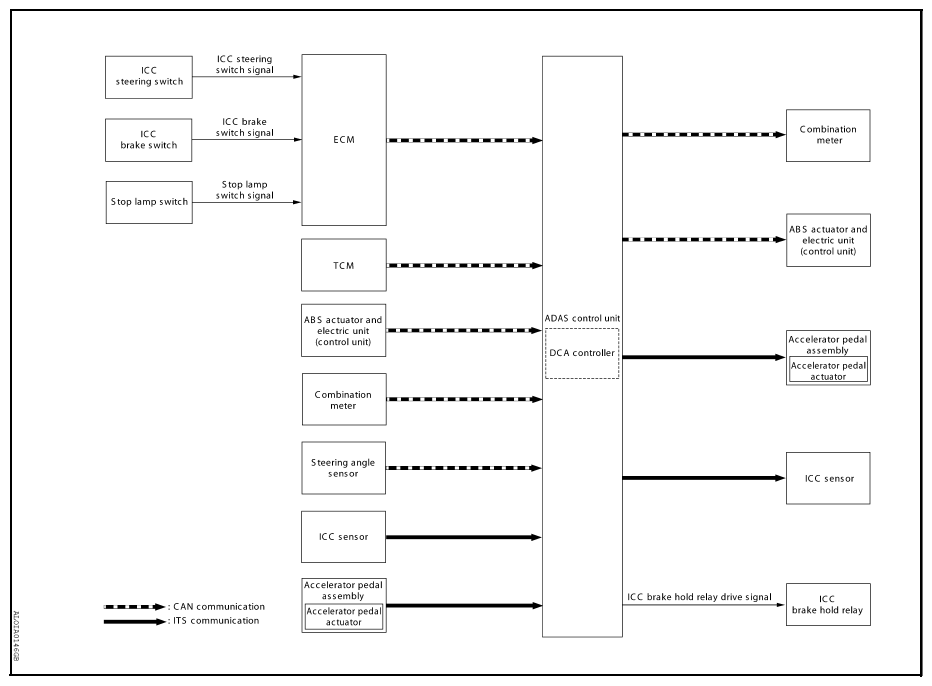

Fig 1: ADAS Control Unit System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
