Intelligent Cruise Control System (ICC)
>>
System Description
>>
System
>>
Circuit Diagram
Circuit Diagram

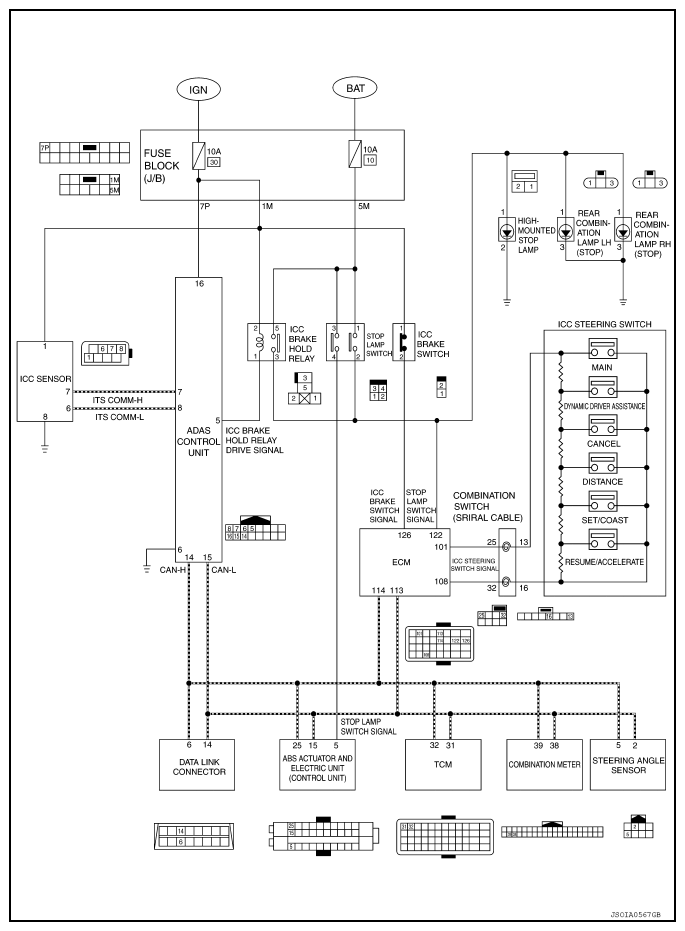

Fig 1: Cruise Control System (ICC) Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
