Setting The ICC Target Board: Description

Accurate adjustment of the radar alignment requires that the ICC target board be accurately positioned.

CAUTION: If the radar alignment is adjusted with the ICC target board in the incorrect position, the ICC system will not function properly or the alignment procedure may not be completed successfully.

ICC TARGET BOARD FINAL SETTING
1. With the ICC target board arm extended, the laser beam (1) emitted by the laser assembly (A) will be reflected back (B) toward the laser assembly.
  NOTE: When adjusted properly, reflected laser beam (B) must align with emitted laser beam (A) and the two laser beams will be seen as one.

  Fig 1: Identifying Laser Beam Path
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Rotate the ICC target board to achieve the necessary horizontal adjustment.
3. Adjust the ICC target board leveling screws to achieve the necessary vertical adjustment.
4. The figure shown illustrates the laser beam (A) emitted by the laser assembly (1) and its reflection (B) off of the ICC target board arm.

  Fig 2: Illustration Of Laser Beam And Reflection
  Courtesy of NISSAN NORTH AMERICA, INC.

  : GO TO 2.
CHECK THE POSITION OF THE ICC TARGET BOARD
Do not place anything other than the ICC target board in the space shown in front of the vehicle (view from top).

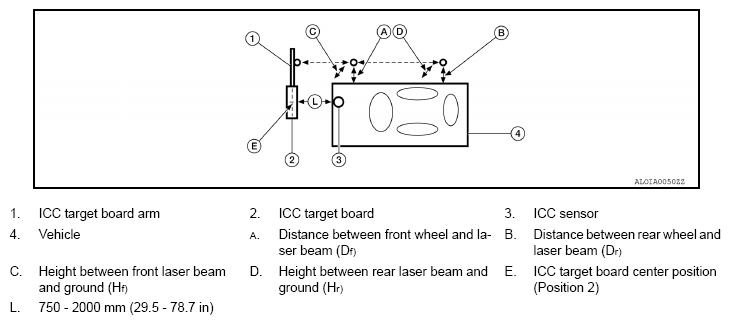

Fig 3: Identifying ICC Target Board Position
Courtesy of NISSAN NORTH AMERICA, INC.

: Refer to "ICC SENSOR ADJUSTMENT ".
