System Application

BCM can perform the following functions.

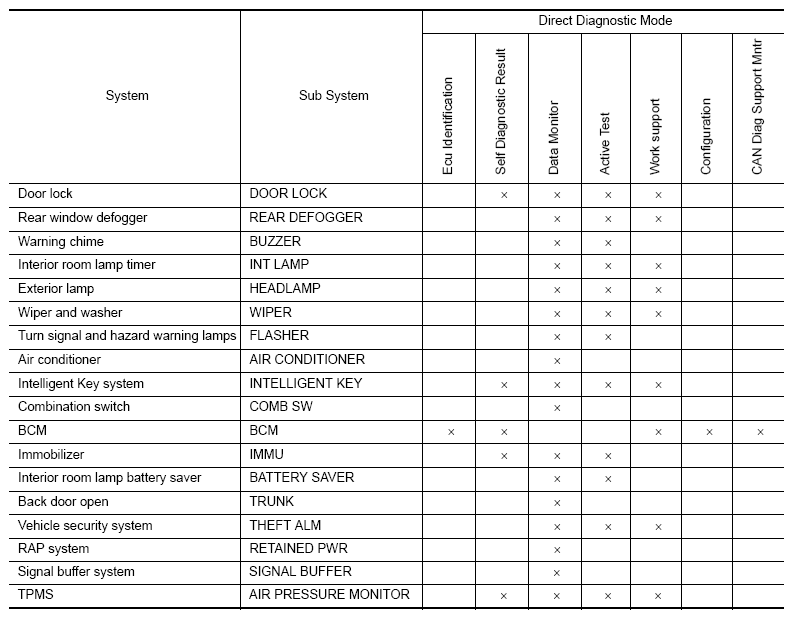

Fig 1: BCM Function Chart

G08857269

Courtesy of NISSAN NORTH AMERICA, INC.
